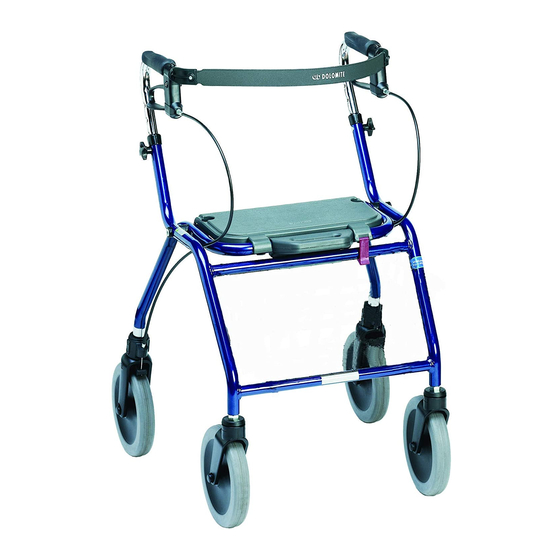

Dolomite Legacy User Manual

dolomite lEGACY, OPAl 2000, MAXI

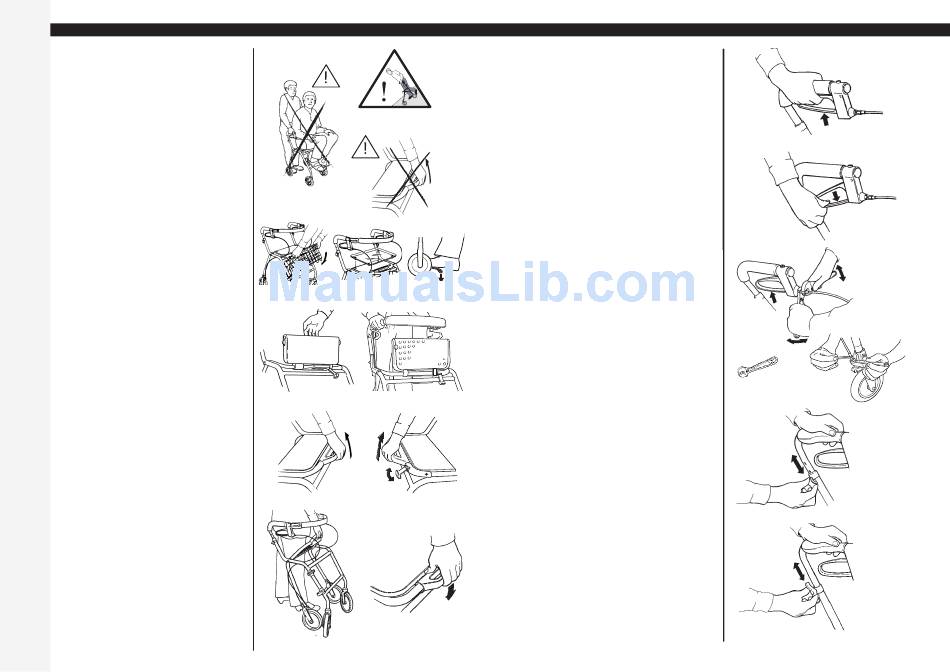

sAFeTy
- Do not use as a wheelchair or transport chair.
- Do not under any circumstances stand on
the walker.
- Use seat for stationary seating only. Never
sit and push with your feet.
- Never lift the walker in the folding handle
when it is in use
- Do not go up or down stairs or use on escalator.
- Both brakes must be in the parking position
when the walker is used as a seat.
- The walker must be fully unfolded
when used as walking support. N.B. The walker
may only be used as a walking support.
- Be extra careful when using the walker on
a sloping surface.
- Be extra careful when carrying heavy
loads in the basket. Loads may only be carried
in the basket or on the tray. Max load on
tray 11 lbs. (5 kg).
ACCessOrIes
A) Mounting of basket.
B) secure the tray using the plastic plugs.
C) Cerb climber
FOLDING seAT
The seat can be folded up to provide a larger
walking space and in order to increase acces-
sibility.
FOLDING
A) dolomite lEGACY
To fold, lift up handle.
B) dolomite OPAl 2000, MAXI
1. Lift up the safety latch.
2. Lift the handle to fold the walker.
C) When folded, the walker is easy to lift
and carry.
OPerATING POsITION
To reset to walking position, press firmly down-
wards on the seat until a clicking sound is heard.
2
B C
A
2
1
B
A
C
dolomite lEGACY, OPAl 2000, MAXI
BrAkes
Apply the brakes by pulling both brake-
handles upwards.

PArkING BrAke

Press down carefully for parking brake. A clear
sound is heard when the brake is placed in cor-
rect position. N.b. Always place both brakes
in parking position. Pull upwards to loosen the
brake.
Both brakes must be in the parking position
when the walker is used as a seat.
ADJUsTMeNT OF BrAke
eFFeCT
For desirable braking strength, adjust the brake
wire.
suitable tools 1x8 mm and 1x10 mm spanner
(not included).
HANDLeBArs
To adjust the handle to a suitable height, stand
behind the walker with shoulders level. The
handles should be at the same height as the
user's wrist. A therapist may suggest different
handle heights to accomodate the special needs
of a user.
dolomite lEGACY, OPAl 2000
For adjustment of handles with holes:
Loosen the knob completely, remove the screw.
Adjust the handle to suitable height. Fix the
screw into the hexagonal hole and fasten the
knob properly.
dolomite MAXI
For steples adjustment:
Loosen the wring, adjust the handle to suitable
height and tighten the wring properly.
