  • Page 1 TG DASH User manual...

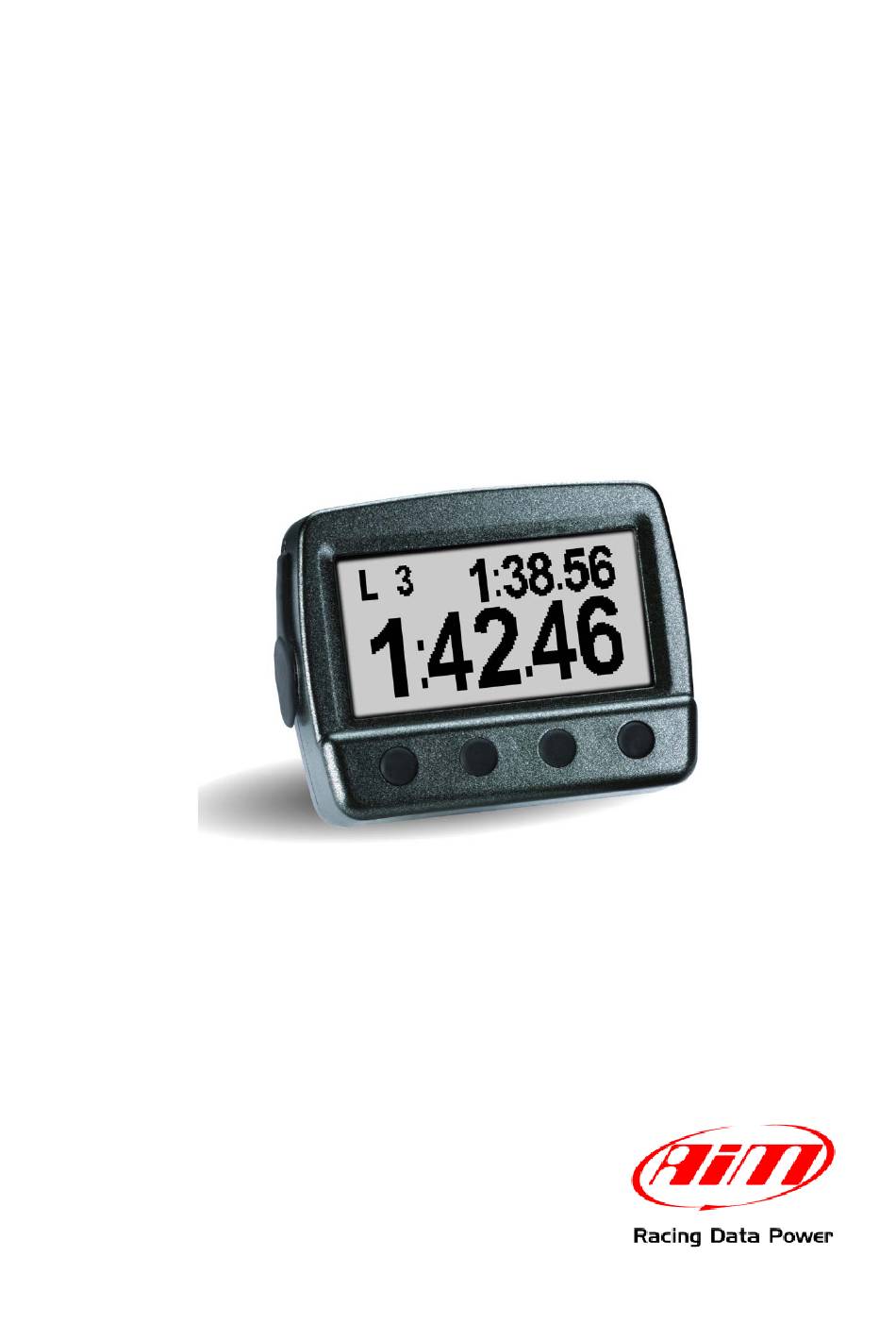

  • Page 2 Moreover TG Dash is configurable thanks to Race Studio 2, the software freely downloadable from www.aim-sportline.com area download, software. TG Dash is the visor with back lighted display that allows to visualize all data sampled by EVO3 Pro/Pista and EVO4. www.aim-sportline.com...

  • Page 3: Table Of Contents

    INDEX Chapter 1 – TG Dash ..................... 3     1.1 – Part number ..........................3 Chapter 2 – Connecting TG Dash to EVO ..............4     2.1 – Connection with EVO3 Pro ...................... 4   2.2 – Connection with EVO3 Pista/EVO4 ..................4  ...

  • Page 4: Chapter 1 - Tg Dash

    This display is equipped with an easy and intuitive Menu with different setting and view options. Thanks to TG Dash it will be possible to instantaneously visualize: • Lap time and running lap number; • Speed and digital RPM value;...

  • Page 5: Chapter 2 - Connecting Tg Dash To Evo

    TG Dash can be connected to EVO3 Pro/Pista as well as to EVO4. 2.1 – Connection with EVO3 Pro To connect TG Dash to EVO3 Pro use the cable labelled EXP of the logger 22 pins Deutsch connector harness (optional).

  • Page 6: Chapter 3 - Menu Functions

    Release 1.04 Chapter 3 – Menu Functions TG Dash for EVO3 Pro/Pista and EVO4 (from here onward EVO) has been designed to satisfy any pilot need. It is equipped with an easy and intuitive menu, that can be managed with only four buttons.

  • Page 7: Split

    TG Dash User Manual Release 1.04 3.1.2 – Split Once entered this sub-menu it is possible to set different split visualization modes as shown here below: Please note: not all options are available for all loggers as specified below. None: no split but only lap time is shown .

  • Page 8: Display Setup

    Release 1.04 3.1.3 – Display setup In Display Setup sub-menu it is possible to set TG Dash display graphics. Reverse: this function allows to reverse display colours from positive to negative. Normally the display shows black characters on a white background. Press “OK” to enable reversion.

  • Page 9: System Information

    Dashboard mode (see below). Accepted values are from 3 to 60 seconds. To set this function press ”DEC-“ and “INC+” buttons and then “OK.” 3.1.4 – System information This function shows the information concerning the logger: • Logger name (TG DASH) • Firmware version (21.10) • Logger serial number (0001500114). www.aim-sportline.com...

  • Page 10: Gps Lap Timer Setting (Evo, Evo3+External Gps)

    Release 1.04 3.2 – GPS Lap timer setting (EVO, EVO3+External GPS) TG Dash allows to use the GPS integrated in EVO4 or an external GPS Module connected to EVO3 Pro/Pista to sample lap time with no need of optical receiver and transmitter.
  • Page 11 The display shows as many split to set as many have been set less 1: the last one is start finish line set before. At the end of the procedure TG Dash shows this screen. The message “GPS MARKER END”...

  • Page 12: Chapter 4 - On Track Visualization

    TG Dash User Manual Release 1.04 Chapter 4 – On track visualization Through the visualization of track data it is possible to keep always under control engine and driving performances. Few seconds after logger switch up it is possible to see three pages in loop pressing “VIEW”...

  • Page 13: Chapter 5 - Data Recall

    TG Dash User Manual Release 1.04 Chapter 5 – Data recall To recall stored data press MEM button. The display shows best lap time page with best lap time full screen, best written top on the right and session (marked R=Run) and lap (marked L=Lap) number top on the left, as shown here below.

  • Page 14: Chapter 6 - Configuring Tg Dash For Evo

    • Select the logger: EVO3 Pro/Pista or EVO4 on the vertical keyboard; • Press “Go to”; • Select “Display” layer and choose “TG Dash” in the “Available displays” drop down menu as shown here below. • Select “System Configuration Layer”.
  • Page 15 TG Dash User Manual Release 1.04 In case of an EVO3 Pro this window appears. In case of an EVO4 this window appears. Filling in “Lap” and “Rpm” panel, highlighted in all the images above, it is possible to configure: •...

  • Page 16: Appendix - Technical Drawings

    Data / Date Progettato da / Designed by Contr. da / Ckd. by Scala / Scale D.B. Titolo / Title Collegamento TG Dash EVO3 Pro N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 1 of 1 Racing Data Power...
  • Page 17 Progettato da / Designed by Contr. da / Ckd. by Scala / Scale D.B. Titolo / Title Collegamento EVO3 Pro - TG Dash - Data Hub N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 1 of 1 Racing Data Power www.aim-sportline.com...
  • Page 18 User Manual Release 1.04 N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by EVO3 Pista - TG Dash connection TG Dash Cable code 04.555.11 Binder 712 female connector pinout Pin Binder...
  • Page 19 User Manual Release 1.04 N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by EVO3 Pista - TG Dash - Data Hub connection TG Dash Cable code 04.555.11 AIM External expansion modules...
  • Page 20 User Manual Release 1.04 N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by EVO4 - TG Dash connection TG Dash Cable code 04.555.11 Pinout of Binder 712 female connector - labelled EXP.
  • Page 21 User Manual Release 1.04 N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by EVO4 - TG Dash - Data Hub connection TG Dash Cable code 04.555.11 AIM External expansion modules Pinout of Binder 712 female connector - labelled EXP.
