SOMFY Altus Quick Reference Manual

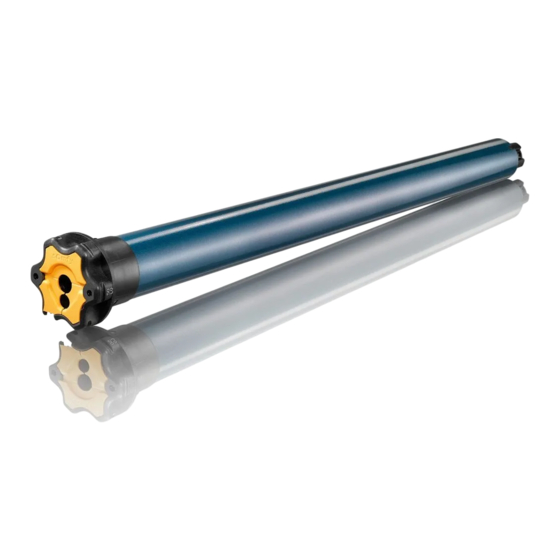

Altus RTS Motor
Change the Direction
Connect AC to one motor at a time. You must reset an already programmed
motor before you can change the direction (see below). Once reset, press and hold
the Up and Down buttons simultaneously until the motor jogs, then release. Press
the Stop button for more than 5 seconds until the motor jogs, then release. Check
the direction. You will have to set new limits and reprogram. See "Initial
Programming".
Resetting the Limits
To change the lower limit: Move the motor to its current lower limit position and
let it stop. Press the Up and Down buttons simultaneously until the motor jogs,
then release. Adjust to a new lower limit position. Press the Stop until the motor
jogs, then release. Check it.
To change the upper limit: Move the motor to its current upper limit position and
let it stop. Press the Up and Down buttons simultaneously until the motor jogs,
then release. Adjust to a new upper limit position. Press the Stop until the motor
jogs, then release. Check it.
Add/Delete a Transmitter/Channel, Replacing a Lost transmitter
add
To a transmitter/channel, press the programming button on an already
recorded one until the motor jogs. Select the transmitter/channel to add and press
its programming button until it jogs, then release. Check it.
delete
To a transmitter/channel, press the programming button on an already
recorded one until the motor jogs. Select the transmitter/channel to delete and press
its programming button until it jogs, then release. Check it.
If a transmitter is
transmitter/channel to add. Press the programming button until the motor jogs
once, then release. The previous limits should not be affected. Check it.
Setting a new Intermediate or Deleting one
Adjust to a new intermediate position and press Stop. Press the Stop again until
the motors jogs, then release. Check it (to access the intermediate position press
the Stop button while the motor is at rest).
To delete, access the current intermediate location and press Stop. Press the Stop
again for 5 seconds until the motor jogs, then release. It is now deleted.
Resetting the Motor
Dual power cut: Disconnect AC power for 2 seconds, reconnect for 10 seconds,
disconnect for another 2 seconds and reconnect. The motor rotates in one direction
and stops on its own.
Resetting to factory mode. When the motor stops, press and hold the
programming button 10 seconds on any transmitter until it jogs twice, then release.
There is a pause between the jogs. Do not release the program button until the
second jog is complete or you will have to start from the dual power cut again.
Important: This is a quick reference guide not meant to replace the formal instructions. Please read the
formal instructions for complete information on this motor before using this guide.
(Modification programming)
lost
, perform the dual power cut (see below).
(Quick Reference Guide)
Select a
7.8.02fz
