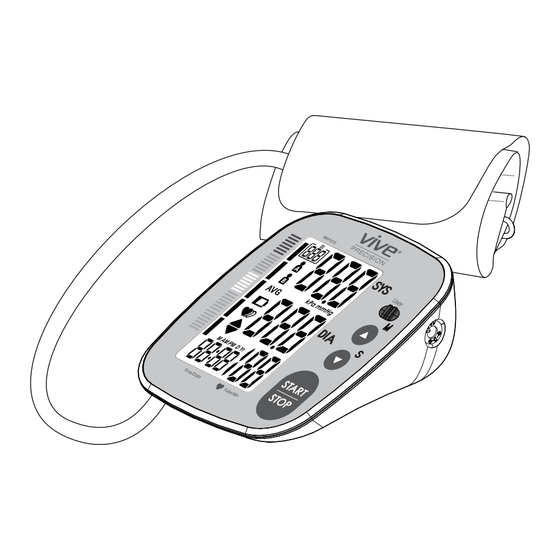

The Vive Precision blood pressure monitor is a portable device that
allows you to accurately track blood pressure from the comfort of home.
Device is individually tested for superior accuracy, and has a built in
alarm function to alert you of irregular heartbeats. Features a two-user
functionality and a 500-combined measurement memory. Protected
by a two-year warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMD1001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vive DMD1001

Summary of Contents for Vive DMD1001

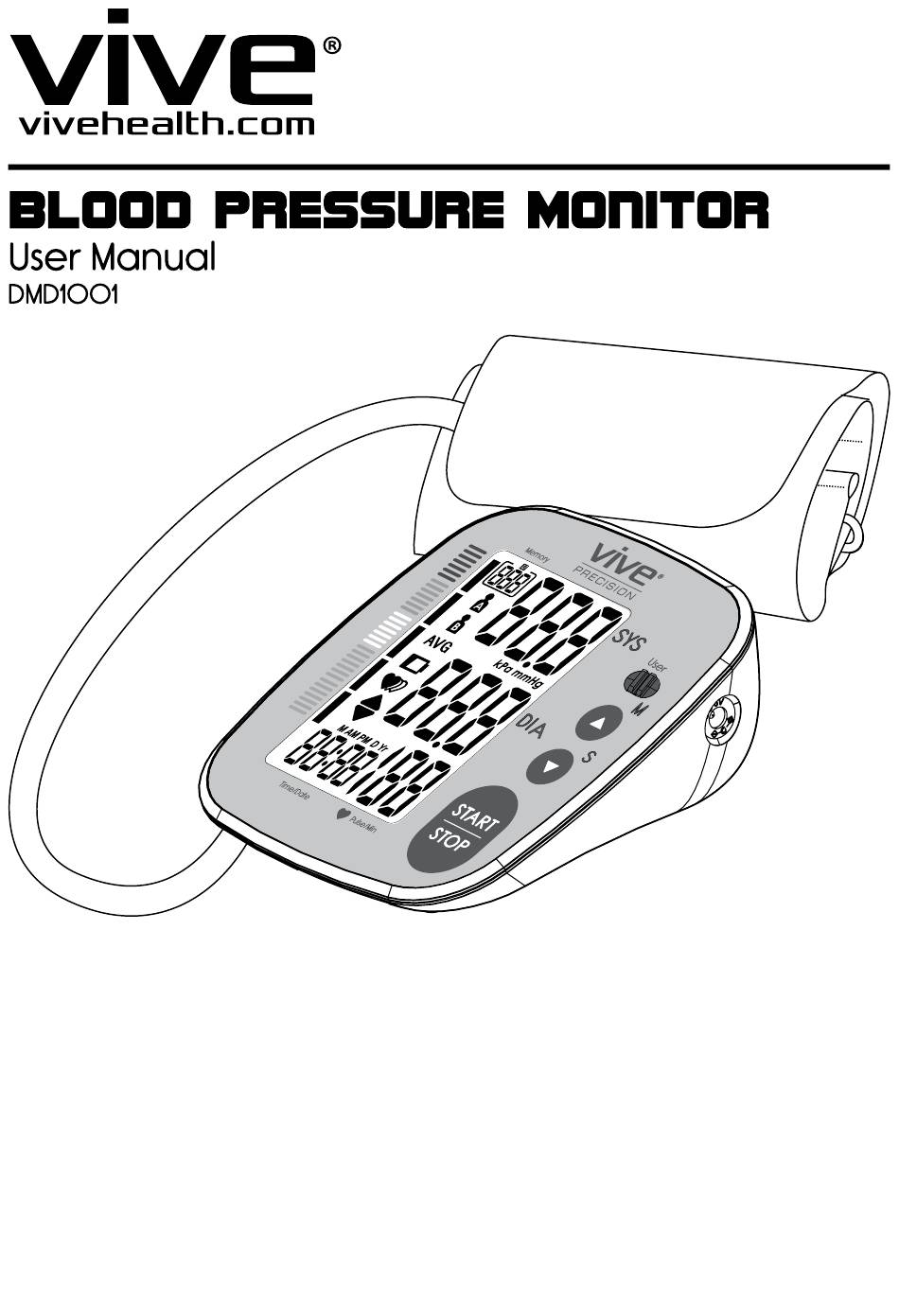

  • Page 1 The Vive Precision blood pressure monitor is a portable device that allows you to accurately track blood pressure from the comfort of home. Device is individually tested for superior accuracy, and has a built in alarm function to alert you of irregular heartbeats. Features a two-user functionality and a 500-combined measurement memory.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction General Description Safety Information LCD Display Signal Monitor Components Before You Start The Choice of Power Supply Installing and Replacing the Batteries Measurement Principle Setting Date, Time and Measurement Unit Measurement Applying the Cuff Start the Measurement Data Management Recall the Records Delete the Records...

  • Page 3: Introduction

    Symbol for “MANUFACTURE provides you with two years of DATE” reliable service. Readings taken by the DMD1001 Symbol for “TYPE BF APPLIED are equivalent to those obtained PARTS” by a trained observer using cuff stethoscope Symbol for “ENVIRONMENT auscultation method.
  • Page 4 CAUTION flammable anesthetic mixture • This device is intended for adult with air of with oxygen or nitrous use only. oxide. • This device is intended for • The operator shall not touch non-invasive measuring output of batteries and the monitoring of arterial blood patient simultaneously.
  • Page 5 and lifetime of the device will be measurements; The application impacted and reduced. of the cuff and its pressurization • During using, patient on any arm where intravascular will contact with the cuff. The access or therapy, or an arterio- materials of the cuff have been venous (A-V) shunt, is present;...
  • Page 6 • The patient is an intended operator. patient measure under normal circumstances maintain the device and its accessories according to the user manual. • The blood pressure monitor, and the cuff are suitable for use within the patient environment. If you are allergic to dacron or plastic, please don’t use this device.

  • Page 7: Lcd Display Signal

    LCD Display Signal SYMBOL DESCRIPTION EXPLANATION Systolic blood pressure High pressure result Diastolic blood pressure Low pressure result Pulse per minute Beats per minute, BPM Pulse/Min Deflatin UFF air is exhausting of deflating The displayed measurement values Memory is from the memory. Measurement Unit of the blood pressure mmHg mmHg...

  • Page 8: Monitor Components

    2. AC adaptor powered mode: 2. Air pipe 6V 1A 3. PCBA (Please use the recommended 4. Pump AC adaptor model). 5. Valve (Not Included) What’s Included *Please unplug the adaptor 1. Blood Pressure Monitor when not in use. (DMD1001) AC adaptor...

  • Page 9: Installing And Replacing The Batteries

    CAUTION • Remove the old batteries from In order to get the best effect the device and follow your local and protect your monitor, please recycling guidelines. use the right battery and special • Do not dispose of batteries in power adapter which complies fire.
  • Page 10 be assigned to each record that 3. When you get the right year, is stored in the memory. (The press “S” button to set down and setting range of the year: 2014— turn to next step. 2054 time format: 12H/24H) 1.

  • Page 11: Measurement

    MEASUREMENT 6. Repeat step 2 and 3 to set the [HOUR] and [MINUTE]. Applying the Cuff 1. Attach the cuff tubing to the left side input for proper use. 2. Apply the cuff on your upper arm. Make sure the position of the tube is off-center;...

  • Page 12: Start The Measurement

    uncrossed, feet flat on the floor, back and arm supported. Follow these steps for accurate results: • Resting For 5 minutes before • Wait at least 3 minutes between measurements. This allows your blood circulation to recover. • For a meaningful comparison, try to measure under similar conditions.

  • Page 13: Data Management

    Display and save the results. 2. Press “M” button or “S” button to get the record you want. Press and hold “M” button to look over ten groups of the historical records quickly. 2. Press the “START/STOP” to power off, otherwise it will turn off within 1 minute.

  • Page 14: Delete The Records

    3. If you want to look over another user’s data, switch the User button to select the desired user. Then you can look over its historical records. CAUTION The most recent record (1) is shown first. Each new measurement is 3.

  • Page 15: Maintenances

    Maintenance What is the standard blood order best pressure classification? performance, please follow the The chart below is the standard instructions below. blood pressure classification published by American Heart CAUTION Association (AHA). If you have any problems with this device, such as setting up, AHA Home Guideline for Upper maintaining using,...

  • Page 16: Why Does My Blood Pressure Fluctuate Throughout The Day

    CAUTION Why does my blood pressure fluctuate throughout the day? Only a physician can tell your normal BP range. Please contact 1. Individual blood pressure can a physician if your measuring change on a daily basis. It is also result falls out of the range. Kindly affected by the way you apply note that only a physician could the cuff and the measurement...

  • Page 17: Can You Take Measurement From Both Arms

    Can you take measurement from both arms? You may choose to measure both arms and then average the two readings to get your blood pressure result. The norm is to measure the left arm closest to your heart. For accuracy use the same method each time.

  • Page 18: Troubleshooting

    TROUBLESHOOTING This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the products not operating as you think it should, check here before arranging for servicing. PROBLEM SYMPTOM CHECK THIS REMEDY...

  • Page 19: Specifications

    SPECIFICATIONS Battery powered mode: AC adaptor powered mode: Power supply (Please only use the recommended AC adaptor model).(Not Included) Display mode Measurement mode Oscillographic testing mode Rated cuff pressure: 0kPa - 40kPa (0mmHg~300mmHg) Measurement range Measurement pressure: 5.3kPa-30.7kPa (40mmHg-230mmHg) pulse value: (40-199) beat/minute Pressure: Accuracy 5 -40 within±0.4kPa(3mmHg)

  • Page 20: Authorized Component

    AUTHORIZED COMPONENT Use the Vive® authorized adaptor. (Not Included) Adaptor Type: UE08WCP-060100SPA Input: 100~240V, 50~60Hz,400mA Output: 6V (Conforms to UL certificate) COMPILED STANDARDS LIST ISO/EN 14971:2012 Medical devices — Application of risk Risk management management to medical devices Labeling ISO/EN 15223-1:2012 Medical devices. Symbols to be used with medical device labels, labelling and information to be supplied.

  • Page 21: Fcc Statement

    2 W yields d=3, 3m at an IMMUNITY LEVEL of 3V/m) © Copyright and Distributed by Vive Health 5650 Yahl Street Unit 1, Naples, FL 34109 All Rights Reserved. Made in China. Email: service@vivehealth.com...
