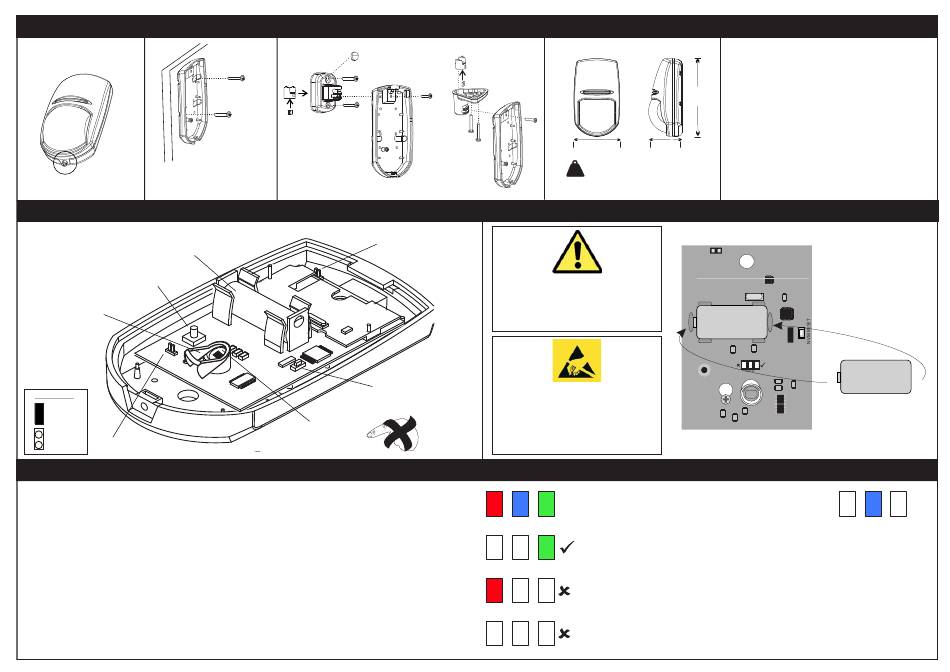

Installation Wall Mounting
CASE LID
SCREW FITTING
NOTE: When mounting the
detector, ensure that it is
not tilting backwards.
The KX12DW-WE Printed Circuit Board
Battery
Tamper Spring
Pet mirror must
not be removed
DIGITAL SIGNAL
PROCESSING SELECT
SENSITIVITY
Header On
= HIGH)
Header Off
Sensitivity Settings
= LOW
Learning the KX12DW-WE onto the Enforcer Control Panel
When you are ready to learn the device to the
control panel receiving equipment, and when the
equipment is in the learn mode (see Enforcer
Programming Manual) follow the procedure
below.
1. Make sure the battery is installed correctly
and the plastic wrapping removed.
2. Press and Hold the Learn button until the
3 LEDs start cycling through the different
colours, then release the Learn button.
3. The device is correctly learnt when the
Green LED flashes.
Optional Bracket Fitting
Wall
Part number: FPKXBRACKET
Header for Rear Tamper
+
-
Learn Button
Piro Sensor
DO NOT TOUCH
The three coloured LEDs give a
visual indication of the signal
strength.
Green indicates good signal strength
and is a good location to install.
Red indicates poor signal
strength and the device should not
be installed in that position.
If no LED illuminates then the device
is completely out of range.
Dimensions
Ceiling
3mm
(0.12")
69mm
(2.72")
Kg = 105g (3.4 oz) without bracket
The batteries supplied have been chosen to
provide long service life whilst, for safety
reasons, having limited output current.
Replace only with approved batteries.
To prevent possible damage to components,
any static charge on your body needs to be
eliminated before touching the inside of the
unit. This can be accomplished by touching
some grounded/earthed metallic conductor
such as a radiator/pipework immediately
before replacing the batteries.
RED BLUE GREEN
RED BLUE GREEN
RED BLUE GREEN
RED BLUE GREEN
Avoiding False Alarms
1. The detector will tolerate animals of up to
20kg when the height of the animal is less
than 1 metre.
2. Do not install the detector looking at stairs.
117mm
(4.61")
3. Avoid placing the detector in direct sunlight.
4. Do not mount the detector near heaters or
radiators.
50mm
(2.2")
5. Do not mount the detector near open
windows or air vents.
6. Mount the detector on a stable surface.
Changing The Battery
REAR TAMPER
CR123A
-
+
LITHIUM
BATTERY
The blue LED will illuminate
when the device is activated.
CR123A
-
+
LITHIUM
BATTERY
RED BLUE GREEN
RINS1421-1
