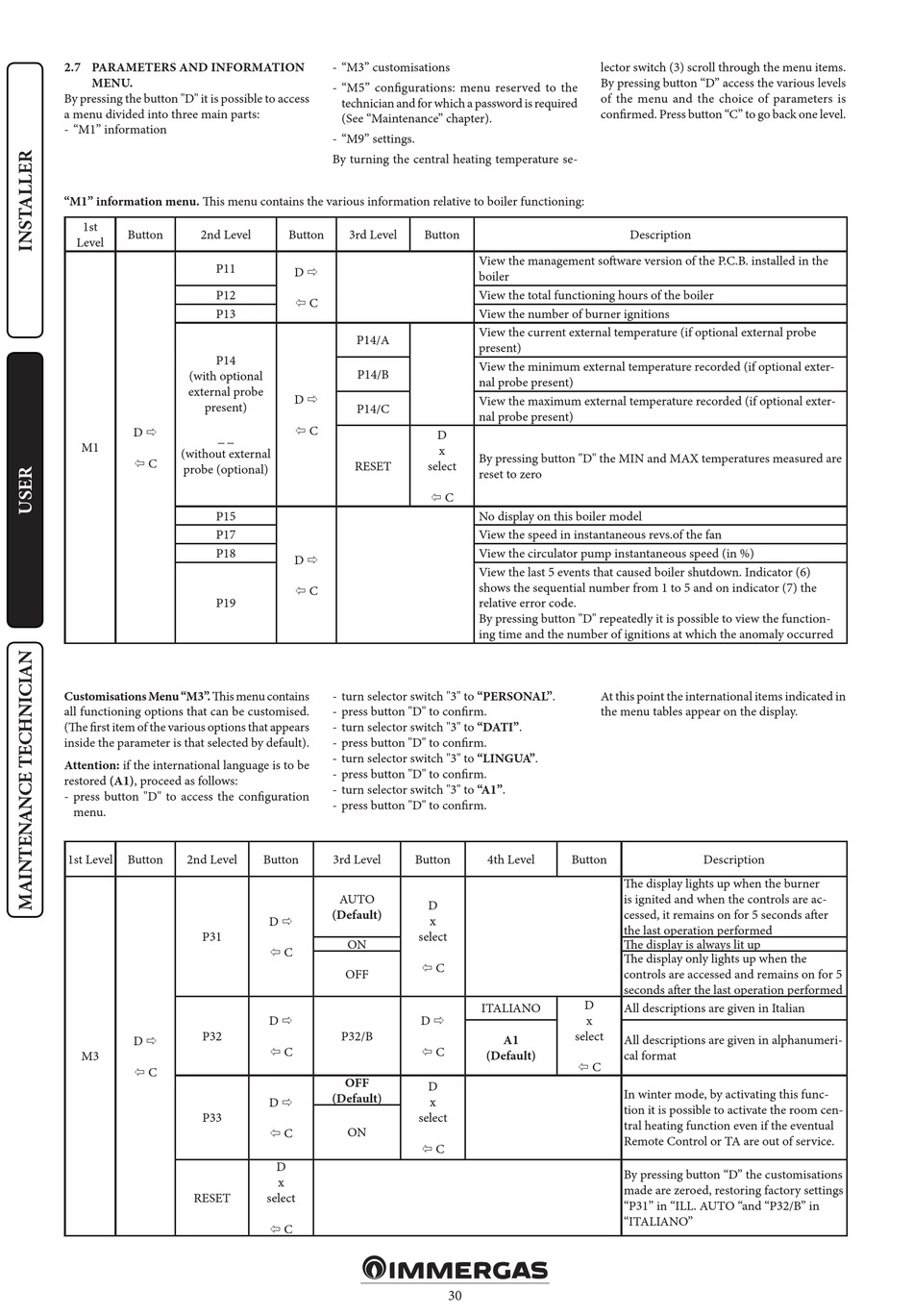

2.7 PARAMETERS AND INFORMATION
MENU.
By pressing the button "D" it is possible to access
a menu divided into three main parts:
- "M1" information
"M1" information menu. This menu contains the various information relative to boiler functioning:
1st
Button 2nd Level
Level
P11
P12
P13
P14
(with optional
external probe
present)
D 
_ _
M1
(without external
 C
probe (optional)
P15
P17
P18
P19
Customisations Menu "M3". This menu contains
all functioning options that can be customised.
(The first item of the various options that appears
inside the parameter is that selected by default).
Attention: if the international language is to be
restored (A1), proceed as follows:
- press button "D" to access the configuration
menu.
1st Level Button 2nd Level
P31
P32
D 
M3
 C
P33
RESET
- "M3" customisations
- "M5" configurations: menu reserved to the
technician and for which a password is required
(See "Maintenance" chapter).
- "M9" settings.
By turning the central heating temperature se-
Button 3rd Level Button
D 
 C
P14/A
P14/B
D 
P14/C
 C
RESET select
 C
D 
 C
- turn selector switch "3" to "PERSONAL".
- press button "D" to confirm.
- turn selector switch "3" to "DATI".
- press button "D" to confirm.
- turn selector switch "3" to "LINGUA".
- press button "D" to confirm.
- turn selector switch "3" to "A1".
- press button "D" to confirm.
Button 3rd Level Button
AUTO
D
(Default)
D  x
select
ON
 C
 C
OFF
D  D 
P32/B
 C  C
OFF
D
(Default)
D  x
select
ON
 C
 C
D
x
select
 C
lector switch (3) scroll through the menu items.
By pressing button "D" access the various levels
of the menu and the choice of parameters is
confirmed. Press button "C" to go back one level.
View the management software version of the P.C.B. installed in the
boiler
View the total functioning hours of the boiler
View the number of burner ignitions
View the current external temperature (if optional external probe
present)
View the minimum external temperature recorded (if optional exter-
nal probe present)
View the maximum external temperature recorded (if optional exter-
nal probe present)
D
x
By pressing button "D" the MIN and MAX temperatures measured are
reset to zero
No display on this boiler model
View the speed in instantaneous revs.of the fan
View the circulator pump instantaneous speed (in %)
View the last 5 events that caused boiler shutdown. Indicator (6)
shows the sequential number from 1 to 5 and on indicator (7) the
relative error code.
By pressing button "D" repeatedly it is possible to view the function-
ing time and the number of ignitions at which the anomaly occurred
At this point the international items indicated in
the menu tables appear on the display.
4th Level Button
D
ITALIANO
x
select
A1
(Default)
 C
30
Description
Description
The display lights up when the burner
is ignited and when the controls are ac-
cessed, it remains on for 5 seconds after
the last operation performed
The display is always lit up
The display only lights up when the
controls are accessed and remains on for 5
seconds after the last operation performed
All descriptions are given in Italian
All descriptions are given in alphanumeri-
cal format
In winter mode, by activating this func-
tion it is possible to activate the room cen-
tral heating function even if the eventual
Remote Control or TA are out of service.
By pressing button "D" the customisations
made are zeroed, restoring factory settings
"P31" in "ILL. AUTO "and "P32/B" in
"ITALIANO"
