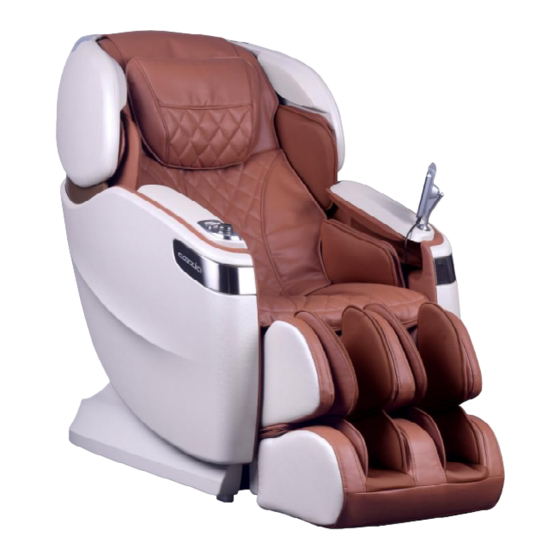

Cozzia CZ-710 Maintenance Service Manual
Hide thumbs
Also See for CZ-710:
- Maintenance service manual (4 pages) ,
- Installation manual (53 pages) ,
- User manual (45 pages)
Subscribe to Our Youtube Channel
Related Manuals for Cozzia CZ-710
Summary of Contents for Cozzia CZ-710

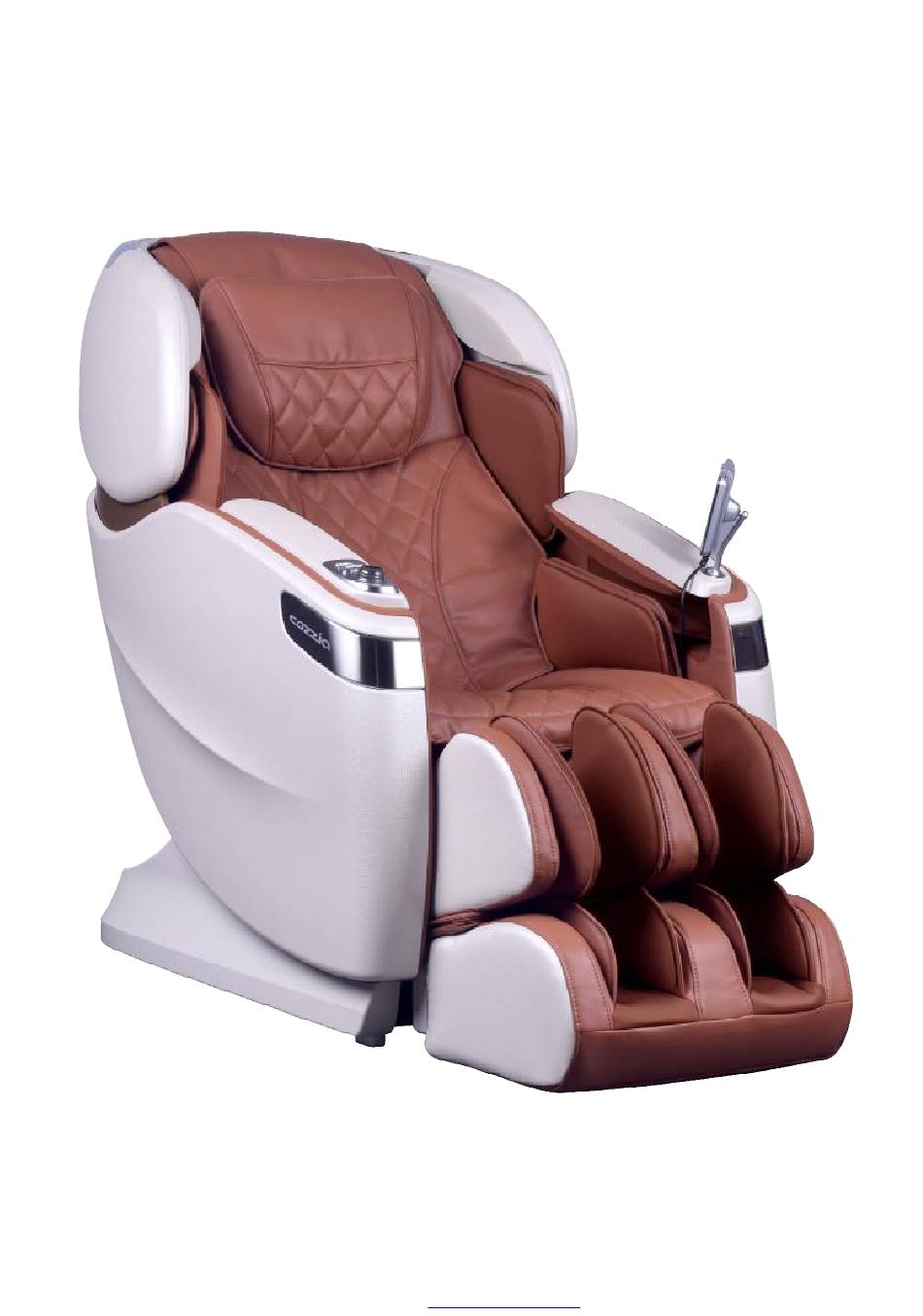

- Page 1 Maintenance Service Manual MODEL： CZ-710 By COZZIA Service Department PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
- Page 2 12: Disassembly of the massage mechanism. A: Hold the speaker unit with one hand, and push the decoration strip with another hand until it come out a little bit. Use the same way to make the other side of the decoration come out a little bit. Then the decoration strip can be taken away.
- Page 3 C: After take away both side covers of speaker unit. Then pull the rear cover with both hands. Then the rear cover can be taken away. And then you can find the Bluetooth PCB. Rear cover of speaker unit is fixed by six snap joints.
- Page 4 G: Locate the groove joint at the bottom of the side board. Pull the side board cover at the groove joint to detach side board cover. Locate the groove joint. Side board cover has been taken off. H: Remove the six cross recessed pan head screws and take off the decorative strip. Locate the six screws.
- Page 5 K: Slacken and remove the grounding wire screw to release the grounding wire. Then use diagonal cutter to get rid of the cable ties and disconnect the two connectors of massage mechanism wire harness. L: Locate two white metal plates on the upper part of the backrest frame. Slacken and remove the screws that fixing the metal plate.
