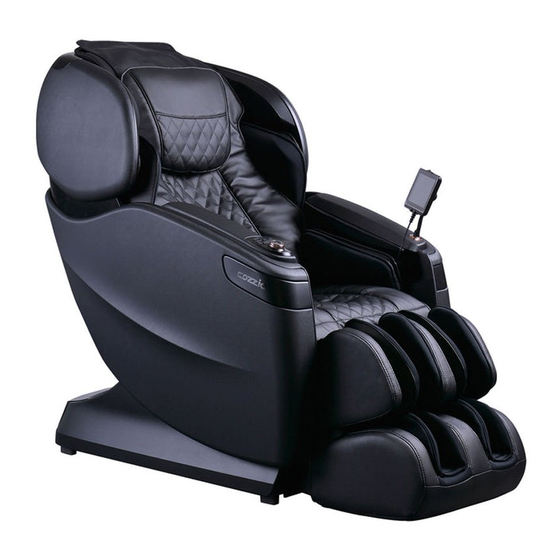

Cozzia CZ-710 Maintenance Service Manual
Hide thumbs
Also See for CZ-710:
- Maintenance service manual (5 pages) ,
- Installation manual (53 pages) ,
- User manual (45 pages)
Subscribe to Our Youtube Channel
Related Manuals for Cozzia CZ-710
Summary of Contents for Cozzia CZ-710

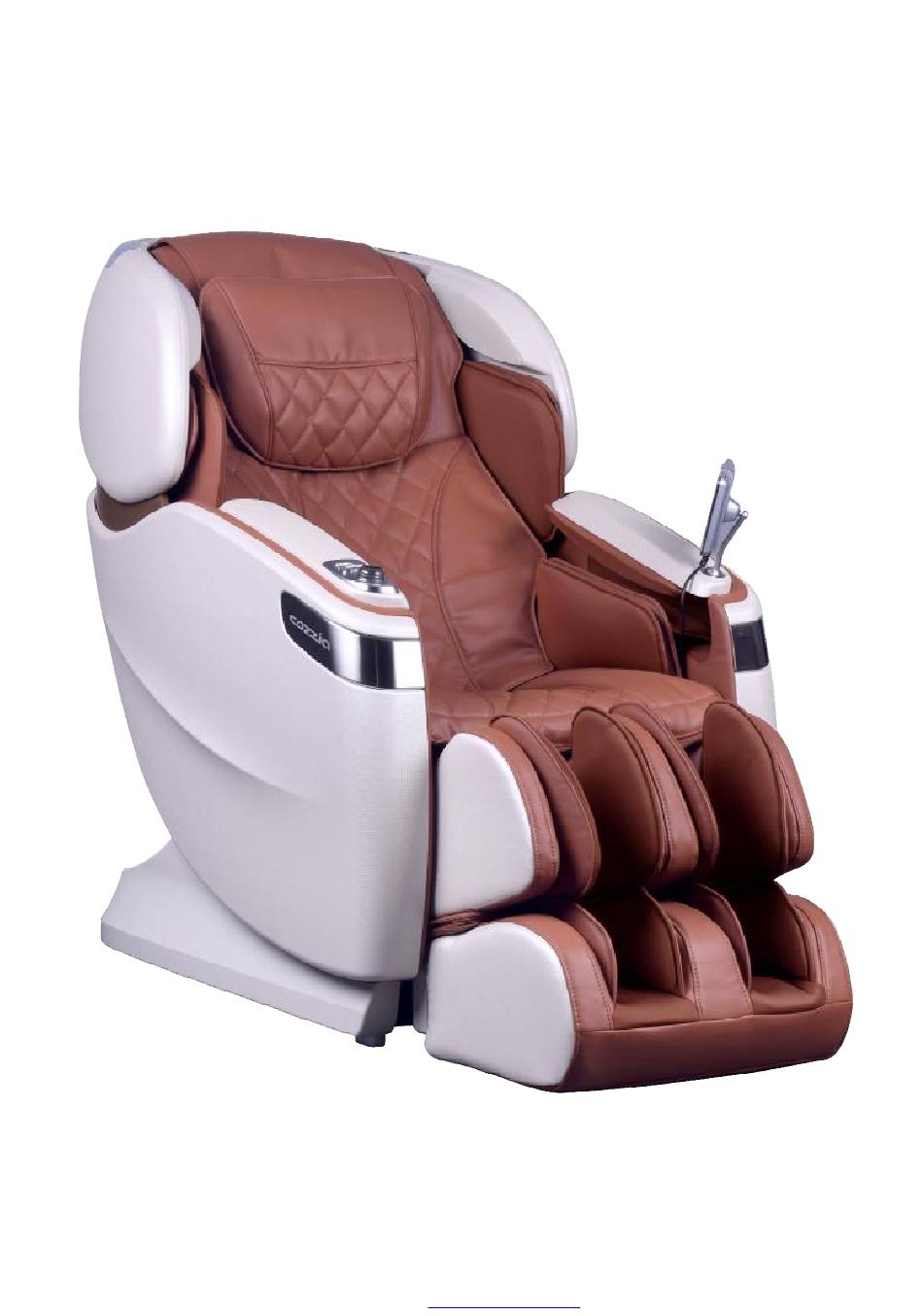

- Page 1 Maintenance Service Manual MODEL： CZ-710 By COZZIA Service Department PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn...
- Page 2 15. Disassembly of the footrest actuator. A: Take off the footrest assembly. ( Refer to 14. Disassembly of the footrest assembly.) B: Take off speaker unit. ( Refer to 2. Steps of service the speaker unit. ) C: Locate the groove joint at the bottom of the side board. Pull the side board cover at the groove joint to detach side board cover.
- Page 3 Locate the two screws. Locate the footrest actuator wire connectors. F: Get rid of the cable ties which fixing the footrest actuator wire connectors. Then is connect the connectors. Locate the two cable ties. Disconnect these two connectors. G: Remove the six screws which fixing the dam board of the base. Then remove the dam board. Locate the six screws.
- Page 4 H: Take off the cotter pins and screw bolts which fixing the footrest actuator. Then the footrest actuator can be take off. Locate the cotter pins and screw bolts. Footrest actuator has been taken off. 16. Disassembly of the Z-G actuator. A: Take off the footrest assembly.
