Madeli Estate B860-30-001 Series Specification & Installation Manual

Functional Elegance

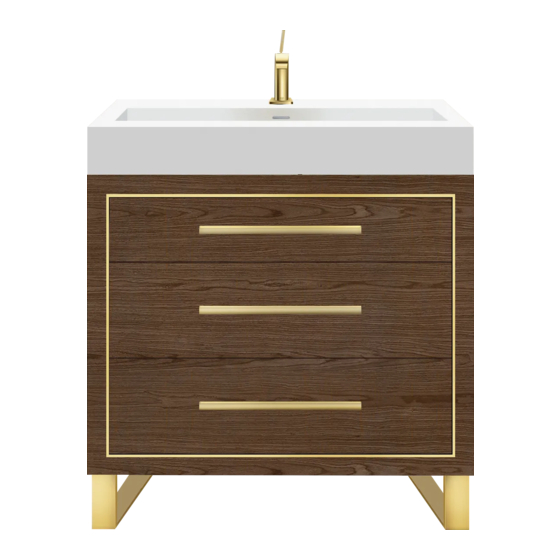

Estate - 30"

Features

• Free Standing 30" vanity: 33-1/2" (851mm)H x 22"(560mm)D x
29-5/8" (753mm)W
• Furniture grade plywood layered with solid wood veneer and
protected with several coats of polyurethane.
• Matching nish inside out.
• Three drawers with full-extension soft-close hardware.
• All drawers with adjustable glass dividers.
• Feet options: 4 L-feet, 2 S-feet or 1 C-base.
• Handle/Inlay nish options: polished chrome (PC), brushed nickel (BN),
polished nickel (PN), matte black (MB) and satin brass (SB)
• Cabinet furnished assembled. Feet/bases shipped separately.

Colors/Finishes

• Brandy (BR)
29-5/8"
(753mm)
• Matte White (MW)
• Sapphire (SA)
• Studio Grey (TG)
28-1/2"
(724mm)
5"
(127mm)
L-FEET
29-5/8"
(753mm)
28-1/2"
(724mm)
5"
(127mm)
C-BASE
For clari cation, please contact Madeli Customer Care at (800)-819-6988 or (305)-718-8817 Ext. 1 or service@madeli.com
All dimensions are approximate and subject to standard tolerance. Speci cations subject to change without prior notice.
22"
(560mm)
22"
(560mm)
Madeli, USA LLC | 9710 NW 110th Ave., Suite 1
Tel: 305-718-8817 | Fax: 305-718-8477
Speci cation & Installation Guide

Top/Basin options

• Glass countertop with above-counter ceramic basin.
• Glossy White X-Stone 2"H top/basin
• Glossy White X-Stone 4-1/2" H Trough sink
• X-Stone 3/4"H countertop no holes. To be eld drilled.
• X-Stone 3/4"H countertop with above-counter ceramic basin
• Quartzstone 3"H countertop with undermount ceramic basin

Package Dimensions

34" x 26" x 36"

Weight

130 lbs/59 kgs.
33-1/2"
(851mm)
28-1/2"
(724mm)
5"
(127mm)
S-FEET
33-1/2"
(851mm)
| Miami , FL 33178
| Toll Free: 1-800-819-6988
Model Number
B860-30-001-XX-XX
29-5/8"
(753mm)
| madeli.com
All Rights Reserved - 2019
22"
(560mm)
33-1/2"
(851mm)
01 | Page
Rev. 010119
