Madeli Soho B400-72D-001-XX Installation Manual

Functional Elegance

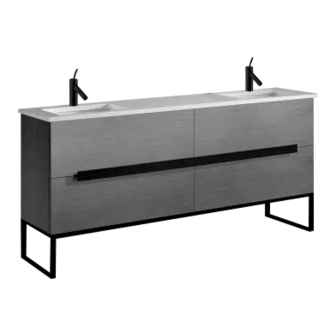

Soho - 72" Double Bowl
Features
• Free standing 72" Double Bowl Vanity : 33-1/2" (852mm)H x 18"(458mm)
D x 71" (1805mm)W
• Furniture grade plywood layered with solid wood veneer and protected
with several coats of polyurethane (No particle board or MDF used).
• Four fully adjustable drawers with full-extension soft-close European
hardware.
• Drawers includes adjustable tempered glass dividers and retainers.
• Handle option: Polished chrome or brushed nickel.
Colors/Finishes
• Ash Grey (AG)
• Glossy White (GW)
• Walnut (WA)
(1805mm)
33-1/2"
(852mm)
L-FEET
SIDE VIEW
33-1/2"
(852mm) 13-1/2"
(343mm)
71"
3-1/8" (80mm)
7-1/8"
2" (51mm)
(200mm)
7"
5-3/8"
(178mm)
(136mm)
9-1/8"
(232mm)
Madeli, USA LLC | 9710 NW 110th Ave., Suite 1
Tel: 305-718-8817 |
Top/Basin options
• White , Soft Grey or White Carrara Quartzstone™ top & white
under mount ceramic basin
• Glossy White X-Stone top/basin
Package Dimensions
73" x 22"x 28"
Weight
223 lbs. / 102 kgs
18"
(458mm)
S-FEET
18" (458mm)
17-1/4" (438mm)
| Miami , FL 33178
Fax: 305-718-8477 | Toll Free: 1-800-819-6988
B400-72D-001-XX
3/16" (5mm)
12"
(306mm)
1/8"
(3mm)
1" (25mm)
12"
(306mm)
13/16" (20mm)
| madeli.com
Model Number
24-3/8"
(620mm)
01 | Page
Rev 050117
All Rights Reserved - 2017
