Madeli Genova-24 Specification & Installation Manual

Functional Elegance

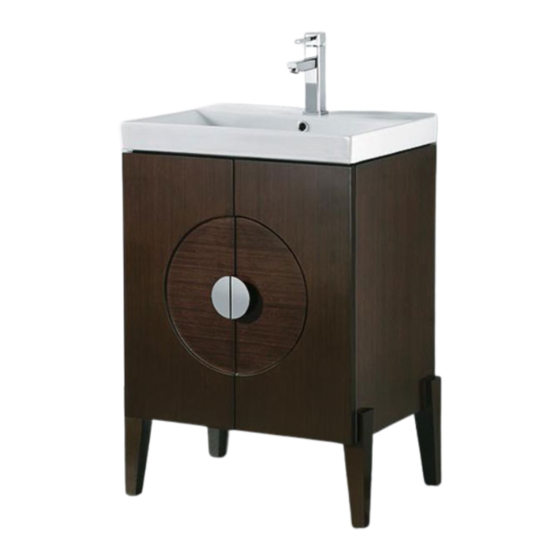

Genova - 24"
Features
• Free standing 24" vanity : 33-7/16"(850mm)H x 18-1/16"(458mm)D x
23-5/8" (600mm)W
• Furniture grade plywood layered with solid wood veneer and protected
with several coats of polyurethane.
• Matching nish inside out
• Two soft-close doors
• Interior bottom drawer with full extension soft-close European hardware
• Handles: Polished chrome nish (Stainless steel nish optional)
Finishes
• Glossy White (GW)
• Walnut (WA)
33-7/16"
(850mm)
SIDE VIEW
15-1/4"
(387mm)
For clari cation, please contact Madeli Customer Care at (800)-819-6988 or (305)-718-8817 Ext. 1
All dimensions are approximate and subject to standard tolerance. Speci cations subject to change without prior notice.
23-5/8"
(600mm)
Drawer Clearance
12-1/4"
10-5/8"
(311mm)
(270mm)
Madeli, USA LLC | 9710 NW 110th Ave., Suite 1
Tel: 305-718-8817 | Fax: 305-718-8477
Speci cation & Installation Guide
Top/Basin options
• White or soft Grey Quartzstone™ top & white under mount
ceramic basin
• Glossy White X-Stone top/basin
• Ceramic basin
• Tempered glass top/basin
• Glossy or Matte White X-Stone at top
• Glossy White or Walnut wood countertop
Package Dimension
27" x 21" x 36"
Gross Weight
18-1/16"
63 lbs / 28 kgs
(458mm)
13/16"
(21mm)
17-3/16"
(437mm)
| Miami , FL 33178
| Toll Free: 1-800-819-6988
B922-24-001-XX
3/16"
(5mm)
33-7/16"
(850mm)
3-1/8"
(80mm)
7-7/8"
(200mm)
| madeli.com
All Rights Reserved - 2014
Model Number
01 | Page
Rev. 052715
