Midland DV-2066 Program Manual
  1. Manuals
  2. Brands
  3. Midland Manuals
  4. Radio
  5. DV-2066
  6. Program manual
Midland DV-2066 Program Manual

Midland DV-2066 Program Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

RTS Trust Reg. No IT 1525/98
P O Box 81, Senekal, 9600, South Africa
Email: mail@repeater.co.za
7 Charl Cilliers Street, Senekal, 9600, South Africa
Website: www.repeater.co.za
Tel: +27 58 481 3079  Fax: +27 58 481 4510
www.midland.co.za
Tel: 086 100 2524
 Fax: 086 659 9504
REPEATER & TRUNKING SYSTEMS
DV-2066/DV-2135/DV-2400
(66~88 / 135~174 / 400~470MHz)
Program Manual
For Commercial Use
The World in Communication

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV-2066 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midland DV-2066

Summary of Contents for Midland DV-2066

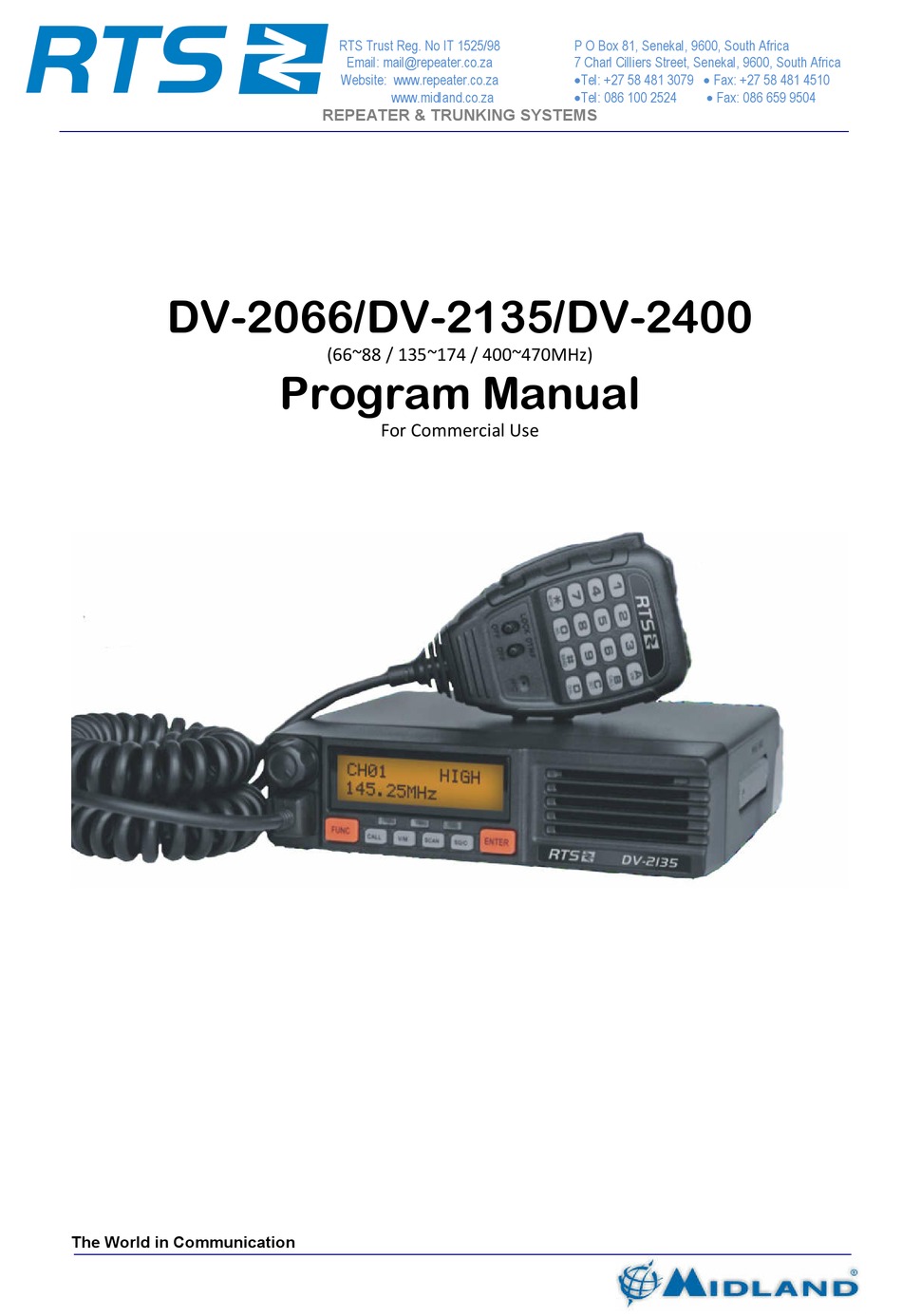

  • Page 1 Tel: +27 58 481 3079  Fax: +27 58 481 4510 www.midland.co.za Tel: 086 100 2524  Fax: 086 659 9504 REPEATER & TRUNKING SYSTEMS DV-2066/DV-2135/DV-2400 (66~88 / 135~174 / 400~470MHz) Program Manual For Commercial Use The World in Communication...
  • Page 2 Learn the front panel Key functions:- FUNC Function key CALL 5-tone or DTMF per channel Scanning SCAN Scanning + enter key SQ/C FUNC + SQ/C squelch setting ENTER Confirming some keys Microphone keys [A] V/M Scan ON/OFF [B] CALL = Dial last selected address [C] SET [D] DIAL =...
  • Page 3 Eliminating end TX noise Choose TX power Alarm pin Level  60W / 45 W = DV-2066 Pin 2 (Max 50mA) setting to trigger transistor to activate relay  25W / 25W = DV-2135 and DV 2400 Duration of setting after successful decode of 5-tone format or Emergency Call When the press the “DIAL”...
  • Page 4 5-Tone Section 5-Tone radio ID What do you expect the radio to behave after the receiving the correct code: None = nothing Beep Beep & respond = Beep + TX Code Leave the rest unchanged except for First Delay especially if use on a community repeater increase to 500~ 1000 ms.
  • Page 5 Emergency Setup Call & mike = Radio will send 5-Tone code “0” (77700) and keep the mike for 3s live, return to RX mode 1 s on channel 3 this sequence will be repeated 3 times when RX an emergency call the radio will sound the alarm tone for 10s and then return back to idle state.
  • Page 6 Channel Edit List Step = 12.5k Channel spacing 12.5 KHz 25 watts Additional display Busy channel Lockout Please note the following will unmute the RX:- Carrier on RX = no tone detection – For comrep please enable and for CTCSS/DCS setting CTCSS/DCS will unmute the RX Optional Signalling is either DTMF/2-tone or 5-Tone selected in here this will ignore CTCSS/DCS setting...
