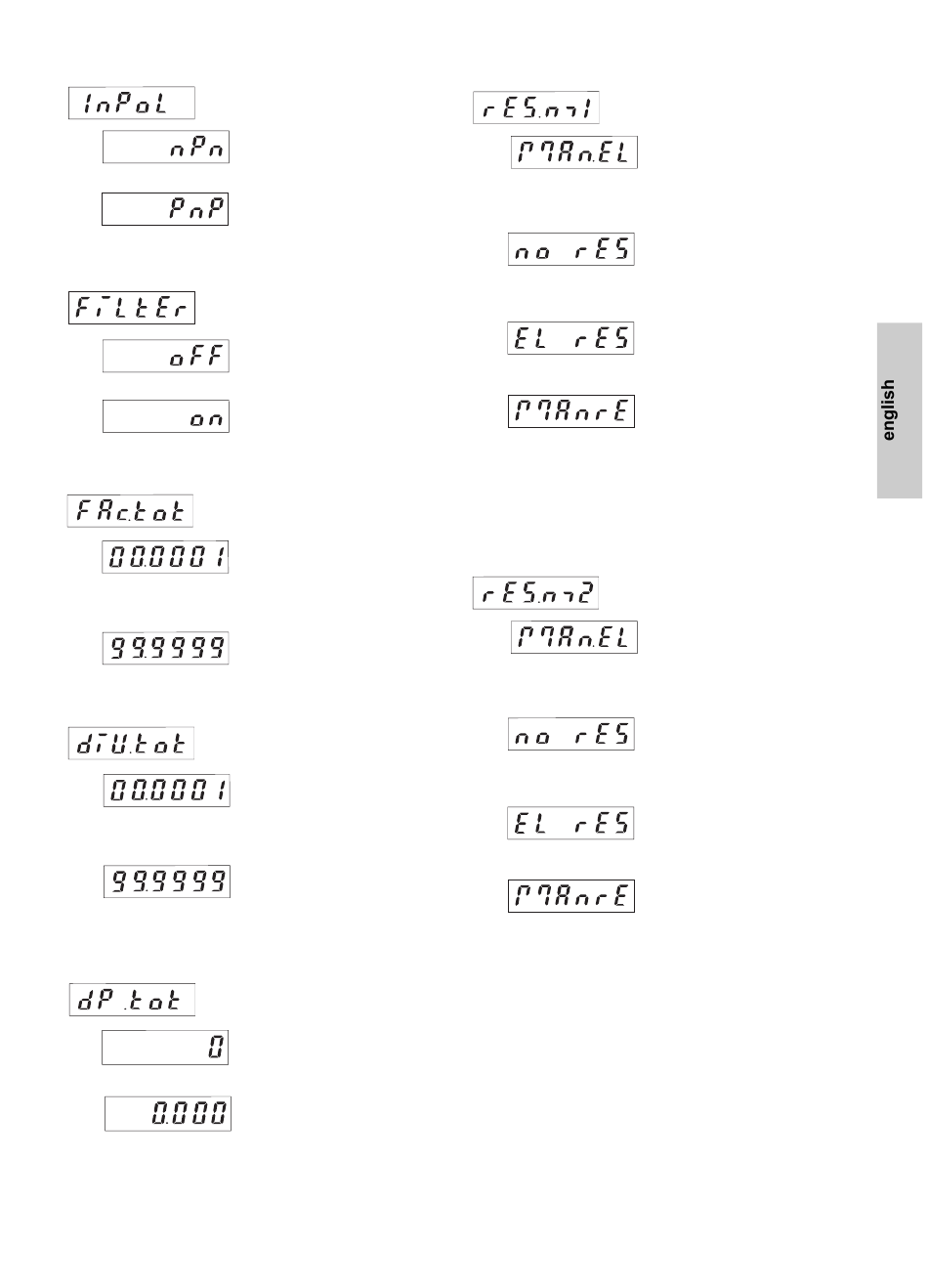

4.1 Polarity of the inputs
npn: switching for 0 V
pnp: switching for +U B
4.2 Switching on the 30 Hz filter (INP A)
30 Hz filter off (f max )
30 Hzfilter on
4.3 Multiplying factor
It can be set from 00.0001
up to 99.9999.
The decimal point is set to
4 decimal places.
„0" is not accepted!
4.4 Dividing factor
It can be set from 00.0001
up to 99.9999.
The decimal point is set to
4 decimal places.
„0" is not accepted!
4.5 Decimal point
The decimal point defines
the way of displaying the
count values. It does not
affect counting.
0
0.0 one decimal place
0.00 two decimal places
0.000 three decimal places
no decimal place
4.6 RESET mode (totaliser 1)
manual reset via the red
RESET key and
electrical reset via the
RESET input
no reset (red RESET key
and RESET input locked)
only electrical reset via the
RESET input
only manual reset via the
red RESET key
4.7 RESET Mode (totaliser 2)
manual reset via the red
RESET key and
electrical reset via the
RESET input
no reset (red RESET key
and RESET input locked)
only electrical reset via the
RESET input
only manual reset via the
red RESET key
