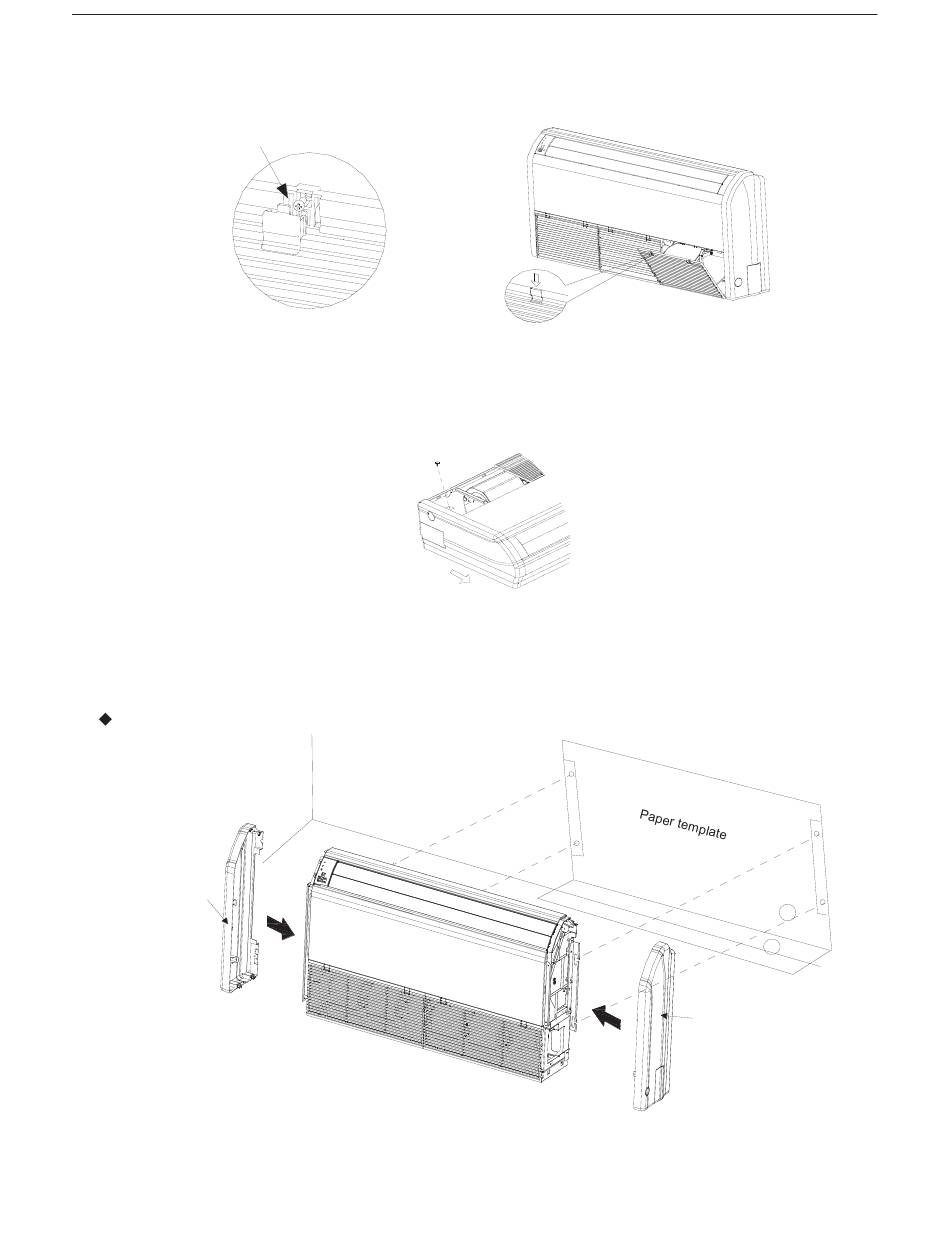

(3) First, unfix two buckles on the grille as shown on the picture. Remove the screws under the
buckles by a screwdriver and then open the inlet grille.
Remove the screw
(4) Remove the screws shown in the picture. Push the side plate as per the arrow direction and
take it down.
(5) Put the hanger bolt into the clasp of the indoor unit and tighten screws on the hanger to prevent
the indoor unit from moving.
(6) Reinstall and tighten the right and left side panels.
Floor type
Left side panel
Figure 3-1-25
Remove the screw
Figure 3-1-26
Wall
Figure 3-1-27
12
Right side panel
