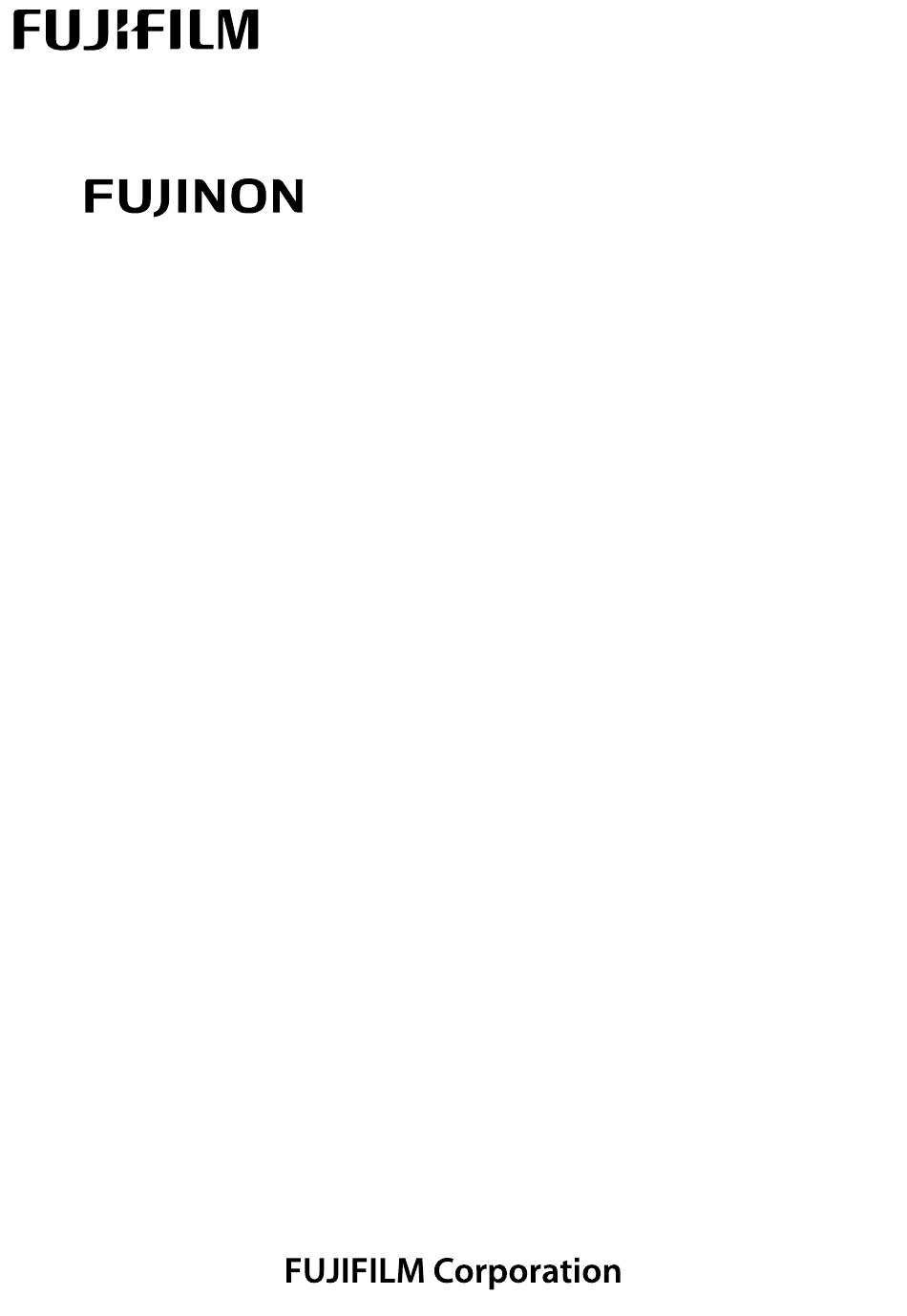

- Page 1 LENS Operation manual FD32x12.5SR4A-CV1 BB00036335-200 LC235A-CV1 2803...
- Page 3 FOR YOUR SAFETY FOR YOUR SAFETY This section explains important notices to use this product safely. Read the information carefully before using, and follow the instructions. △ △ The symbols WARNING and CAUTION indicate: △ WARNING Indicates the possibility of causing death or serious injury when misused. △...
- Page 4 FOR YOUR SAFETY NOTICES ◆ Do not use this product for purposes not mentioned in this manual. ◆ Lens and accessories are extremely precise instruments. Avoid strong impact. ◆ This lens is designed for indoor use. When using the lens outdoors, always take proper measures including the use of a protective cover.
-
Page 5: Table Of Contents
CONTENTS ■ GENERAL DESCRIPTION···········································································································································2 ■ LIST OF COMPONENTS·············································································································································3 ■ SPECIFICATIONS··························································································································································4 ◇ OPTICAL AND MECHANICAL····························································································································4 １ ◇ ELECTRICAL······························································································································································5 ２ ■ INSTALLATION OF CAMERA···································································································································6 ■ FIXING OF LENS····························································································································································7 ■ WIRING DIAGRAM ·························································································································································8 ■ SELECTION OF CONTROL MODE ························································································································9 ■ ANALOG CONTROL MODE SETTING················································································································10 ■... -
Page 6: General Description

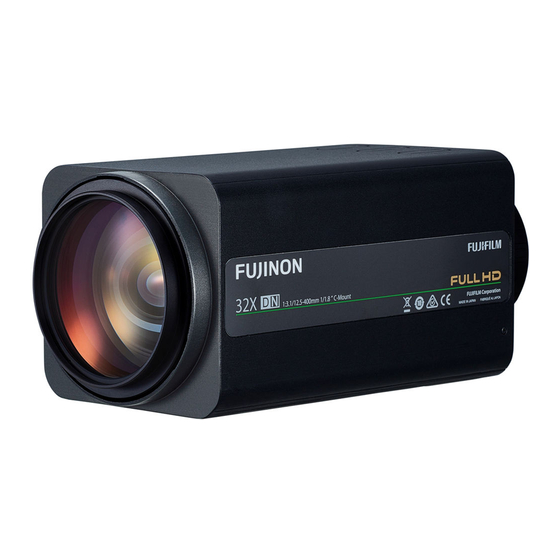

G E N E R A L D E S C R I P T I O N FUJINON CCTV Lens of FD32×12.5 is a high performance zoom lens which has been developed for 1/1.8" format day/night cameras. The main features are as follows: ・... -
Page 7: List Of Components
PRODUCT CONFIGURATION AND NAMES OF THE PARTS ■ LIST OF CONTENTS 1. Lens package........................1 2. Front lens cap ....................... 1 3. Rear lens cap ........................ 1 4. Power Supply Connector ....................1 5. Operation manual ......................1 ■Names of the parts ①... -
Page 8: Specifications
S P E C I F I C A T I O N S ◇ OPTICAL AND MECHANICAL １ FD32×12.5SR4A-CV1 ITEM 1/1.8” Format Day/Night Camera Application Focal Length 12.5 mm ～ 400 mm Zoom Ratio 32× Maximum Relative Aperture 1 : 3.1 Iris Range F3.1 ～... -
Page 9: Electrical
◇ ELECTRICAL ２ Serial Communication Control Connector D-sub 9-pin Connector (Female) Communication specifications RS-232C Communication Protocol Based on the C10 or Pelco-D protocol 38400bps（C10） Baud rate 2400/4800/9600/115200bps（Pelco-D） Device address Selected from 1 to 16 (Pelco-D) Analog Control Connector 16-pin Flat Cable Connector （Zoom）... -
Page 10: Installation Of Camera
INSTALLATION OF CAMERA ！ WARNING △ Be sure to attach all the parts securely. Dropping any parts from a height may cause severe accidents. Note. When mounting a camera to the lens, refer to the operation manual of the camera to be used as well as this section. -
Page 11: Fixing Of Lens
FIXING OF LENS △ When using a heavy camera, use the tripod mounts of both the camera and the lens to fix them ！ WARNING securely. If using the tripod mount on the lens only, the lens may be damaged due to the weight of the camera, or the camera may become disconnected from the mount and fall down, causing a serious accident. -
Page 12: Wiring Diagram
WIRING DIAGRAM LENS OMRON XW4B-02B1-H1 Power Supply Connector +12V Power Supply （OMRON XW4B-02B1-H1） OMRON XG4A-1635 IRIS Filter ① ZOOM ↑↓ COMMON IRIS ② FOCUS Hall Sensor ↑↓ COMMON Potentiometer Power Supply (Input) Pin № Potentiometer GND Power Supply (12V) Focus Potentiometer Output Zoom Potentiometer Output Iris Manual Remote (Input) Reserved... -
Page 13: Selection Of Control Mode
SELECTION OF CONTROL MODE Either the analog control mode or serial communication control mode can be used with this lens. The control mode is selected using the control mode selection switch. Note: Before attempting to change the switch settings, turn off the power of the lens and control signal input. Setting Referring to the illustration below, set the control mode selection switch. -
Page 14: Analog Control Mode Setting
ANALOG CONTROL MODE SETTINGS With this lens, it is possible to select any of six drive voltage ranges for the zoom and focus and either of two standard power supplies of the potentiometer. Before use, set the analog control mode selection switch and standard power supply selection switch on the lens top to the positions that match the output of the controller used, as instructed below. -
Page 15: Serial Communication Control Mode Setting
SERIAL COMMUNICATION CONTROL MODE SETTINGS This lens supports two camera communication protocols (C10 and Pelco-D). Before use, set the serial communication control mode selection switch on the lens top to the position that matches the protocol that is to be used. Note: Before attempting to change the switch setting, turn off the power of the lens. -
Page 16: Iris Control Mode Selection
IRIS MODE SELECTION This lens supports DC iris control and video iris control. Manual control can also be performed when video iris control is selected. Set the iris mode selection switches to match the camera’s auto iris control system. Note: Before attempting to change the switch setting, turn off the power of the lens. SETTING METHOD Referring to the illustration below, set the iris mode selection switches. -
Page 17: Connection Of Cable
CONNECTION OF CABLE Connect the each cables referring to the following illustration. Note: The cable used to supply power to the power supply connector and the connector ( XG4M-1630 ) and cable for connecting to the analog control connector are not supplied with the lens, so they should be purchased separately. -
Page 18: Operation Of Lens
OPERATION OF LENS When using the camera in the serial communication control mode, refer to the separate C10 protocol manual or Pelco-D protocol manual. Address all inquiries concerning the protocol manuals to one of our sales agents. When using the camera in the analog control mode, follow the procedure below to apply the voltages to the pins of the analog control connector, and begin to operate. -
Page 19: Adjustment Of Flange Focal Length
ADJUSTMENT OF FLANGE FOCAL LENGTH The flange focal length is the distance from the flange (mounting surface) of a lens to the focal plane. If the focal plane of the lens does not coincide with the image plane of the camera, the object will be out of focus during a zoom operation. - Page 20 3. Insert the Allen wrench (1.5 mm width) into the flange focal length fixing screws, and loosen the three screws (by rotating the wrench through one complete turn). Take care not to loosen the screws too much as they may fall out. 4.
-
Page 21: Video Iris Adjustment
VIDEO IRIS ADJUSTMENT When video iris control is used, the brightness can be adjusted using the LEVEL adjustment trimmer and ALC adjustment trimmer located on the lens body. The brightness has been adjusted at the factory and does not required adjustment for normal use. However, if it is to be adjusted, proceed as instructed below. -
Page 22: Maintenance
MAINTENANCE ◇ DAILY MAINTENANCE １ ■ LENS CLEANING To avoid scratching the lens, clean it using an oil-free soft brush, a blower-brush (for photography use), or lens paper. ■ CHECK CONNECTION CORDS Carefully inspect outer covering and terminals for cuts, scratches or other damages. ◇... -
Page 23: When A Failure Is Suspected
WHEN A FAILURE IS SUSPECTED When any problem occurs with the lens, first check the following table for a solution before requesting repair. If the symptom persists after taking the corrective action shown in the table, contact the sales agent from which you purchased the product. -
Page 24: Outline Drawing
OUTLINE DRAWING UNIT ： mm (Effective diameter) Serial number Detailed view of seating Rear view surface for mounting M5 threaded holes, 4.5 depth 5 mm-diameter hole, 4.5 depth UNC threaded hole, 6 depth Iris control cable Control cable for serial communication control FD32×12.5SR4A-CV1 - 20 -... - Page 28 http://www.fujifilm.com/products/optical_devices/cctv/offices...
