Sencore DMG 4000 User Manual

Digital media gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

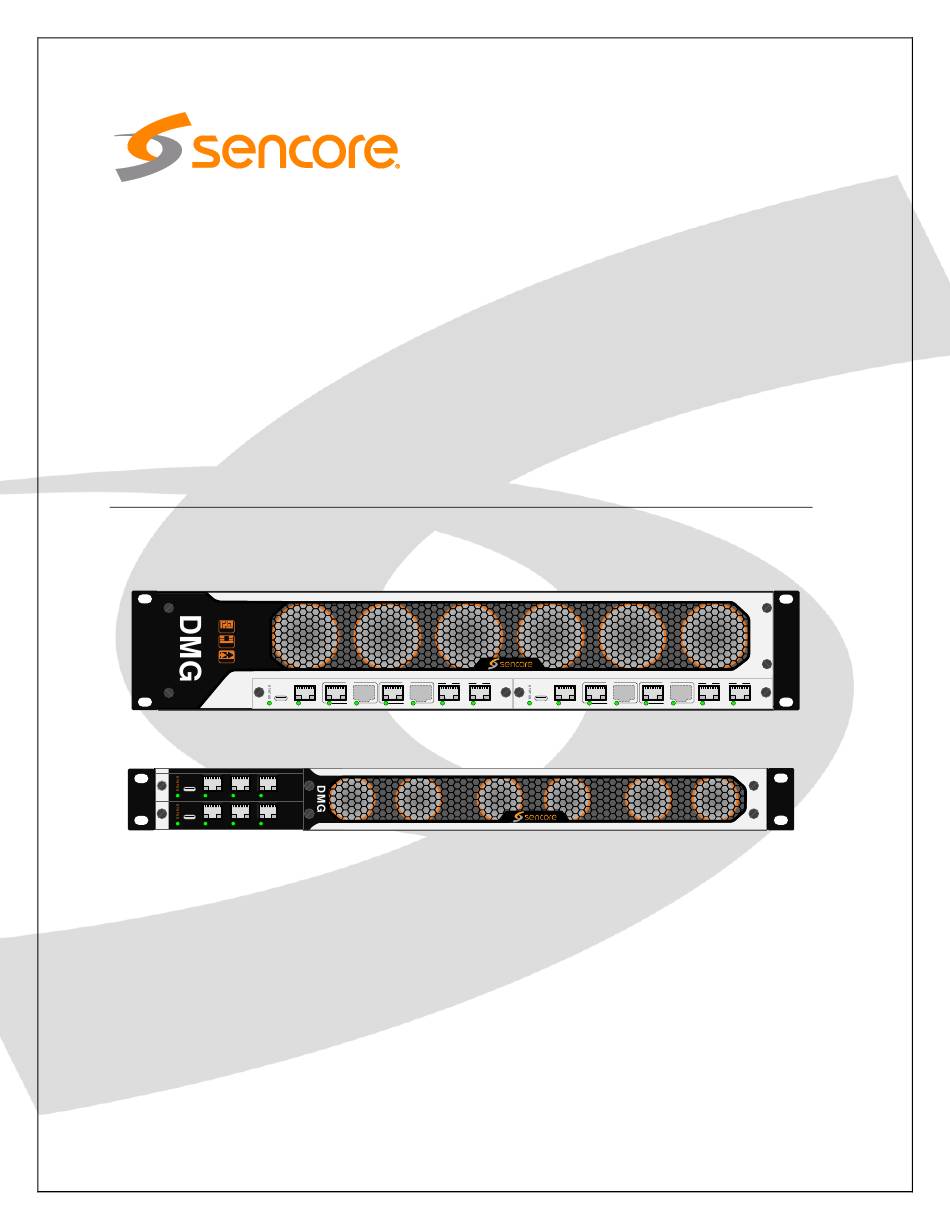

DMG 4000
Digital Media Gateway

User Manual

HI-DE NSITY
MOD ULAR
HO T-SWAP
USB
CTRL
USB
CTRL
8183A
10G
10G
D1
D2
USB
CTRL
D1
D2
D1
D2
www.sencore.com | 1.605.978.4600
1G
1G
10G
D3
D4
D1
USB
CTRL
10G
1G
1G
D2
D3
D4
December 2018
Revision 2.0

Advertisement

Table of Contents
loading

Related Manuals for Sencore DMG 4000

Summary of Contents for Sencore DMG 4000

  • Page 1: User Manual

    DMG 4000 Digital Media Gateway User Manual HI-DE NSITY MOD ULAR HO T-SWAP CTRL CTRL CTRL CTRL December 2018 8183A www.sencore.com | 1.605.978.4600 Revision 2.0...
  • Page 2 Inquiries should be made directly to those companies. This document may also have links to third-party web pages that are beyond the control of Sencore. The presence of such links does not imply that Sencore endorses or recommends the content on those pages.

  • Page 3: Table Of Contents

    Table Of Contents Installation and Safety ............... 5 The DMG 4200 product ....................5 1.1.1 Ventilation ......................5 1.1.2 Replacing the power supply module ..............5 The DMG 4100 product ....................6 1.2.1 Ventilation ......................6 1.2.2 Replacing the power supply module ..............6 Safety Considerations ....................
  • Page 4 7.3.1 Add a new EMM stream ..................32 Flow Scrambling Application ..................33 7.4.1 Create Access Control group ................34 7.4.2 Edit Access Control group..................35 7.4.3 Edit service ......................35 Encoders ..................37 Configuration Flow ....................37 Profiles........................37 8.2.1 Encoder Video Profile ..................

  • Page 5: Installation And Safety

    DMG 4000-series products can be delivered in two chassis versions - 2RU chassis and a 1RU chassis. The product model DMG 4200 represents the 2RU chassis, while the product model DMG 4100 represents 1RU chassis.

  • Page 6: The Dmg 4100 Product

    other power supply unit can feed the entire DMG 4200 product. Replacing one power supply will not affect the operation of the unit. It is recommended to connect each power supply module to different circuits. 1.2 The DMG 4100 product The 1RU chassis for the DMG 4100 holds of a total of 8 slot positions all of which can host functional insertion blades.

  • Page 7: Power

    The equipment must be installed by a qualified person. For that equipment with grounding, connect the driver before connecting the power cord. For removal, the opposite must be done and the power cord removed before removing the driver of the ground. The equipment must be installed in a restricted area where: •...

  • Page 8: Dmg 4200 With 1500W Ac Power

    FAIL FAIL 1.4.3 DMG 4200 with 1500W AC Power The 2RU chassis holds two power supplies with independent power inlet for the two supplies. The power inlet connector is IEC type C16, requiring a power cable with IEC type C15. Both supplies shall be connected and active. In case of one power supply unit is failing, or there is a failure causing loss of power to one of the power supplies, the other power supply unit can feed the entire DMG 4200 product.

  • Page 9: Laser Safety

    1.5 Laser Safety The Optical SFP and SFP+ modules used in the DMG 4100 and DMG 4200 products are classified as class 1 laser products according to IEC 60825-1 and are classified as class 1 laser products per CDRH, 21 CFR 1040 Laser Safety requirements. Depending on the products configuration, the DMG 4100 and DMG 4200 products can be equipped with multiple insertion modules containing housing for optical SFP and SFP+ modules.

  • Page 10: Dmg Platform Architecture

    The DMG platform offers an automation API (JSON) that supports all features offered via the WEB interface of the unit. For easy integration with NMS systems the DMG unit also supports sending SNMPV2 traps to external NMS’s. For details regarding the interface please contact Sencore. 2.3 Unit Configuration All system configurations are store in a central database on the switch card.

  • Page 11: General Configuration

    3 General Configuration 3.1 Connecting to the device In order to connect to the unit, you must first the control port to the PC/Network. The default IP address of the unit is 192.168.1.100. • Set the IP address of the PC’s Ethernet to a fixed address in the same segment, e.g. 192.168.1.99 •...

  • Page 12: Maintenance Center" Application

    • Engineer: As Engineer, but not allowed to add and remove flows in the system, only to change the content. • Operator: View only rights. To add a new user, press the + sign in the desired profile and add the credentials. 3.4 “Maintenance Center”...
  • Page 13 For each port the following parameters are configurable: Assign a label for the port. This label will then be displayed in other views were Label the port is referenced. IPV4 The IP address of the port. NB: For the IPV4 the address block 169.254.0.0/16 Address is reserved Gateway...

  • Page 14: Ip Input Application

    4 IP Input Application The “IP input” application controls the IP input path of the IP chain. When opening the application, it will list currently active inputs. Enabled The enable checkbox lets the operator easily disable an input. In a multicast environment the IGMP message will not be sent such that data is not forwarded from the switch.
  • Page 15 Additionally, it will affect the type of mapping that is supported by the system. The IP source address will be re-generated by the DMG 4000. DVB: Analyze PAT/PMT/SDT of the service MPEG: Analyze PAT/PMT of the service RTP: No analysis is performed.
  • Page 16 De-jitter The de-jitter setting configures the de-jitter configurations depending on the type of input data. DVB/MPEG inputs OFF: No de-jittering applied. CBR->Bitrate: Optional parameter-. If the input rate is known, setting this parameter will cause the input chain be quicker to get the rate-control accurate.

  • Page 17: Searching For Streams

    4.2 Searching for streams For an ever-increasing number of flows through a unit searching for information gets critical. In the DMG applications this has been put into the system from the very start. On top of the input application pane there is a search field which enables the operator to search and filter the list view in order to find the correct sources.

  • Page 18: Detailed Status (Bitrate And Psi)

    4.5.1 Detailed status (Bitrate and PSI) On the right-hand side more stream details are shown. For MPEG/DVB sources the total bitrate for the input is shown. The PID view lists the components signalled in the PMT, not the PIDs detected on the input. I.e. if there are any unreferenced PIDs these will not be listed.

  • Page 19: Ip Output Application

    5 IP Output Application To launch the IP output applications, locate the “IP Output (Slot Number)” application on the desktop for the slot in interest and click the icon. The start page of the output application lists the defined outputs. Enabled The enable checkbox lets the operator easily disable an output.

  • Page 20: Source Selection

    Use the expansion arrow to add locate sources and add new content When the expansion dialog is open the next steps are to Select the source to add, select the destination of the source, then the action buttons will be used to do the actual work. The following sections will dive into the details of each step. 5.2 Source selection The source selection is the starting point to add new content.

  • Page 21: Destination Selection

    Auto- In some system configurations the input is not present at the time of configuration of the first system. This is typically for VOD systems were the source is activated by the end user. For this scenario the system must be configured in the same way as a service mapping, only that the service to choose will be the first one that is detected on a source.

  • Page 22: Action Buttons

    • With a selected DVB output, then the Add to Multiplex action button appear • With a selected output service, the Add to Multiplex disappears, and the Replace Content action button appears. 5.4 Action buttons Create output Cloned Output Enable this to mirror the output of Path1 to path2 Add Mode: The mode dictates how to generate the overall attributes of the output.

  • Page 23: Changing Attributes On Active Outputs

    The system offers the following mapping modes. Source Action Mapping action Service Create output When a source service is created then a new DVB output is created. By default, it is a VBR stream. Service Add to existing With a service to transport mapping, use the Add to multiplex action output button, then the service will be added to the selected output transport.
  • Page 24 For DVB outputs the transport layer edit dialog contains both the DVB transport and the IP specific parameters. Use multiselect to edit multiple output streams simultaneously. Selecting a service object will produce the following edit dialog. Service ID Optional. Use this to override the output service ID. Service Name Optional.

  • Page 25: S2X Input Application

    6 S2X Input Application The “S2X input” application configures the demodulators on a given module. Each demodulator is represented as a row in the main table view. Each row includes a subset of configuration and status of a demodulator. Expanding a row shows a list of the services in the TS with service name and service ID.

  • Page 26: Demodulator Settings

    6.1.1 Demodulator settings Enabled Enable or disable the demodulator. Label Assign a label for the transport stream. Other views will display this label when referencing this TS. Port Each demodulator can select a transponder from 2 physical input ports. The first half of the demodulators can select P1 or P2, while the second half can select P3 or P4.

  • Page 27: Status

    Descrambling Raw Fixed Key: Enables manual selection of descrambling algorithm. Method BISS-1: CSA with 48-bit control word BISS-2: AES DVB-CISSA with 128-bit control word Control word Enter control word used for descrambling. The control word will be applied to all PIDs in the TS that are scrambled on the input. 6.2 Status Select a demodulator to display the “Details”...

  • Page 28: Component Status

    Modulation The detected modulation standard can be S, S2 or S2x Standard Constellation The detected symbol constellation, signaled in the PLHEADER for S2/S2x. Code Rate The detected FEC code rate, signaled in the PLHEADER for S2/S2x. Frame length The size of the FEC frame. Not applicable for DVB-S. Roll-off The detected roll-off of the SRRC filter, signaled in the BBHEADER for S2/S2x.

  • Page 29: Conditional Access

    7 Conditional Access The conditional access application has 4 tabs to configure; ECMG, EMMG, EMM streams and EIS. Add a new configuration by expanding the left window pane with the arrow on the left-hand side. Edit a configured entry by closing the “Add”...

  • Page 30: Emm Generators

    Label A user defined label of the ECM generator. CA algorithm The scrambling algorithm used to scramble services that use this ECMG. Channel ID The ID of the ECM Simulcrypt channel. CA system ID The CA system ID allocated by DVB to identify copy protection systems. •...

  • Page 31: Add New Emm Generator

    State Green: Connected to server. Red: Not connected to server. Last The IP address of the last EMMG server connected to the module. connected Label A user defined label of the ECM generator. TCP port The local TCP port of the module to which the server can connect. Remote IPS A list of server IP addresses that can connect to the module.

  • Page 32: Emm Streams

    Connection Select connection type to the EMM server. TCP, UDP or TCP/UDP. With TCP/UDP the initial setup uses TCP while data transfer is using UDP as defined by the Simulcrypt standard. TCP port The local TCP port of the module to which the server can connect. CA system The CA system ID allocated by DVB to identify copy protection systems.

  • Page 33: Flow Scrambling Application

    Label A user defined label of the EMM generator. Select a generator defined on the “EMM Generators” tab. Generator EMM stream An ID defined by the EMM server that identifies the stream. Max bitrate The maximum bitrate for the EMM stream. CAT private (Optional) User defined HEX string inserted in the private data section of the CAT data...

  • Page 34: Create Access Control Group

    Label A user defined label of the AC group. The label is only used by the GUI and will not affect the stream. Services A group row displays the number of services in this group. A service row shows the name of the service.

  • Page 35: Edit Access Control Group

    Label A user defined label of the AC group. Mode Select ECM or fixed-key scrambling. ECMG Select an ECMG from a list defined in the Conditional Access application. Preferred (Optional) Define the ECM packet identifier. CP duration (Optional) Define minimum crypto period in seconds. Minimum value is 5 seconds. AC type Select the AC type, HEX or 32-bit INT.
  • Page 36 Components Select what type of PIDs to scramble. Partial Reduce the number of packets to scramble. No packets will be scrambled if set to Scrambling 0%, but ECM and PSI are still generated. PES header If enabled, the PES header and a user defined number of packets the number of in clear packets in clear after the PES header must be configured.

  • Page 37: Encoders

    8 Encoders Encoders are configurated using the Encoding applications in the dashboard. When an encoder has been configured and enabled it will deliver a service to the backplane. This service can be picked up and sent out through an output interface. 8.1 Configuration Flow Much of the Configuration of an Encoder is done through reusable Profiles.
  • Page 38 The Encoder Video Profile defines the output characteristics of a video component. Encoder Video Profiles are defined using the Encoder Video Profile App on the dashboard. 8.2.1.1 Encoder Video Profile - General General Label Name of the Profile. Latency Latency mode. Use Normal for highest VQ. 8.2.1.2 Encoder Video Profile - Video Video Frame Rate...
  • Page 39 Vertical Vertical resolution of encoded video. Resolution Horizontal Horizontal resolution of encoded video. Resolution Chroma Use 4:2:0 for applications transmitting to consumer equipment. Sampling Bit Depth Use 8-bit for AVC applications transmitting to consumer equipment. Scanning Progressive or Interlaced. Mode Aspect Ratio Configures display aspect ratio of encoded video.

  • Page 40: Audio Profile

    8.2.1.4 Encoder Video Profile – AVC Codec - AVC Profile Profile controls stream complexity. Available Profiles is restricted by Chroma Sampling and Bit Depth above. Auto – Encoder selects appropriate Level based on resolution, bitrate etc. Level CABAC Selects entropy coding mode. CABAC off results in CAVLC being used. Less computational complexity for the decoder.

  • Page 41: Encoder Colour Profile

    8.2.2.1 Encoder Audio Profile – General General Label Name of the Profile. Codec Codec MPEG1, AAC LC, AAC HEv1, AAC HEv2, Dolby Digital, Dolby Digital Plus. Channel Stereo (2.0), 5.1 or 7.1 (Available options depending on codec) Mode Bit Rate Bitrate (Available range depending on codec.) Container ADTS or LATM (for AAC codecs only.)

  • Page 42: Encoder Vanc Profile

    BT709, BT 2020 (WCG) Transfer BT 2100 HLG (HDR), BT 2100 PQ (HDR), BT 2020 (SDR) Function Matrix BT709, BT 2020 (WCG) 8.2.4 Encoder VANC Profile The Encoder VANC Profile defines how to process incoming VANC data. 8.2.4.1 Encoder VANC Profile – General General Label Name of the Profile.
  • Page 43 8.2.4.3 Encoder VANC Profile – EN301775 TTX EN301775 VANC Configures format of the source VANC data. OP47 or SMPTE2031. All VANC lines Standard containing correctly formatted data will be processed. Pages Configures pages for Start, Subtitle, and Hearing-Impaired Subtitles together with languages.

  • Page 44: Encoder Services

    8.3 Encoder Services Once audio and video profiles have defined, services can be configured. Service configuration links physical inputs (SDI ports) to profiles. Services are defined using the Encoder Service App. If there is a mismatch between input resolution (e.g. HD) and configured output resolution (e.g. SD) the encoder will try to convert resolution.
  • Page 45 When the input source of a service has been selected, press save and continue to next step. 8.3.1.1 Encoder Service – Video Source/Video Enable/Disable Enables/Disables service. Profile Selects which Encoder Video Profile to use. Colour Profile Selects which Encoder Colour profile to use. Page | 45...
  • Page 46 Colour Bars Selects what the encoder should produce when no SDI input is present. Select between Colour Bars and Black. 8.3.1.2 Encoder Service – Audio Passthrough Note that when a passthrough component is generated, no Audio Profile is used since no audio encoding is performed. Audio Passthrough Source...
  • Page 47 8.3.1.5 Encoder Service – Service Parameters Service Service Configures service name in PSI/SI Name Service Configures Service Provider in PSI/SI. Provider Service ID Configures Service ID in PSI/SI PCR Interval Configures PCR interval (average) Audio # PID Configures PID for each audio component VANC # PID Configures PID for each VANC component Video PID...

  • Page 48: Sdi Over Ip

    9 SDI over IP The SDI input/output module is a converter module for running uncompressed video over IP. The board is fitted with 8 HD-BNC female connectors that can be individually programmed as input or output ports. The configuration of the card is split into two application •...

  • Page 49: Sdi - Configuration Application

    9.1 SDI - Configuration application The SDI Configuration application essentially determines the flow direction of the ports. This configurability is available for the pure SDI products only. The alternative modes are: Input The plug is an input type Passthrough This option is valid for even numbered ports where the previous port (n-1) is an input port.

  • Page 50: Sdi - Input / Output Flow Configuration

    9.2 SDI - Input / Output flow configuration Once the port mode has been defined then the streams can be configured. Once the input ports are enabled the Thumbnail view will display the detected input and the status on the right-hand side of the main list view will present basic input analysis info. Enable Enable the input stream analysis.

  • Page 51: Ip-Gateway Setup With Sdi->Ip Flows

    9.3 IP-Gateway setup with SDI->IP flows Once the SDI input is configured correctly the SDI feeds can be mapped out of the unit as IP flows. To do this, go to the respective IP output location and select the RTP type sources. The ports configured as inputs will then be listed as valid sources. Please refer to the IP output application description for a more detailed explanation on how to do this.

  • Page 52: Expected Format

    Once selected the service will be routed from the input card to the SDI where the IP->SDI conversion will take place. Note the bitrate display in the flow view. In this example the SDI is taken from port 1 slot 14, sent out on the IP card in slot 4 port D1, returned back to slot 4/D2 then sent back to the SDI card in slot 14 out on port 5….

  • Page 53: Status

    9.4.3 Status The Status presented is extracted from the SDI content of the IP source. The Port status bracket indicates how many flows currently selected. In this case (1) The port actually selected is shown next to the cog-wheel and is in this case “SDI 5”.
  • Page 54 Page | 54...

  • Page 55: Sdi Tico Uhd (2022-6)

    9.5 SDI TICO UHD (2022-6) The TICO UHD encoder/Decoder is a unidirectional card. I.e. the flow direction is defined by the software image loaded to the card. Hence the flow direction we find in the SDI product has not meaning here. The UHD encoder encapsulates the SDI inti IP according to 2022-6.
  • Page 56 The status of the decoder indicates if the source is TICO encoded and with which profile. Page | 56...

  • Page 57: Tico Hd Encoder (2110)

    9.6 TICO HD Encoder (2110) The TICO HD encoder is quite different from the UHD by the fact that the HD signal is encapsulated into IP according to SMPTE 2110. This means each part of the SDI (the essences) is encapsulated into separate IP flows. This makes the configuration process of the IP flows different from the 2022-6 case.

  • Page 58: The Tico Encoder Configuration

    If the TICO license is not installed the card can still be used for 2110 encapsulation, but the actual TICO encoding will not be available. With the TICO license the TICO compression can be enabled. 9.7.3 The TICO encoder configuration •...

  • Page 59: 2110-40 Ancillary Data

    • Select source channel Source: Stereo channels from (1&2) -> (15&16) 5.1 channels from (1->6), (3->8) and (9->14) • Audio packet repetition rate Packet rate: (1 ms or 125 us). ▪ SMPTE 2110 Conformance Level B requires support for both repetition rates. Level A = 1ms. •...

  • Page 60: Asi

    10 ASI The ASI module uses the same hardware as the SDI over IP products. As for the uncompressed SDI over IP product the ASI card has a bi-directional capability where the port directions are configurable. The configuration of the card is split into three applications •...

  • Page 61: Asi - Input Flow Configuration

    The alternative modes are simply Input or Output. 10.2 ASI – Input flow configuration The configuration of an ASI input card is simply to enable / disable a port and configure the analysis mode to be MPEG or DVB. Once a port is enabled the system will start to analyze the input PSI accordingly. 10.3 ASI - Output flow configuration The configuration of the ASI output is essentially to add define the attributes of the ASI port, and then to add services to the port itself.

  • Page 62: Asi Output Status

    The enable checkbox lets the operator easily disable an output. The stream is still Enabled defined in the system, but the stream output is muted. Label The label can be added during definition, and changed directly from the list view. TS ID The MPEG transport stream ID which will be signaled in PAT.

  • Page 63: Decoders

    11 Decoders Decoders are configured using the Decoding applications in the dashboard. When a decoder has been configured and enabled it will deliver decoded video and audio through the SDI output connectors. The input to the decoder comes from one of the input interfaces in the chassis and is delivered to the decoder over the backplane. 11.1 Configuration Flow Parts of the Configuration of a Decoder is done through reusable Profiles.
  • Page 64 11.2.1.1 Decoder Video Profile - General General Label Name of the Profile. Latency Latency mode. This should match the latency mode of the Encoder. For broadcast applications use Normal. 11.2.1.2 Decoder Video Profile - Video Video Frame Rate Frame rate in frames per second (fps). Note that HD 1080i and SD are 25fps or 29.97fps.

  • Page 65: Add Decoder Services

    Scanning Progressive or Interlaced. Mode Aspect Ratio Configures display aspect ratio of encoded video. Fallback Configures display aspect ratio of encoded video when input is lost. Aspect Ratio 11.3 Add Decoder Services Once video profiles have been defined, services can be configured. Service configuration links service inputs to decoder profiles and physical outputs.
  • Page 66 Output Enabled Enable/Disable decoder. Slot Selects the physical encoder where the service should run. SDI Type Selects the port mode. For UHD output use 12G SDI, Quad Link Square Division or Quad Link Two Sample Interleaved. For FHD/ HD/SD use 3G SDI Connector Select between available connectors.
  • Page 67 Genlock Used together with Genlock mode to allow alignment adjustment in pixels. offset Input Shows thumbnails of the video present on the input. If no input is available, the Preview thumbnail will show a checkered board. When the input source of a service has been selected, press save and continue to next step. 11.3.2.1 Audio Multiple audio components can be added by pressing the ‘+’...

  • Page 68: S2X Output Application

    12 S2X Output Application To launch a S2X output application, locate the “S2X Output (Slot Number)” application in the “Output” row on the desktop and click the icon. The start page of the output application lists the defined outputs. Enabled The enable checkbox lets the operator easily disable an output.

  • Page 69: Port Profiles

    12.1 Port profiles The first step in configuring a modulator output is to define a port profile. Select the port profile tab and expand the left pane with the arrow button. A port profile can be defined without being applied to a modulator or it can be applied to both modulators at the same time.

  • Page 70: Precorrection

    12.3 Precorrection Add a precorrection profile by expanding the left window pane and select either linear gain or linear group delay. The distortion specification is defined as coordinates in the edit pane on the right-hand side. The entered coordinates are visualized in a graph for verification.

  • Page 71: Changing Output Attributes

    Service Replace a Use the replace service to replace the destination service with the service selected source service. Create an When a TS source is added the entire MPEG/DVB transport stream output will be mapped, including NULL packet. Auto- Create/add or In some system configurations the input is not present at the time of first replace...
  • Page 72 PORT SETTINGS Enabled Enabled/disable RF output. CW Carrier Test Enable CW test mode to disabled modulation and only output a single carrier Mode wave. RF Source Status showing the active source of the RF output. The status can be Main, Backup or Mute.
  • Page 73 Switchback Set failure index threshold of when the RF output shall switch from Backup to Threshold Main. Reference Output Enable embedded 10MHz output that is synchronous to the modulated RF 10MHz output. DC Output 24V Enable embedded 24V DC output. PORT PROFILE Port Profile Select a predefined port profile from the dropdown.
  • Page 74 Service Name Optional. Use this to override the output service ID. Scrambled Optional. Use to select what PID types to scramble. Components Define the value to increase the “error index” when this service has a critical Service Priority alarm. Set a value less than 100 to prevent switch to backup when this service has issues.
  • Page 75 Sencore Inc. 3200 Sencore Drive Sioux Falls, SD 57107 USA www.sencore.com Copyright © 2018 Sencore Inc. 1.605.978.4600...
