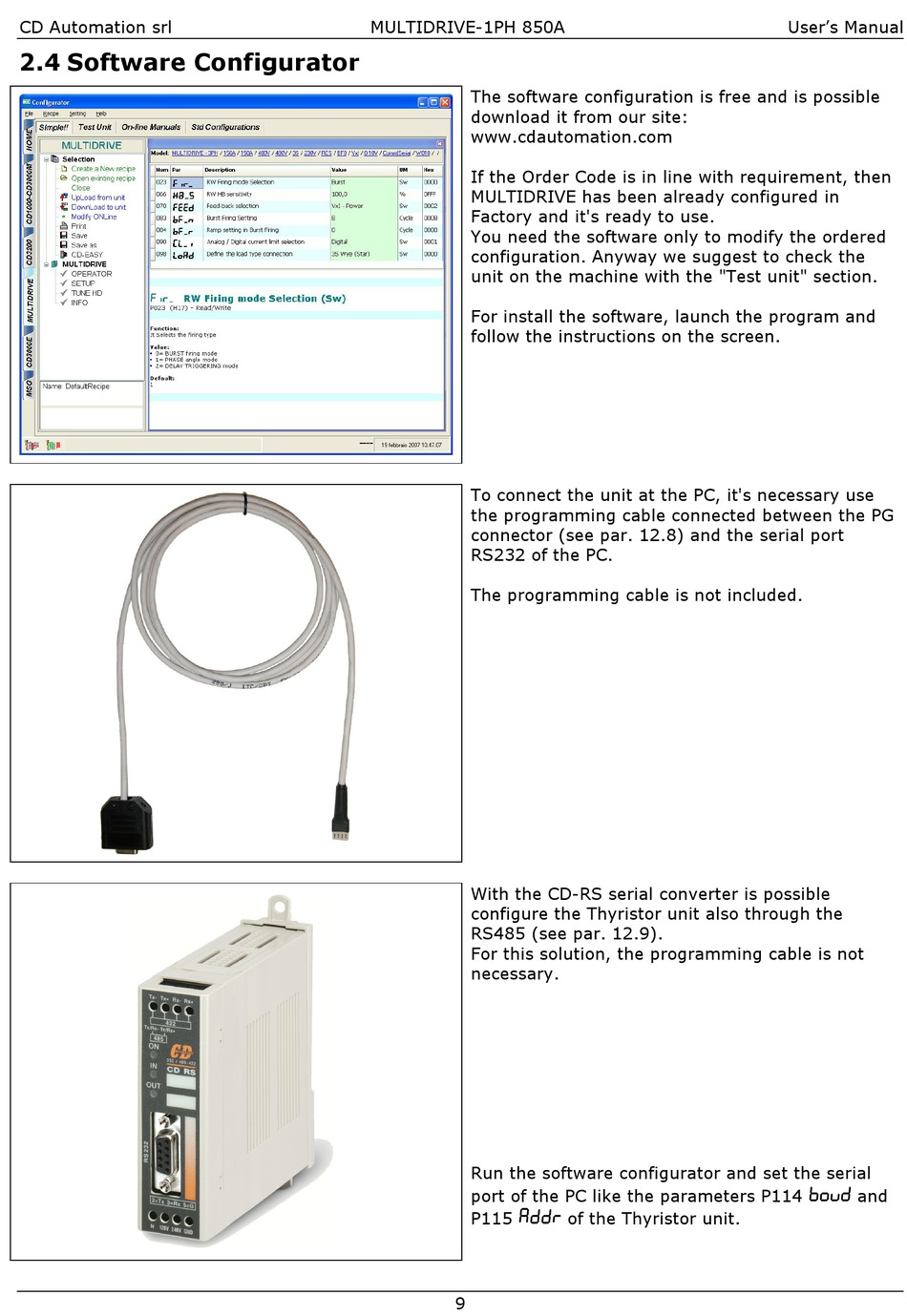

2.4 Software Configurator

MULTIDRIVE-1PH 850A
The software configuration is free and is possible
download it from our site:
www.cdautomation.com
If the Order Code is in line with requirement, then
MULTIDRIVE has been already configured in
Factory and it's ready to use.
You need the software only to modify the ordered
configuration. Anyway we suggest to check the
unit on the machine with the "Test unit" section.
For install the software, launch the program and
follow the instructions on the screen.
To connect the unit at the PC, it's necessary use
the programming cable connected between the PG
connector (see par. 12.8) and the serial port
RS232 of the PC.
The programming cable is not included.
With the CD-RS serial converter is possible
configure the Thyristor unit also through the
RS485 (see par. 12.9).
For this solution, the programming cable is not
necessary.
Run the software configurator and set the serial
port of the PC like the parameters P114  and
P115  of the Thyristor unit.
