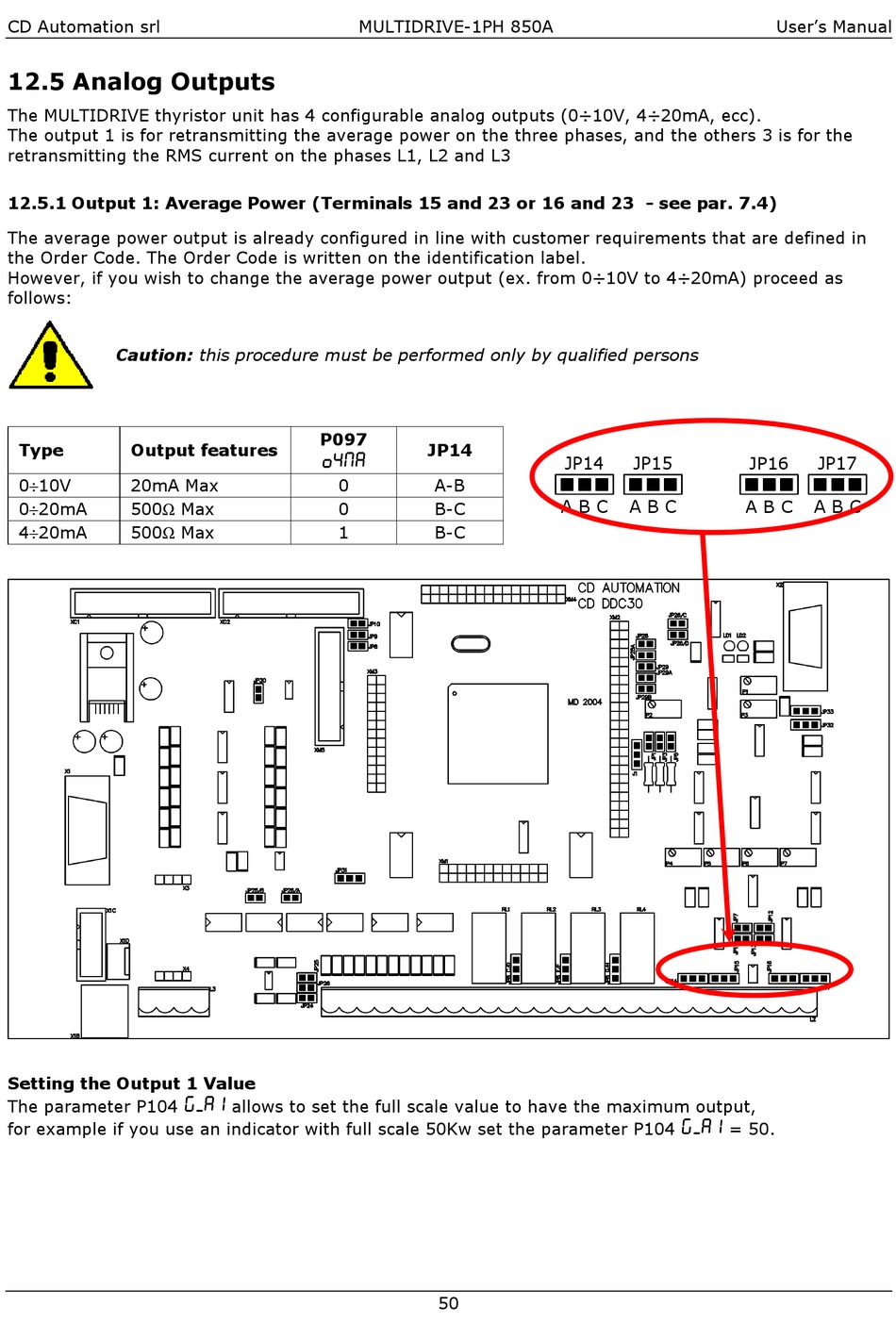

12.5 Analog Outputs

The MULTIDRIVE thyristor unit has 4 configurable analog outputs (0÷10V, 4÷20mA, ecc).
The output 1 is for retransmitting the average power on the three phases, and the others 3 is for the
retransmitting the RMS current on the phases L1, L2 and L3
12.5.1 Output 1: Average Power (Terminals 15 and 23 or 16 and 23 - see par. 7.4)
The average power output is already configured in line with customer requirements that are defined in
the Order Code. The Order Code is written on the identification label.
However, if you wish to change the average power output (ex. from 0÷10V to 4÷20mA) proceed as
follows:
Caution: this procedure must be performed only by qualified persons
Type Output features
0÷10V 20mA Max
0÷20mA 500Ω Max
4÷20mA 500Ω Max
Setting the Output 1 Value
The parameter P104  allows to set the full scale value to have the maximum output,
for example if you use an indicator with full scale 50Kw set the parameter P104  = 50.
MULTIDRIVE-1PH 850A
P097
JP14

0 A-B
0 B-C
1 B-C
50
JP14 JP15
A B C A B C
User's Manual
JP17
JP16
A B C A B C
