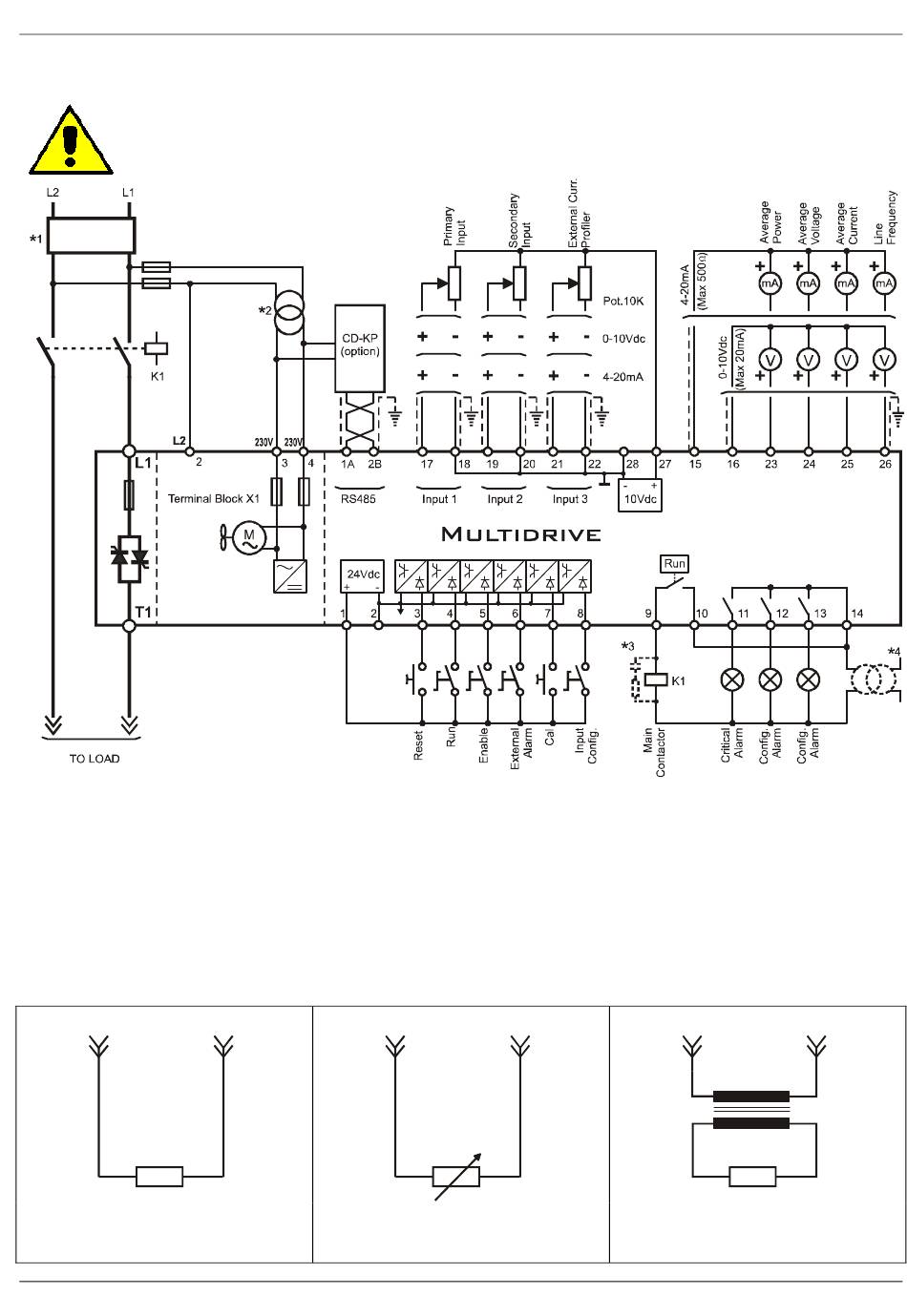

7.5 Diagram of control connection

Caution: this procedure must be performed only by qualified persons.
NOTE:
* The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
•
*² Use an appropriate external transformer based on the voltage supply of the electronic board
•
(see the identification label)
*³ The coil contactor, the relays and other inductive loads must be equipped with opportune RC
•
filter.
* Before give the Start command supply the auxiliary voltage.
•
L2
Resistances and
Infrared Lamps
MULTIDRIVE-1PH 850A
T1
Variable Resistances
Super kanthal or Silicon carbide
Load Type
L2 T1
elements
19
User's Manual
L2 T1
Transformers and
Inductances
