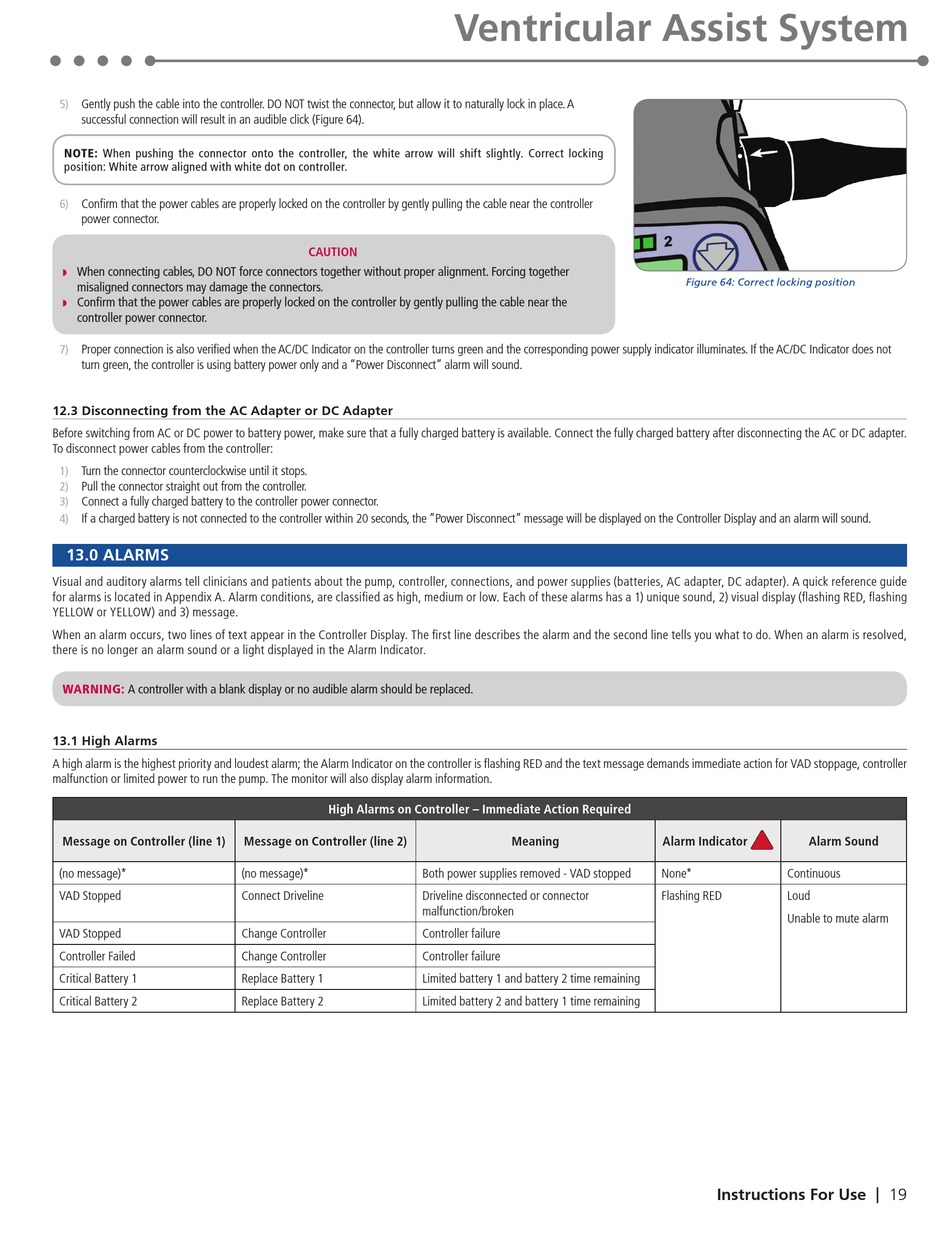

5) Gently push the cable into the controller. DO NOT twist the connector, but allow it to naturally lock in place. A
successful connection will result in an audible click (Figure 64).
nOTE: When pushing the connector onto the controller, the white arrow will shift slightly. Correct locking
position: White arrow aligned with white dot on controller.
6) Confirm that the power cables are properly locked on the controller by gently pulling the cable near the controller
power connector.
When connecting cables, DO NOT force connectors together without proper alignment. Forcing together
◗ ◗
misaligned connectors may damage the connectors.
Confirm that the power cables are properly locked on the controller by gently pulling the cable near the
◗ ◗
controller power connector.
Proper connection is also verified when the AC/DC Indicator on the controller turns green and the corresponding power supply indicator illuminates. If the AC/DC Indicator does not
7)
turn green, the controller is using battery power only and a "Power Disconnect" alarm will sound.

12.3 Disconnecting from the AC Adapter or DC Adapter

Before switching from AC or DC power to battery power, make sure that a fully charged battery is available. Connect the fully charged battery after disconnecting the AC or DC adapter.
To disconnect power cables from the controller:
Turn the connector counterclockwise until it stops.
1)
2) Pull the connector straight out from the controller.
Connect a fully charged battery to the controller power connector.
3)
If a charged battery is not connected to the controller within 20 seconds, the "Power Disconnect" message will be displayed on the Controller Display and an alarm will sound.
4)

13.0 ALARMS

Visual and auditory alarms tell clinicians and patients about the pump, controller, connections, and power supplies (batteries, AC adapter, DC adapter). A quick reference guide
for alarms is located in Appendix A. Alarm conditions, are classified as high, medium or low. Each of these alarms has a 1) unique sound, 2) visual display (flashing RED, flashing
YELLOW or YELLOW) and 3) message.
When an alarm occurs, two lines of text appear in the Controller Display. The first line describes the alarm and the second line tells you what to do. When an alarm is resolved,
there is no longer an alarm sound or a light displayed in the Alarm Indicator.
warning: A controller with a blank display or no audible alarm should be replaced.

13.1 High Alarms

A high alarm is the highest priority and loudest alarm; the Alarm Indicator on the controller is flashing RED and the text message demands immediate action for VAD stoppage, controller
malfunction or limited power to run the pump. The monitor will also display alarm information.
Message on Controller (line 1)
(no message)*
VAD Stopped
VAD Stopped
Controller Failed
Critical Battery 1
Critical Battery 2
CAUTION
High Alarms on Controller – Immediate Action Required
Message on Controller (line 2)
(no message)*
Connect Driveline
Change Controller
Change Controller
Replace Battery 1
Replace Battery 2
Ventricular Assist System
Meaning
Both power supplies removed - VAD stopped
Driveline disconnected or connector
malfunction/broken
Controller failure
Controller failure
Limited battery 1 and battery 2 time remaining
Limited battery 2 and battery 1 time remaining
Figure 64: Correct locking position
Alarm Indicator Alarm Sound
None* Continuous
Flashing RED Loud
Unable to mute alarm
Instructions For Use
I
19
