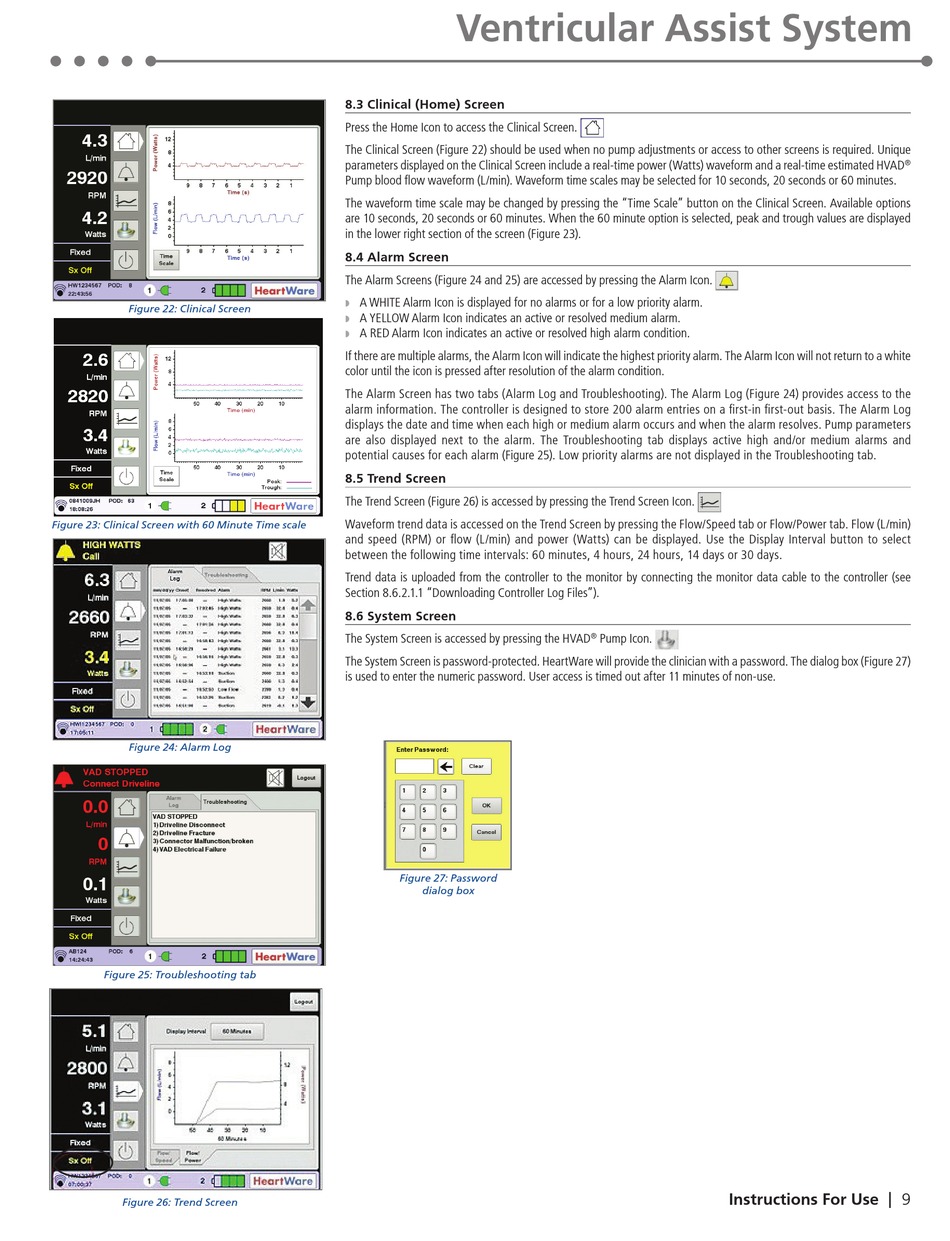

Figure 22: Clinical Screen
Figure 23: Clinical Screen with 60 Minute Time scale
Figure 24: Alarm Log
Figure 25: Troubleshooting tab
Figure 26: Trend Screen
Ventricular Assist System

8.3 Clinical (Home) Screen

Press the Home Icon to access the Clinical Screen.
The Clinical Screen (Figure 22) should be used when no pump adjustments or access to other screens is required. Unique
parameters displayed on the Clinical Screen include a real-time power (Watts) waveform and a real-time estimated HVAD
Pump blood flow waveform (L/min). Waveform time scales may be selected for 10 seconds, 20 seconds or 60 minutes.
The waveform time scale may be changed by pressing the "Time Scale" button on the Clinical Screen. Available options
are 10 seconds, 20 seconds or 60 minutes. When the 60 minute option is selected, peak and trough values are displayed
in the lower right section of the screen (Figure 23).

8.4 Alarm Screen

The Alarm Screens (Figure 24 and 25) are accessed by pressing the Alarm Icon.
A WHITE Alarm Icon is displayed for no alarms or for a low priority alarm.
◗ ◗
A YELLOW Alarm Icon indicates an active or resolved medium alarm.
◗ ◗
A RED Alarm Icon indicates an active or resolved high alarm condition.
◗ ◗
If there are multiple alarms, the Alarm Icon will indicate the highest priority alarm. The Alarm Icon will not return to a white
color until the icon is pressed after resolution of the alarm condition.
The Alarm Screen has two tabs (Alarm Log and Troubleshooting). The Alarm Log (Figure 24) provides access to the
alarm information. The controller is designed to store 200 alarm entries on a first-in first-out basis. The Alarm Log
displays the date and time when each high or medium alarm occurs and when the alarm resolves. Pump parameters
are also displayed next to the alarm. The Troubleshooting tab displays active high and/or medium alarms and
potential causes for each alarm (Figure 25). Low priority alarms are not displayed in the Troubleshooting tab.

8.5 Trend Screen

The Trend Screen (Figure 26) is accessed by pressing the Trend Screen Icon.
Waveform trend data is accessed on the Trend Screen by pressing the Flow/Speed tab or Flow/Power tab. Flow (L/min)
and speed (RPM) or flow (L/min) and power (Watts) can be displayed. Use the Display Interval button to select
between the following time intervals: 60 minutes, 4 hours, 24 hours, 14 days or 30 days.
Trend data is uploaded from the controller to the monitor by connecting the monitor data cable to the controller (see
Section 8.6.2.1.1 "Downloading Controller Log Files").

8.6 System Screen

The System Screen is accessed by pressing the HVAD
The System Screen is password-protected. HeartWare will provide the clinician with a password. The dialog box (Figure 27)
is used to enter the numeric password. User access is timed out after 11 minutes of non-use.
Figure 27: Password
dialog box
Pump Icon.
®
Instructions For Use
®
I
9
