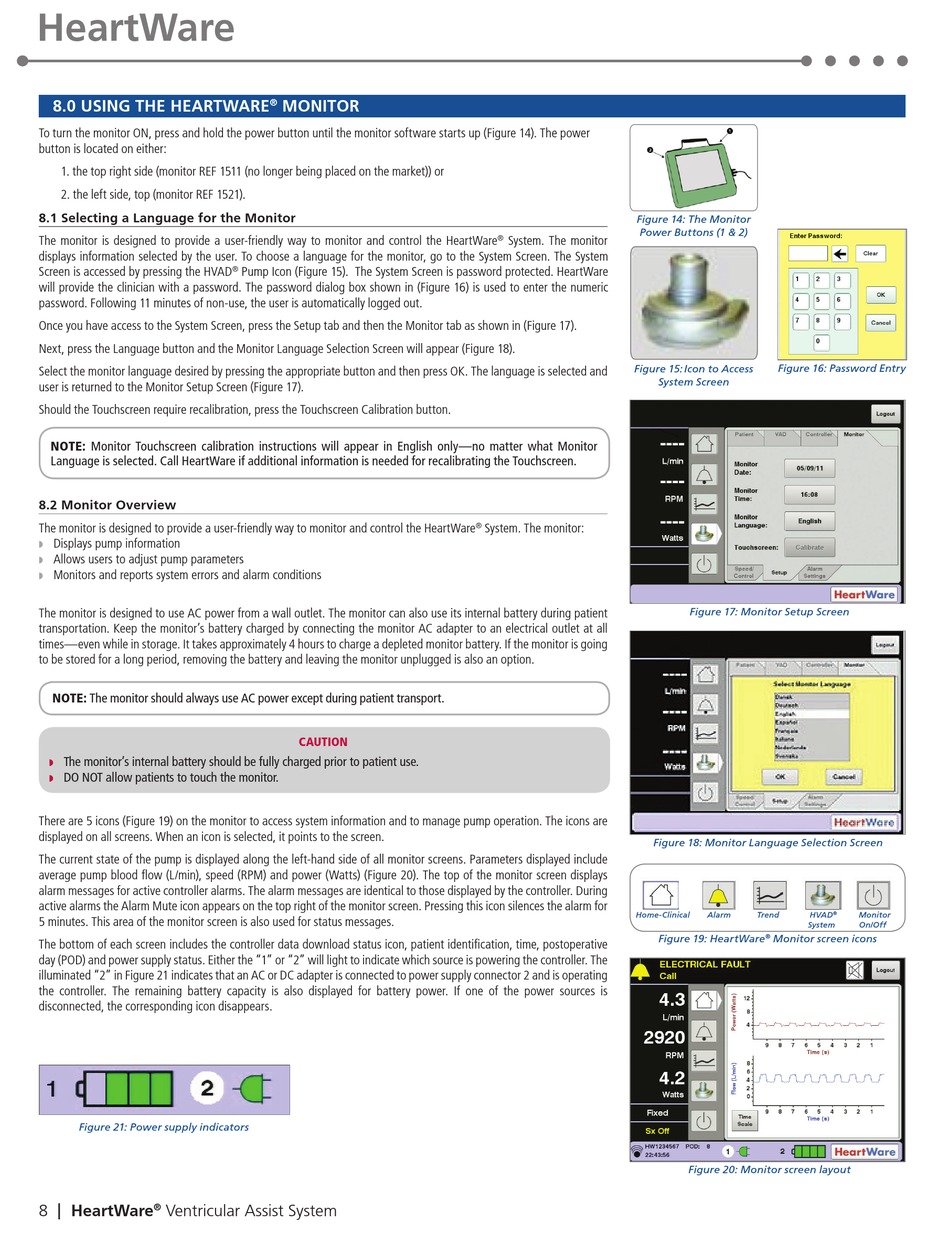

8.0 USING THE HEARTWARE
To turn the monitor ON, press and hold the power button until the monitor software starts up (Figure 14). The power
button is located on either:
1. the top right side (monitor REF 1511 (no longer being placed on the market)) or
2. the left side, top (monitor REF 1521).

8.1 Selecting a Language for the Monitor

The monitor is designed to provide a user-friendly way to monitor and control the HeartWare
displays information selected by the user. To choose a language for the monitor, go to the System Screen. The System
Screen is accessed by pressing the HVAD
will provide the clinician with a password. The password dialog box shown in (Figure 16) is used to enter the numeric
password. Following 11 minutes of non-use, the user is automatically logged out.
Once you have access to the System Screen, press the Setup tab and then the Monitor tab as shown in (Figure 17).
Next, press the Language button and the Monitor Language Selection Screen will appear (Figure 18).
Select the monitor language desired by pressing the appropriate button and then press OK. The language is selected and
user is returned to the Monitor Setup Screen (Figure 17).
Should the Touchscreen require recalibration, press the Touchscreen Calibration button.
nOTE: Monitor Touchscreen calibration instructions will appear in English only—no matter what Monitor
Language is selected. Call HeartWare if additional information is needed for recalibrating the Touchscreen.

8.2 Monitor Overview

The monitor is designed to provide a user-friendly way to monitor and control the HeartWare
Displays pump information
◗ ◗
Allows users to adjust pump parameters
◗ ◗
Monitors and reports system errors and alarm conditions
◗ ◗
The monitor is designed to use AC power from a wall outlet. The monitor can also use its internal battery during patient
transportation. Keep the monitor's battery charged by connecting the monitor AC adapter to an electrical outlet at all
times—even while in storage. It takes approximately 4 hours to charge a depleted monitor battery. If the monitor is going
to be stored for a long period, removing the battery and leaving the monitor unplugged is also an option.
nOTE: The monitor should always use AC power except during patient transport.
The monitor's internal battery should be fully charged prior to patient use.
◗ ◗
DO NOT allow patients to touch the monitor.
◗ ◗
There are 5 icons (Figure 19) on the monitor to access system information and to manage pump operation. The icons are
displayed on all screens. When an icon is selected, it points to the screen.
The current state of the pump is displayed along the left-hand side of all monitor screens. Parameters displayed include
average pump blood flow (L/min), speed (RPM) and power (Watts) (Figure 20). The top of the monitor screen displays
alarm messages for active controller alarms. The alarm messages are identical to those displayed by the controller. During
active alarms the Alarm Mute icon appears on the top right of the monitor screen. Pressing this icon silences the alarm for
5 minutes. This area of the monitor screen is also used for status messages.
The bottom of each screen includes the controller data download status icon, patient identification, time, postoperative
day (POD) and power supply status. Either the "1" or "2" will light to indicate which source is powering the controller. The
illuminated "2" in Figure 21 indicates that an AC or DC adapter is connected to power supply connector 2 and is operating
the controller. The remaining battery capacity is also displayed for battery power. If one of the power sources is
disconnected, the corresponding icon disappears.
Figure 21: Power supply indicators
I
8 HeartWare Ventricular Assist System
®
MONITOR
®
Pump Icon (Figure 15). The System Screen is password protected. HeartWare
®
CaUTiOn
Figure 14: The Monitor
Power Buttons (1 & 2)
® System. The monitor
Figure 15: Icon to Access
System. The monitor:
®
Figure 18: Monitor Language Selection Screen
Home-Clinical
Figure 16: Password Entry
System Screen
Figure 17: Monitor Setup Screen
Alarm Trend HVAD ®
System
Figure 19: HeartWare Monitor screen icons
®
Figure 20: Monitor screen layout
Monitor
On/Off
