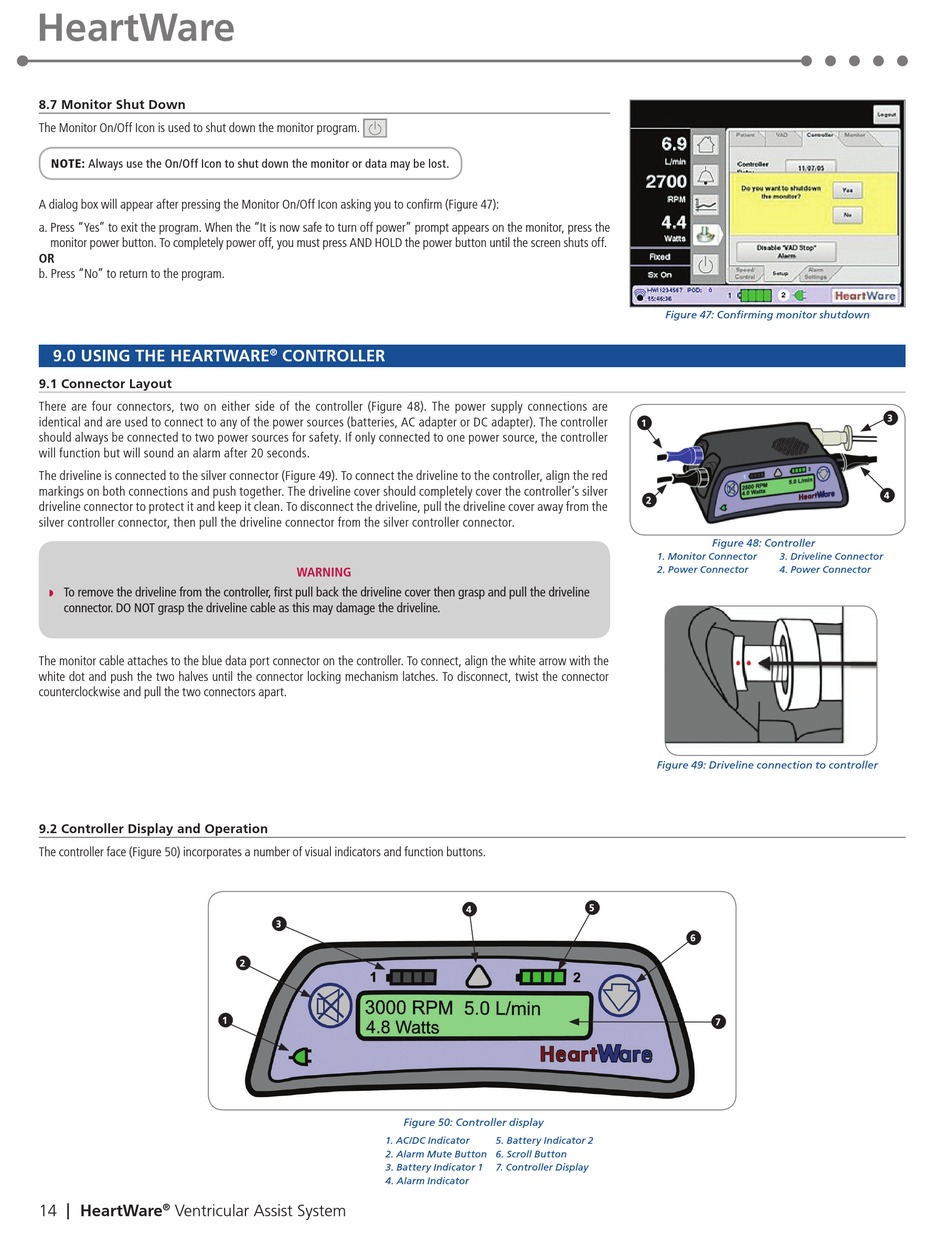

8.7 Monitor Shut Down

The Monitor On/Off Icon is used to shut down the monitor program.
nOTE: Always use the On/Off Icon to shut down the monitor or data may be lost.
A dialog box will appear after pressing the Monitor On/Off Icon asking you to confirm (Figure 47):
a. Press "Yes" to exit the program. When the "It is now safe to turn off power" prompt appears on the monitor, press the
monitor power button. To completely power off, you must press AND HOLD the power button until the screen shuts off.
OR
b. Press "No" to return to the program.
9.0 USING THE HEARTWARE

9.1 Connector Layout

There are four connectors, two on either side of the controller (Figure 48). The power supply connections are
identical and are used to connect to any of the power sources (batteries, AC adapter or DC adapter). The controller
should always be connected to two power sources for safety. If only connected to one power source, the controller
will function but will sound an alarm after 20 seconds.
The driveline is connected to the silver connector (Figure 49). To connect the driveline to the controller, align the red
markings on both connections and push together. The driveline cover should completely cover the controller's silver
driveline connector to protect it and keep it clean. To disconnect the driveline, pull the driveline cover away from the
silver controller connector, then pull the driveline connector from the silver controller connector.
To remove the driveline from the controller, first pull back the driveline cover then grasp and pull the driveline
◗ ◗
connector. DO NOT grasp the driveline cable as this may damage the driveline.
The monitor cable attaches to the blue data port connector on the controller. To connect, align the white arrow with the
white dot and push the two halves until the connector locking mechanism latches. To disconnect, twist the connector
counterclockwise and pull the two connectors apart.

9.2 Controller Display and Operation

The controller face (Figure 50) incorporates a number of visual indicators and function buttons.
I
14 HeartWare Ventricular Assist System
®
CONTROLLER
®
WARNING
Figure 50: Controller display
1. AC/DC Indicator
2. Alarm Mute Button 6. Scroll Button
3. Battery Indicator 1
4. Alarm Indicator
Figure 47: Confirming monitor shutdown
1. Monitor Connector
2. Power Connector
Figure 49: Driveline connection to controller
5. Battery Indicator 2
7. Controller Display
Figure 48: Controller
3. Driveline Connector
4. Power Connector
