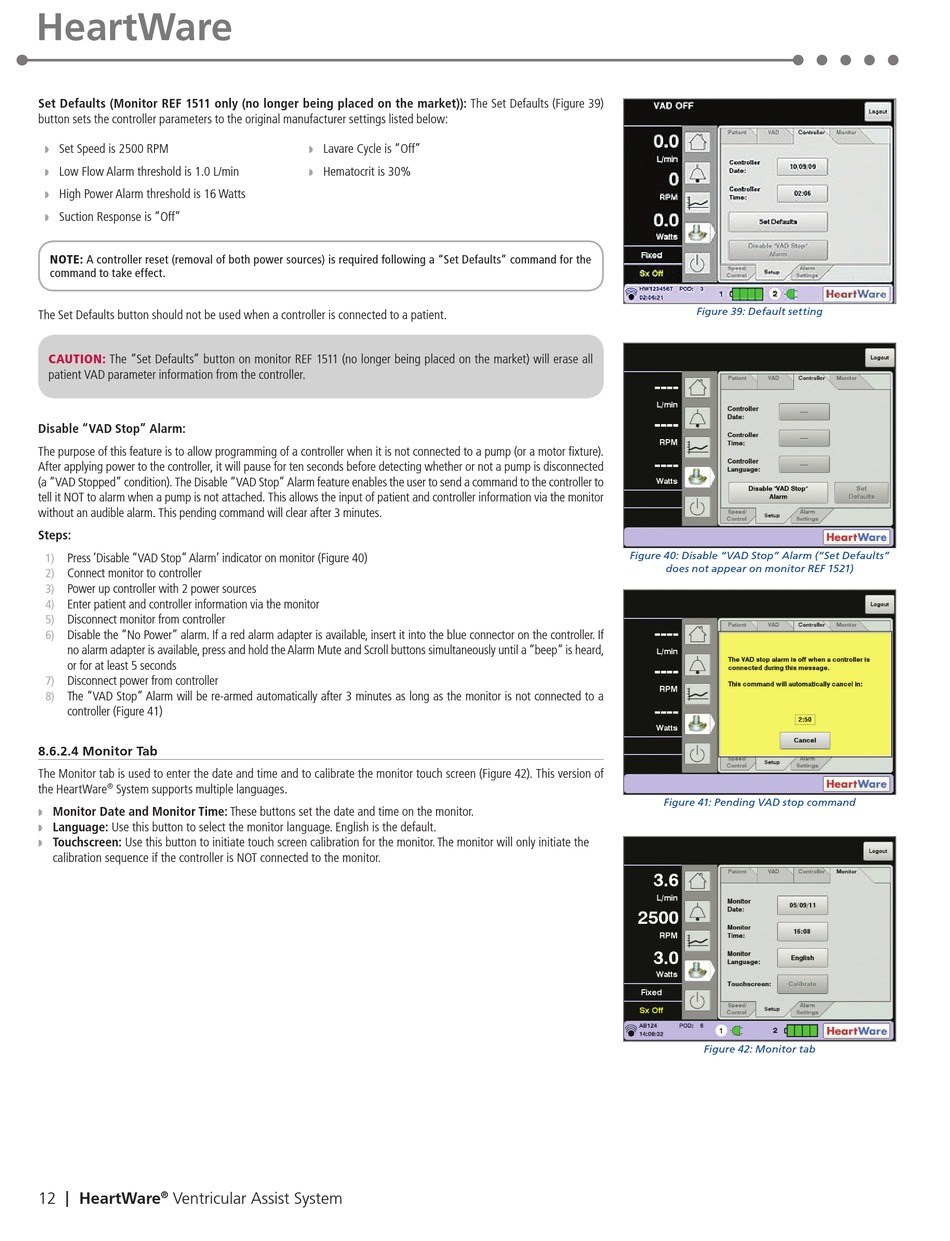

Set Defaults (Monitor REF 1511 only (no longer being placed on the market)): The Set Defaults (Figure 39)
button sets the controller parameters to the original manufacturer settings listed below:
Set Speed is 2500 RPM
◗ ◗
Low Flow Alarm threshold is 1.0 L/min
◗ ◗
High Power Alarm threshold is 16 Watts
◗ ◗
Suction Response is "Off"
◗ ◗
nOTE: A controller reset (removal of both power sources) is required following a "Set Defaults" command for the
command to take effect.
The Set Defaults button should not be used when a controller is connected to a patient.
CaUTiOn:
The "Set Defaults" button on monitor REF 1511 (no longer being placed on the market) will erase all
patient VAD parameter information from the controller.
Disable "VAD Stop" Alarm:
The purpose of this feature is to allow programming of a controller when it is not connected to a pump (or a motor fixture).
After applying power to the controller, it will pause for ten seconds before detecting whether or not a pump is disconnected
(a "VAD Stopped" condition). The Disable "VAD Stop" Alarm feature enables the user to send a command to the controller to
tell it NOT to alarm when a pump is not attached. This allows the input of patient and controller information via the monitor
without an audible alarm. This pending command will clear after 3 minutes.
Steps:
Press 'Disable "VAD Stop" Alarm' indicator on monitor (Figure 40)
1)
2) Connect monitor to controller
Power up controller with 2 power sources
3)
4) Enter patient and controller information via the monitor
5) Disconnect monitor from controller
Disable the "No Power" alarm. If a red alarm adapter is available, insert it into the blue connector on the controller. If
6)
no alarm adapter is available, press and hold the Alarm Mute and Scroll buttons simultaneously until a "beep" is heard,
or for at least 5 seconds
Disconnect power from controller
7)
8) The "VAD Stop" Alarm will be re-armed automatically after 3 minutes as long as the monitor is not connected to a
controller (Figure 41)

8.6.2.4 Monitor Tab

The Monitor tab is used to enter the date and time and to calibrate the monitor touch screen (Figure 42). This version of
the HeartWare ® System supports multiple languages.
Monitor Date and Monitor Time: These buttons set the date and time on the monitor.
◗ ◗
Language: Use this button to select the monitor language. English is the default.
◗ ◗
Touchscreen: Use this button to initiate touch screen calibration for the monitor. The monitor will only initiate the
◗ ◗
calibration sequence if the controller is NOT connected to the monitor.
I
12 HeartWare Ventricular Assist System
®
Lavare Cycle is "Off"
◗ ◗
Hematocrit is 30%
◗ ◗
Figure 39: Default setting
Figure 40: Disable "VAD Stop" Alarm ("Set Defaults"
does not appear on monitor REF 1521)
Figure 41: Pending VAD stop command
Figure 42: Monitor tab
