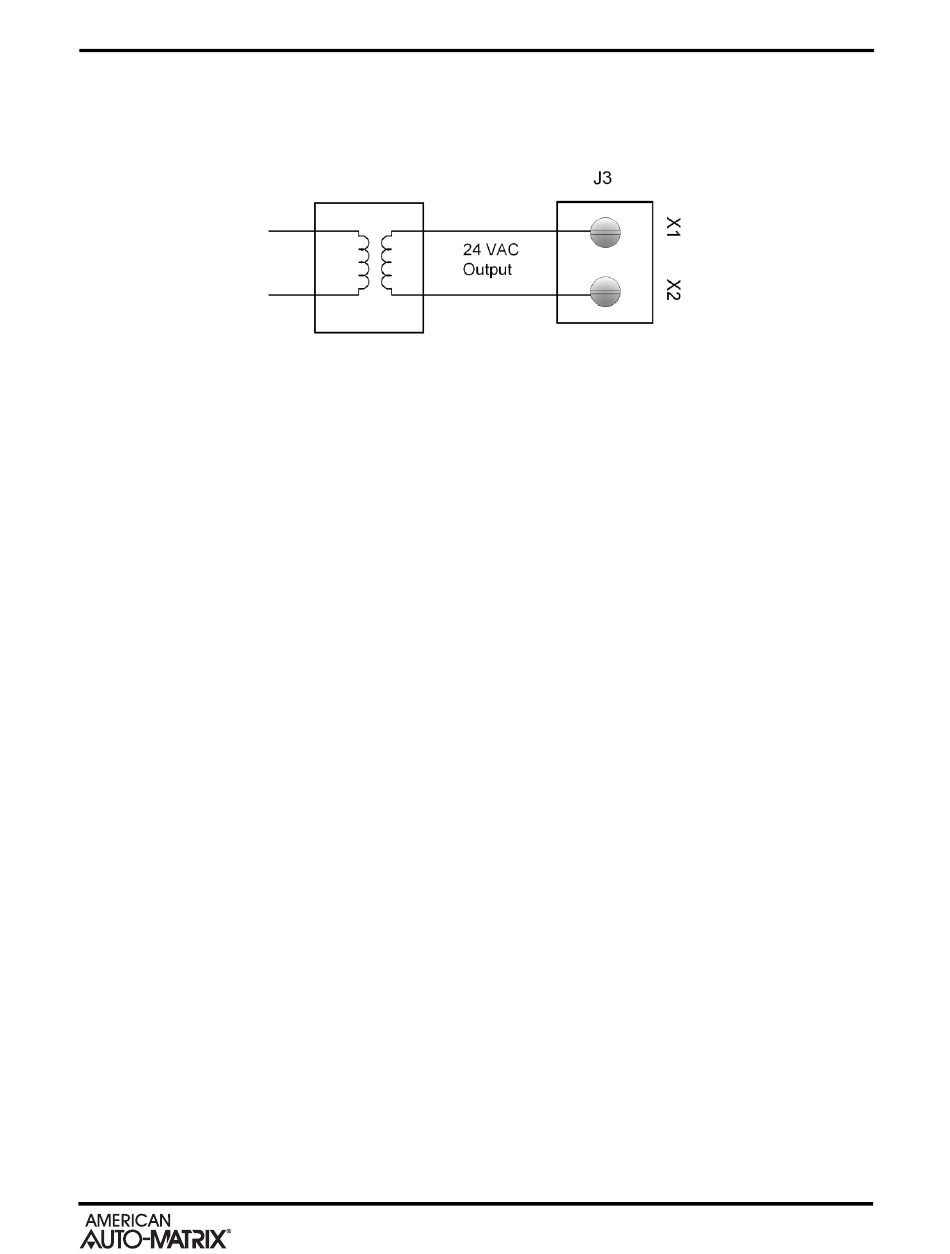

Figure 1-4 Power Connection
1.3.3
LED I
NDICATION
The PCB of the product includes diagnostic LEDs, providing user feedback when power has been
connected to the device. When power is connected, the LEDs should be illuminated. The power
diagnostic LEDs are located along the edge of the board.
1-7
AspectFT-Nexus & AspectFT-Facility Installation Guide (1/02/2014)
