1.2 P M
RODUCT OUNTING
This product ships with an approved enclosure consistent with most electrical standards and regulations.
The product is intended for indoor applications only and should be installed in a location that is dry, and
free from excessive dust, vibration, and electrical interference. Mount the product in a location that allows
clearance for ease of wiring and service. Use the two keyhole-style screw holes located on the back of the
enclosure for assistance with mounting.

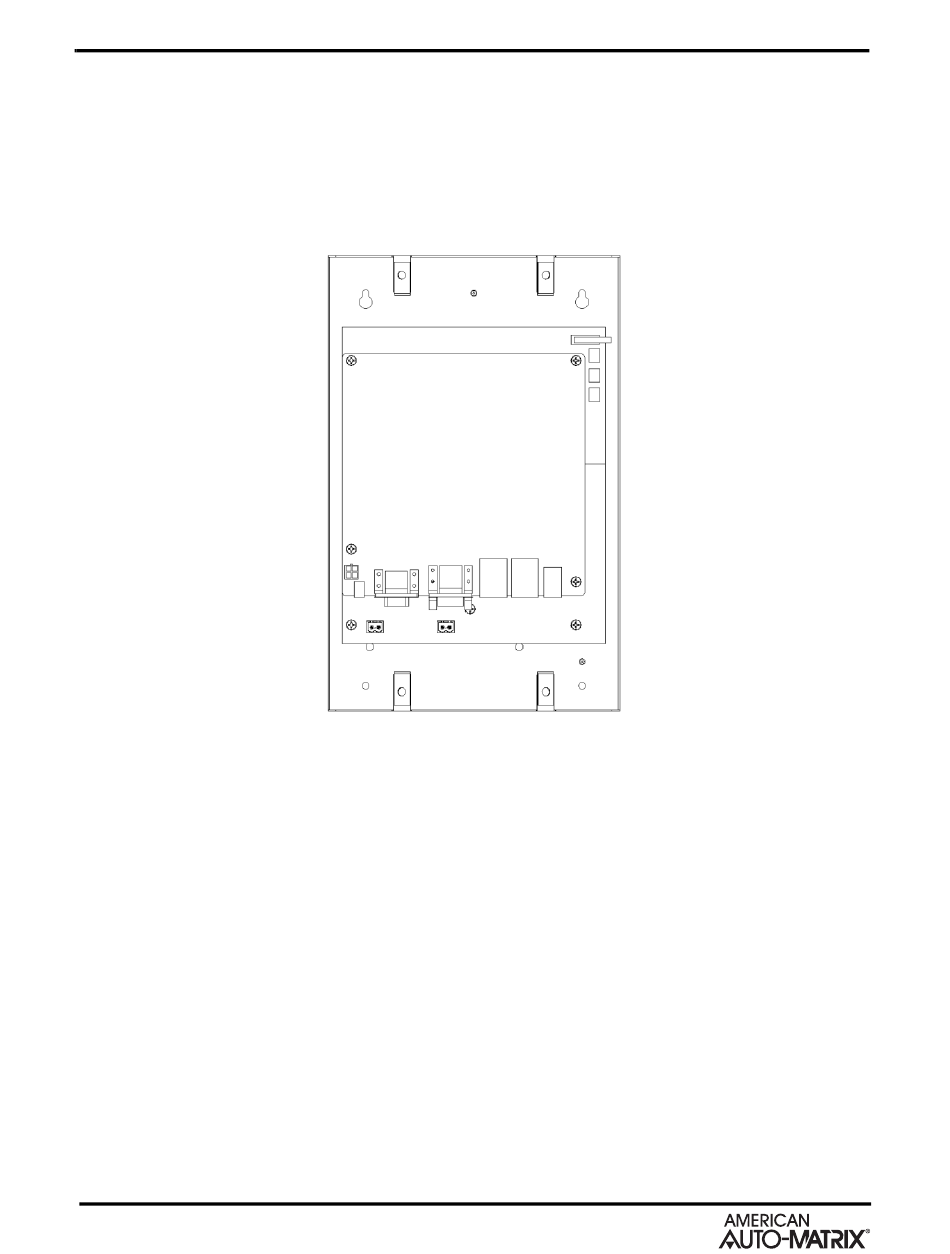

Figure 1-1 AspectFT-Nexus and AspectFT-Facility
1.2.1 E C
NCLOSURE OVER
The enclosure cover of the Nexus controller is designed to be removed for servicing the device. The cover
is removed by unscrewing the 4 hex head screws in the cover then sliding the cover vertically before
pulling it away from the base. Care should be taken when removing the cover on a mounted unit to prevent
it from being dropped and damaging the cover or harming the user.
