1.3 H
ARDWARE
Below is an illustration of the hardware layout of the AspectFT-Nexus and AspectFT-Facility. The device
includes connection ports for main power, EIA-485 connectivity, and Ethernet connectivity.
1.3.1 U P
NUSED ORTS
The motherboard of AspectFT-Nexus and AspectFT-Facility controller contains 3 RS-232 serial ports,
3.5mm audio ports, and a DC support port. These ports contain no field functionality, but are reserved for
future functionality.
1.3.2 P R
OWER EQUIREMENTS
This product requires a transformer capable of providing 24VAC power to the AspectFT-Nexus and
AspectFT-Facility. Use a UL listed Class 2, 24VAC transformer.
To connect power to the product, use the supplied two-position terminal plug. The output leads from the
transformer should be connected to the terminal plug. The terminal plug should then be connected into the
socket on the board. American Auto-Matrix recommends using 18AWG cable for power wiring.
1-6
AspectFT-Nexus & AspectFT-Facility Installation Guide (1/02/2014)
L
AYOUT

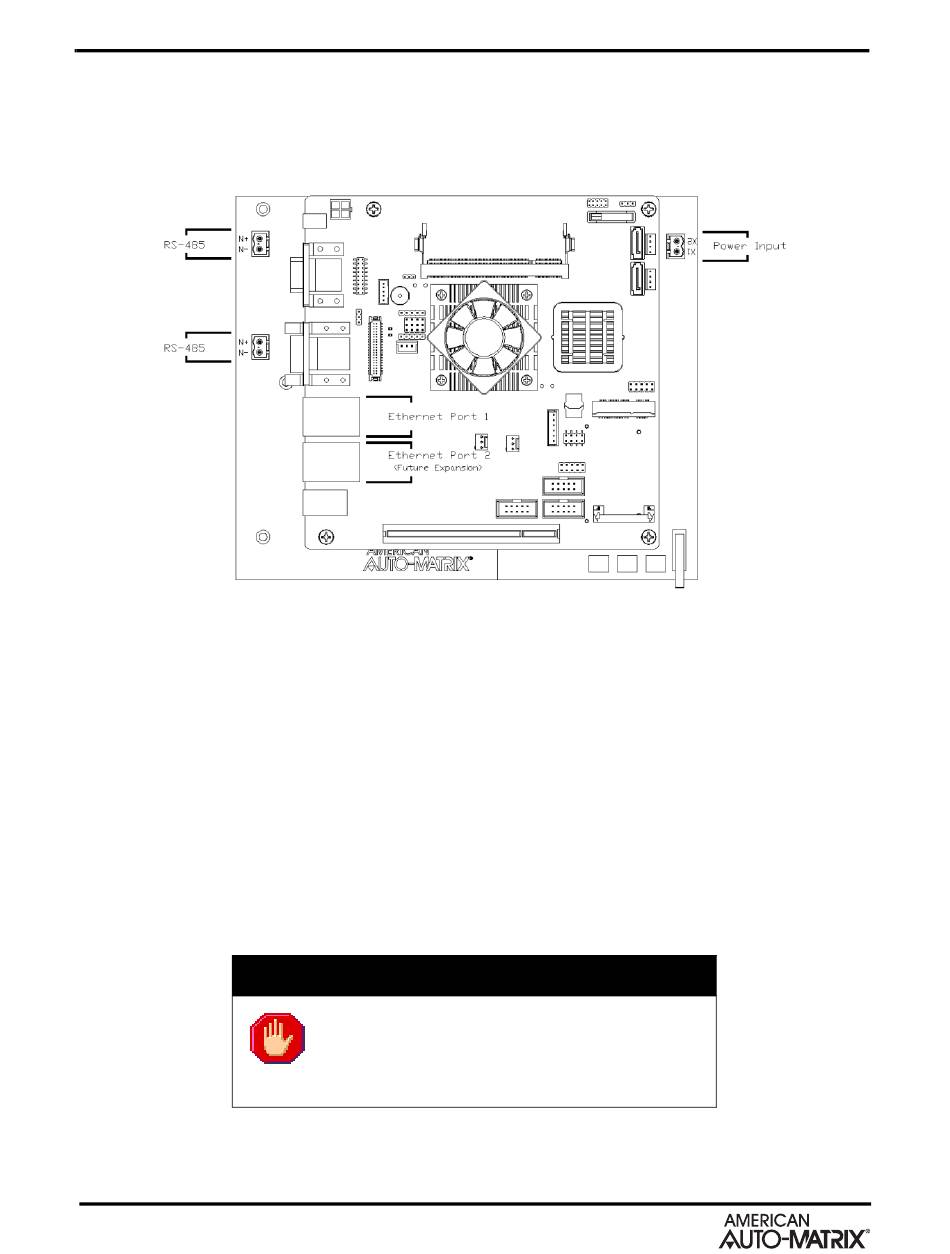

Figure 1-3 Hardware Layout
WARNING
Do not share the power source for the
AspectFT-Nexus and AspectFT-Facility with
other devices. Damage to the product as a
result of improper power and wiring will void
product warranty.
