1.4 C
OMMUNICATION
Communication connections made to device should be made with care. To avoid any possible conflict with
existing network communications, it is recommended that communication port and network configuration
of the device be performed prior to connecting the product to any associated field bus network.
1.4.1 E
THERNET
Ethernet is a high-speed LAN widely used in commercial buildings. The main Ethernet network interface is
located on the motherboard of the product directly next to the serial RS-232 ports. A second Ethernet
connection, located next to the audio ports, is not active for use at this time.
The on-board Ethernet network interface supports 10Base-T (10Mbps), 100Base-T (100Mbps) and
1000Base-T(gigabit) Ethernet connections. The product will automatically switch to 100Base-T operations
if other devices and cabling connected to the same subnetwork support this.
1.4.1.1 C T
ABLE YPE AND
Use an approved Category 5 (CAT5) Ethernet patch cable with RJ-45 plugs to connect the product to an
Ethernet switch or hub. Use professionally manufactured cables to assure transmission rates and
reliability between devices. Maximum length for Category 5 is typically limited to about 320 feet (100
meters).
1-8
AspectFT-Nexus & AspectFT-Facility Installation Guide (1/02/2014)
C
ONNECTIONS
N
ETWORK
L
ENGTH
Pin 8
Reserved
Pin 7
Reserved
Pin 6
Receive -
Pin 5
Reserved

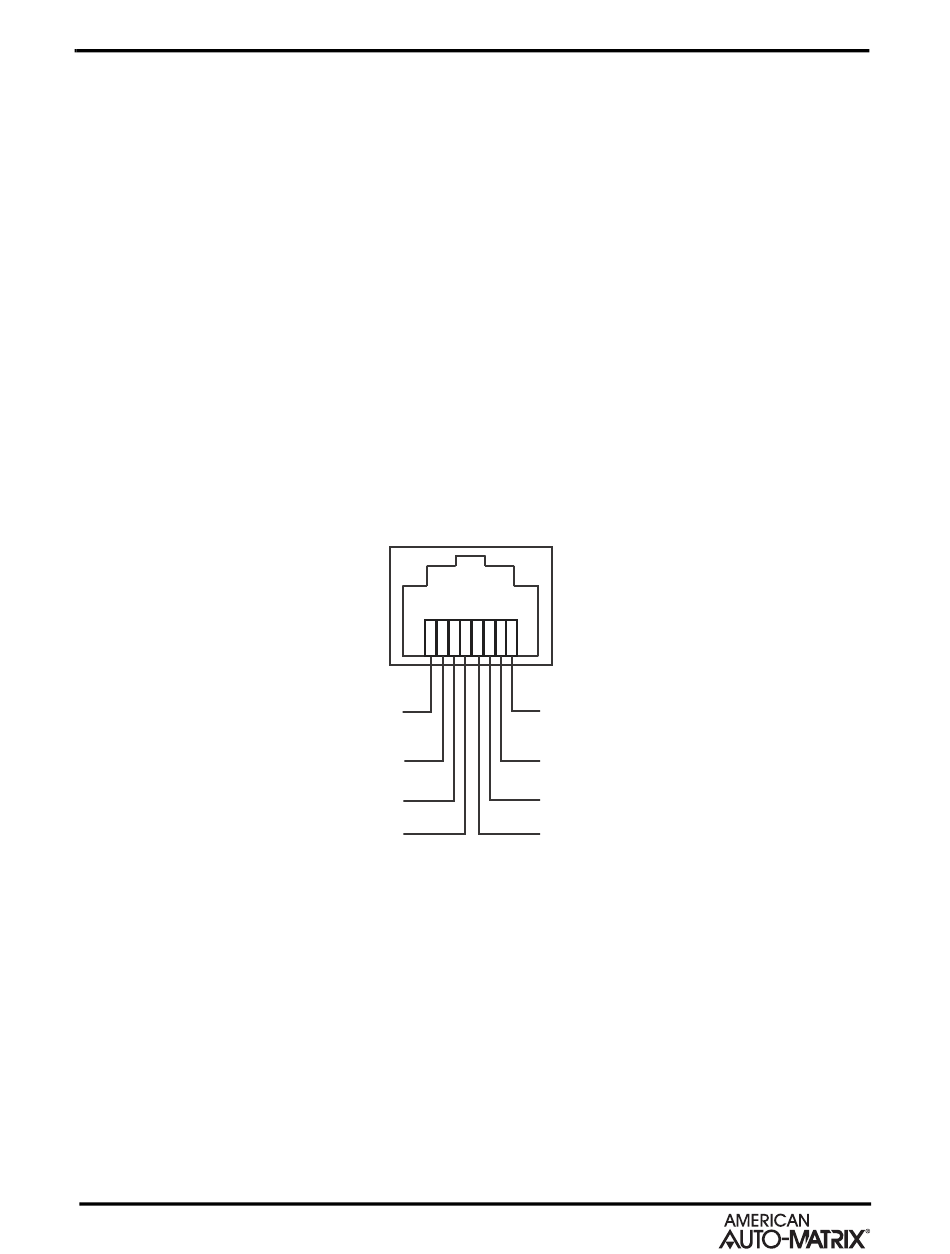

Figure 1-5 Standard Ethernet Connection Pinout
Pin 1
Transmit +
Pin 2
Transmit -
Pin 3
Receive +
Pin 4
Reserved
