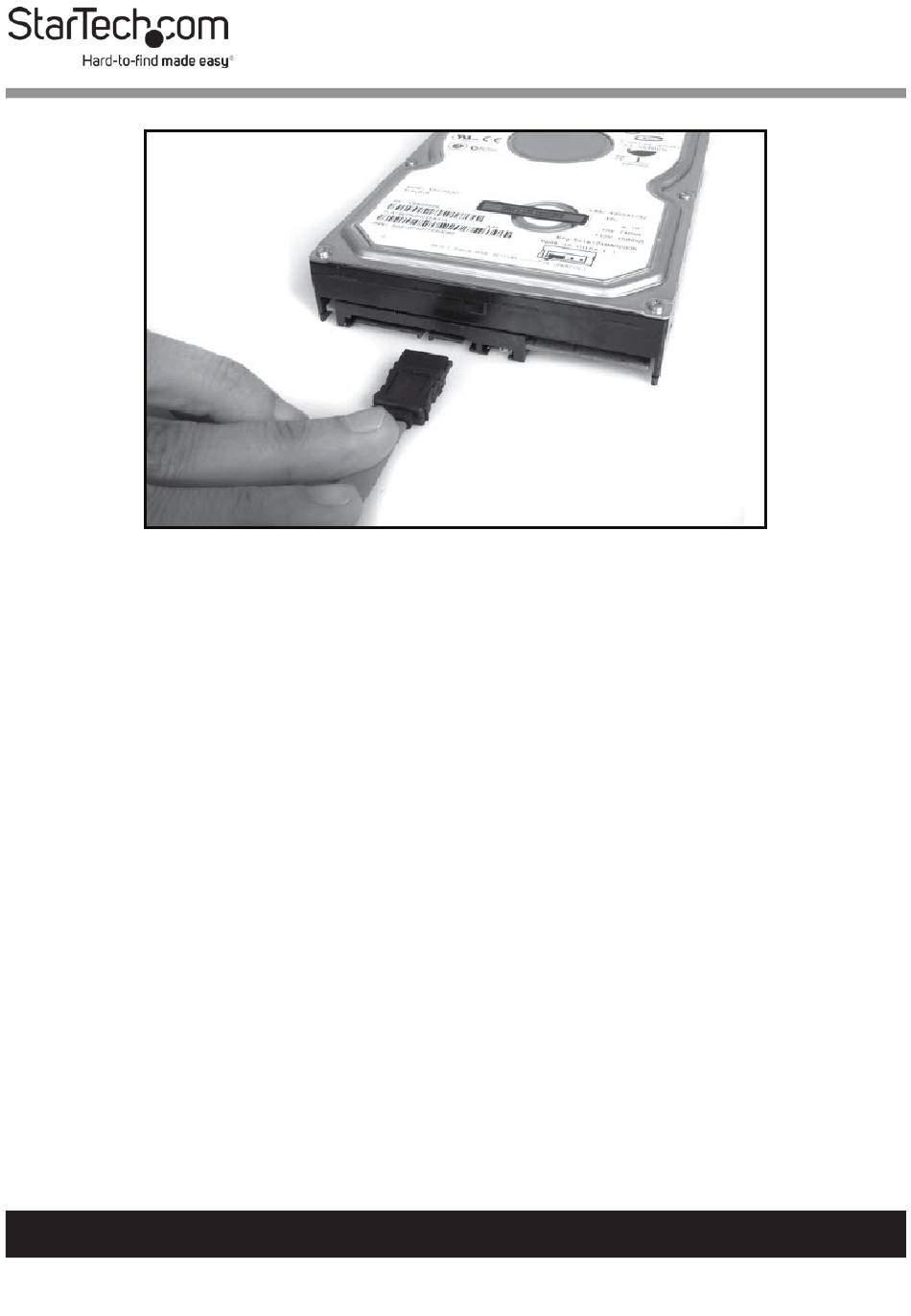

Connecting the SATA Data Cable to the SATA Hard Drive
Connecting a 40/44-pin IDE Drive
Align the IDE Drive Interface on the Hard Drive with either
1.
the 40-Pin IDE Connector or the 44-Pin IDE Connector on the
Adapter.
Insert the IDE Connector (40 or 44-pin) on the Adapter into
2.
the IDE Drive Interface on the Hard Drive. Ensure the drive is
connected tightly to the Adapter.
