Powering up the WP Web HMI Series

To use the Web HMI as a browser, follow these steps to connect the device to a web-server.
1. Connect an Ethernet cable to the device.
2. Power up the device using 24VDC power supply by connecting it to the device's pluggable terminal block.
3. If the browser or the firmware needs to be updated, connect a USB flash drive to the device.

Getting started with the Web HMI

Main Settings

Settings

Entering into device settings

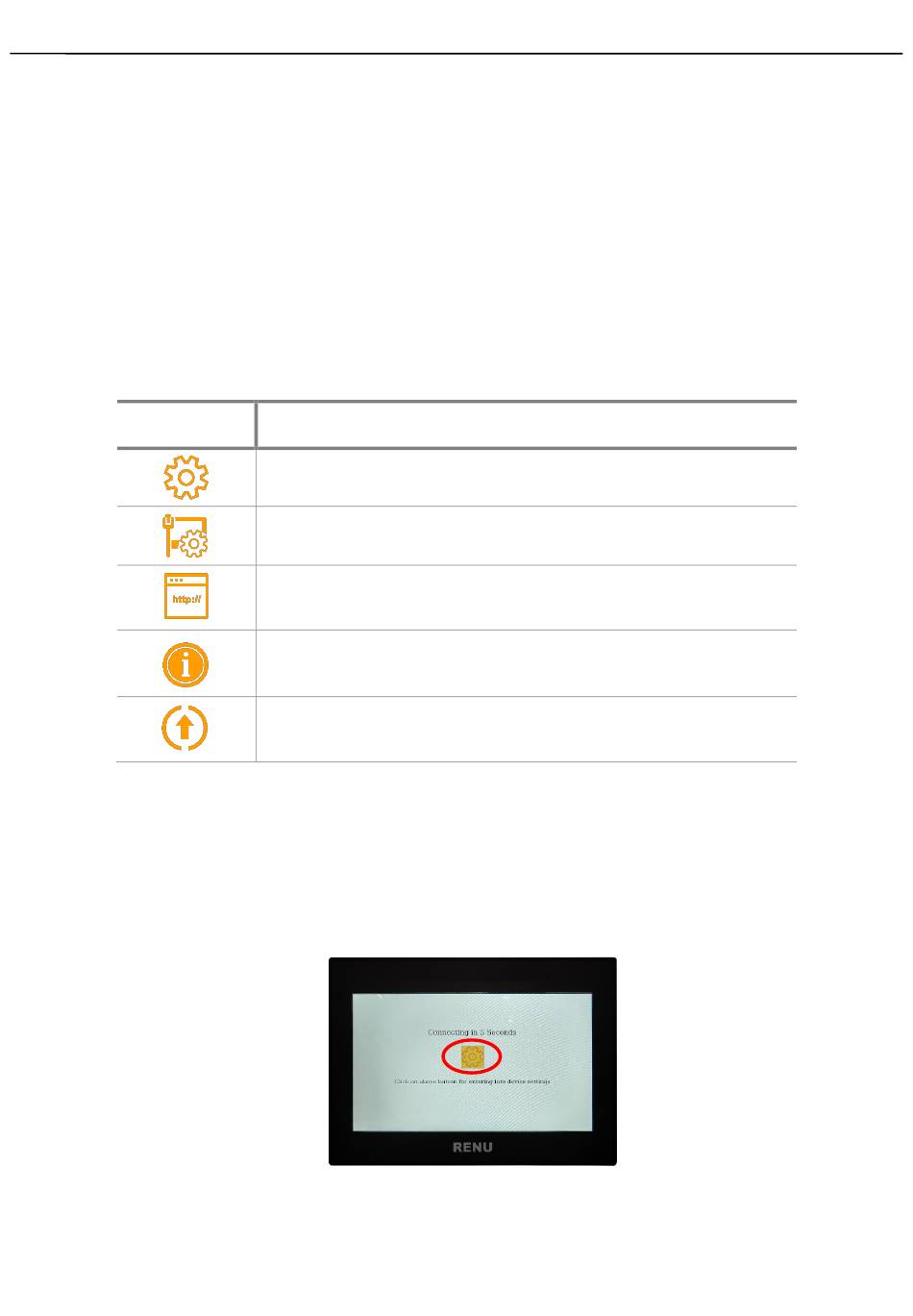

1. At power on the user will see the screen as shown below. To change configuration of the device, press
the button within 5 seconds to enter into device configuration settings.
Description
Configuration button. This button is used to enter into device
configuration.
Device Settings button. Settings for Network, Calibration, Password
and Brightness can be accessed using this button.
URLs Settings button.
Device Information button.
Update button.
