Communication Interfaces

This section provides detailed information regarding various communication interfaces supported by the Web HMI
series.
Interfaces
USB Device*
USB Host
RJ45/Ethernet
[Note*: The USB Device port is placed for development purposes only.]

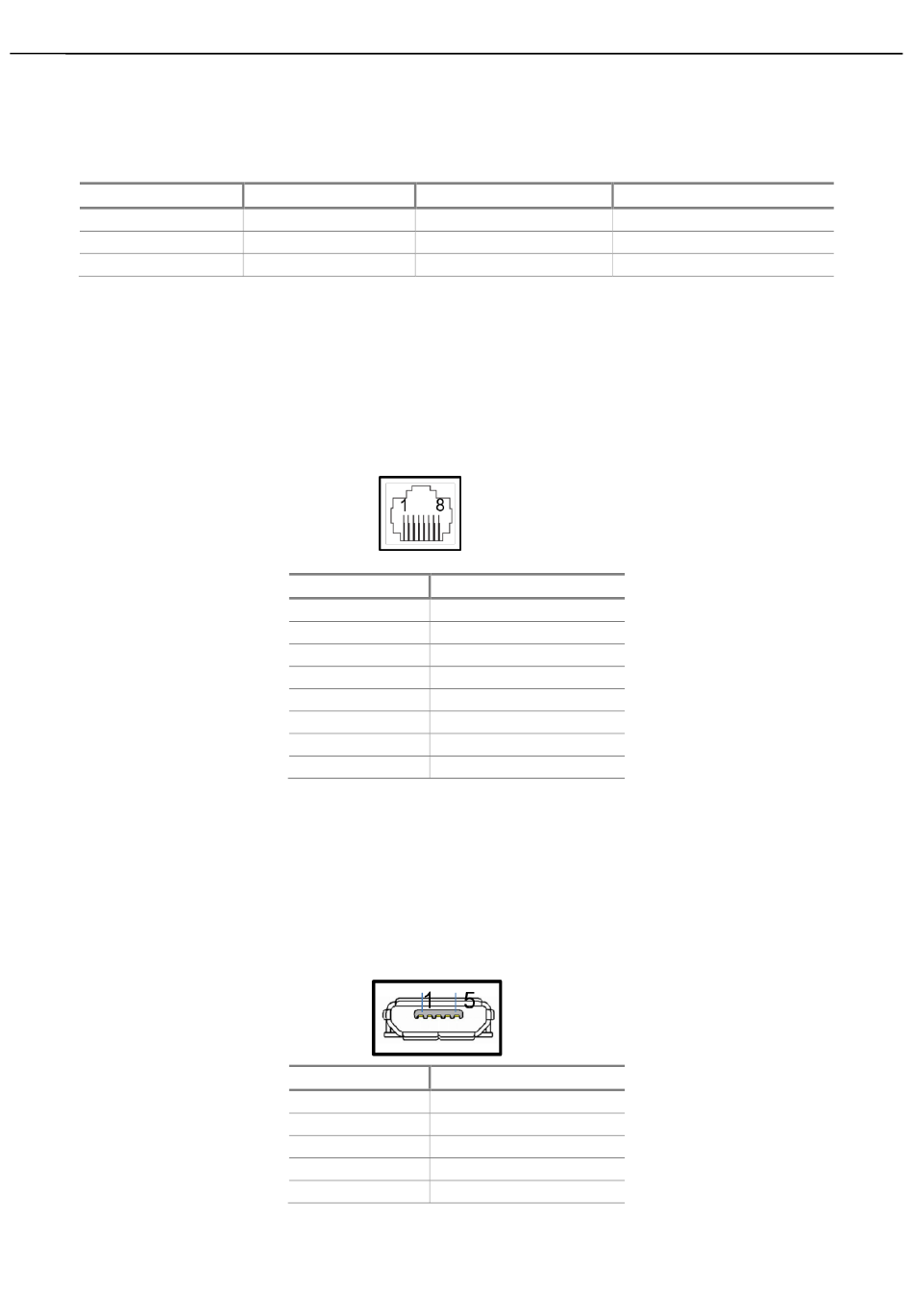

RJ45/Ethernet Port

The Web Panel HMI series devices come with an in-built RJ45/Ethernet port. The RJ45 port is a shielded female jack
with link and activity LEDs.

USB Slave Port

The Web HMI comes with a USB slave device port that is USB 2.0 compliant. This port is for future use.
Connector used: Micro USB Type B Female
WP6043TN WP6070TN
1x micro 2.0 1x micro 2.0
1x 2.0 1x 2.0
1x 10/100 Mbps 1x 10/100 Mbps
Pin number
1
2
3
4
5
6
7
8
Pin number
1
2
3
4
5
© RENU Electronics Pvt. Ltd.
Signal
TX+
TX-
RX+
NC
NC
RX-
NC
NC
Signal
VCC
D-
D+
NC
GND
WP6101TN
1x micro 2.0
1x 2.0
1x 10/100 Mbps
