Page 1: Installation Guide

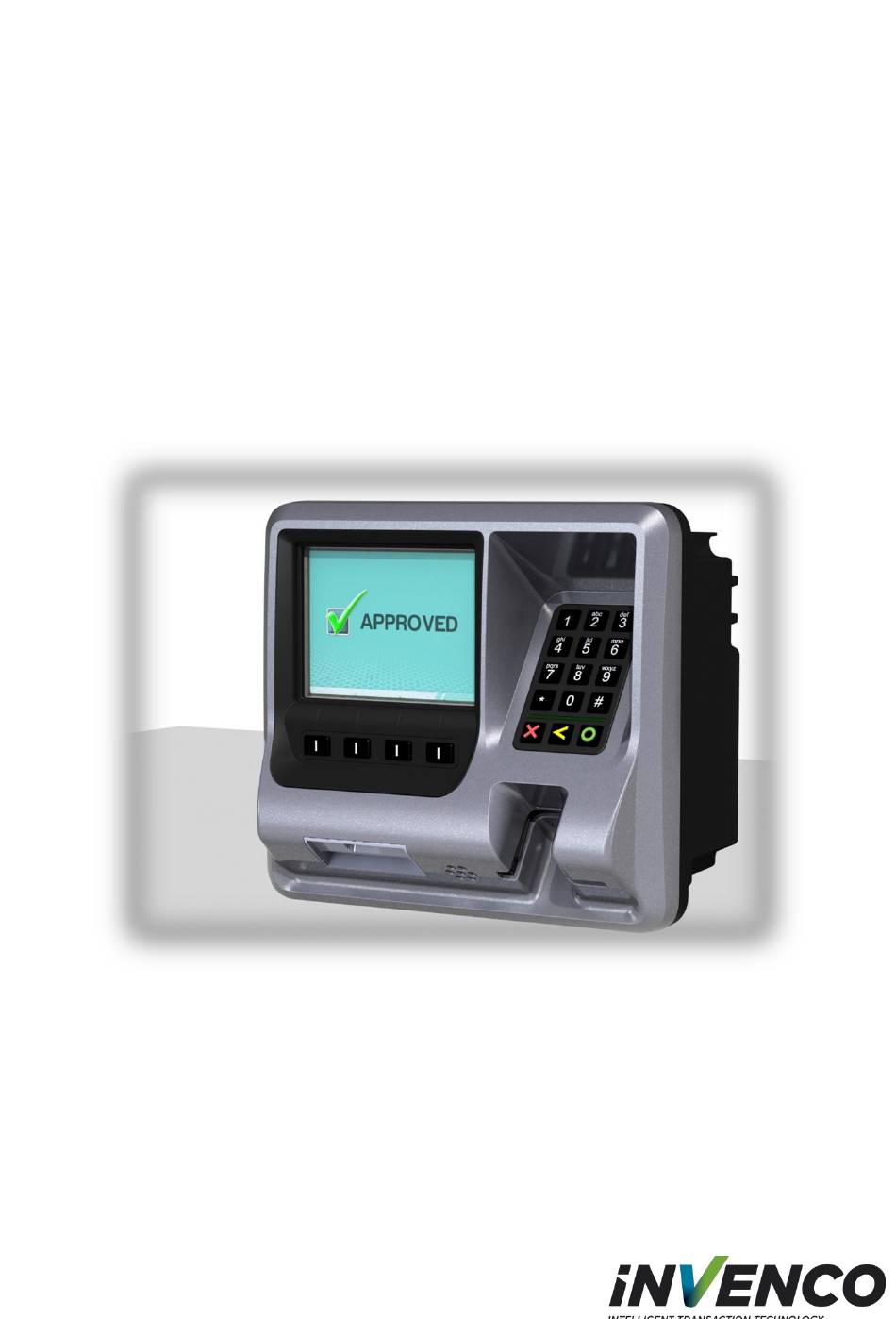

Invenco Group Limited Proprietary & Confidential G6 OPT Installation Guide DCV-00001 – Revision 1 October 2016... -
Page 2: Table Of Contents
Invenco Group Limited Proprietary & Confidential Table of Contents Introduction .....................4 Safety & Compliance Information ............5 Preliminary Precautions ..............5 Emergency Total Electrical Shut-Off ...........5 Total Electrical Shut-Off Before Access ........5 Evacuation, Barricading and Shut-Off .........5 Read the Manual .................5 Follow the Regulations ..............5 Replacement Parts ..............5... - Page 3 Invenco Group Limited Proprietary & Confidential 3.4.2 Serial Port Parameters ..............12 Installation ..................... 13 Considerations for New Enclosures .......... 13 Tools Required ................15 In A New Pump or Cabinet ............16 Replacement of a G5 Product ........... 17 4.4.1 Power Supply Considerations ............
-
Page 4: Introduction

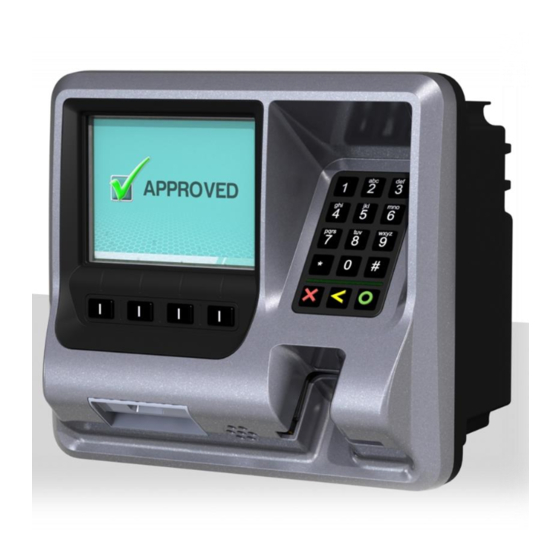

Invenco Group Limited Proprietary & Confidential 1 Introduction Congratulations on your purchase of a Generation 6 Outdoor Payment Terminal (G6 OPT). This product is the result of years of development and experience crafting terminal products for the retail petroleum industry and represents the state of the art in equipment for your customers. -
Page 5: Safety & Compliance Information
Read, understand and follow this manual and any other labels or related materials supplied with this equipment. If you do not understand a procedure, call an Invenco Authorized Service Contractor. It is imperative to your safety and the safety of others to understand the procedures before beginning work. -
Page 6: Safety Symbols And Warning Words
Invenco Group Limited Proprietary & Confidential 2.8 Safety Symbols and Warning Words This section provides important information about warning symbols and boxes. Alert Symbol: This safety alert symbol is used in this manual to alert you to a precaution which must be followed to prevent potential personal safety hazards. -
Page 7: Hazardous Materials
All Invenco Group Ltd., computer programs (including software on discs and within memory chips) and documentation are copyrighted by, and shall remain the property of, Invenco Group Ltd. Such computer programs and documents may also contain trade secret information. The duplication, disclosure, modification, or unauthorized use of computer programs or documentation is strictly prohibited, unless otherwise licensed by Invenco Group Ltd. -
Page 8: Hazardous Locations
Invenco Group Limited Proprietary & Confidential 2.19 Hazardous Locations The G6 OPT is suitable for use in Class I, Division 2, Group D, Temperature Class T4 OR non- hazardous locations only. WARNING – EXPLOSION HAZARD – Do not connect or disconnect equipment unless power has been removed or the area is known to be non-hazardous. -
Page 9: Important Radio, Fcc And Interference Information
Invenco Group Limited Proprietary & Confidential 2.21 Important Radio, FCC and Interference Information Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. As stated on the device: This device complies with Part 15 of the FCC Rules. Operation is... -
Page 10: Product Features
Invenco Group Limited Proprietary & Confidential 3 Product Features 3.1 Location of Features Label is indicative only and may vary. -
Page 11: Accessories In The Box
Invenco Group Limited Proprietary & Confidential 3.2 Accessories in the box 1. Spindle for Paper Roll retention 2. Paper Roll 57mm x 110mmDia, 72gsm, thermal, top-coated, outdoor rated. Recommended replacement paper is NCR, P/N 0202090 3. Mounting screws Stainless Steel, M4 x 10mm, 12 pieces (Use Hex or Allen 3mm screw driver) 4. -
Page 12: Electrical Ratings
Invenco Group Limited Proprietary & Confidential 3.4 Electrical Ratings 3.4.1 G6 OPT Parameters V = 24V DC I = 1.5A 3.4.2 Serial Port Parameters Voc = 10V DC (both polarities may be present on the connector, depending on signalling) ... -
Page 13: Installation
RJ45 plug suitable for direct connection into the OPT LAN socket. iii. Minimum cable standard should be Cat5e c. The enclosure may provide an alternative data connection for terminals that have optional communications modules installed. Please consult with Invenco for what options are available. 5. Accessibility The enclosure must be designed and mounted so that disabled persons are able to operate the OPT. - Page 14 Invenco Group Limited Proprietary & Confidential the G6 OPT. This will ensure there is a clearance between the G6 OPT housing and the opening. Right-side hinging is recommended by Invenco. Description Photo reference Side hinging points diagram. Top-bottom hinging diagram.
-
Page 15: Tools Required
Invenco Group Limited Proprietary & Confidential of rain splashes entering the electronics but the enclosure must provide good protection from water. The door should have a water seal against the enclosure, and there should be good drainage and/or a system to reduce excessive condensation build-up and dripping. -
Page 16: In A New Pump Or Cabinet
Invenco Group Limited Proprietary & Confidential 4.3 In A New Pump or Cabinet When the doors have been pre-fabricated the G6 OPT mounting can take place: Unpack the G6 OPT from its packing. There will be twelve M4x8mm screws for mounting the G6 OPT. -
Page 17: Replacement Of A G5 Product
The G6 OPT draws considerably more power than the older terminals and while two terminals will likely operate from a single supply, Invenco does not guarantee error-free operation when coupling 2 OPTs to a single PSU unless the PSU is rated to handle the power demands of both OPTs and validated against the full test scenarios. -
Page 18: Selection Of Retrofit Options
Retain the Ethernet cable for later reconnection. Disconnect the low-voltage cable from the power supply and replace it with either: cable EK0070 (available from Invenco), or the cable specified and supplied by your customer. Remove the plastic front bezel around the G5 OPT and discard. -
Page 19: Retrofit Kit Parts
Invenco Group Limited Proprietary & Confidential Place the G6 OPT face-down onto a soft clean surface. Stick the mounting gasket onto the OPT. Peel the thin backing off to expose the adhesive. Carefully align the gasket over the mounting surface. -
Page 20: Wiring
Invenco Group Limited Proprietary & Confidential 4.5 Wiring Three connections need to be made to the G6 OPT: 1. Protective Earth 2. Ethernet LAN 3. DC Power supply The DC power supply cable also needs to be connected to the power supply. -
Page 21: Main Power Supply Wiring
Invenco Group Limited Proprietary & Confidential 4.5.4 Main Power Supply Wiring The other end of the low-voltage DC Cable is connected into the AC-DC power supply as below: Note: If retrofitting in place of a G5 OPT, the power supply may be able to be re-used. In this case the old 24V DC cable that powered the G5 OPT must be disconnected and replaced with the new cable for the G6 OPT. -
Page 22: First Power-Up
Invenco Group Limited Proprietary & Confidential 5 First Power-Up Once the installation is complete and the wiring is certified (if necessary), the main power may be switched on. The G6 OPT takes a couple of minutes to complete its start-up phase during which several information screens will be presented (these vary depending on the customer). -
Page 23: Basic Maintenance
6.2 Paper-Roll Replacement (only for models with printer) The G6 OPT has a precision printer mechanism that will give a long life when handled well. After extensive testing, Invenco recommends only the following paper be used in the G6 OPT: Manufacturer:... - Page 24 Invenco Group Limited Proprietary & Confidential Step Description Photo reference Ensure the paper roll has a neat cut edge. Remove spindle from the paper holder position Insert roll in place – the paper tension flap is spring-loaded so you will need to apply some pressure.
-
Page 25: Clearing A Paper Jam (Only For Models With Printer)
Invenco Group Limited Proprietary & Confidential 6.3 Clearing a Paper Jam (only for models with printer) DO NOT use sharp tools (scissors, screwdriver, etc) to clear a paper-jam. The printer is a precision mechanism that can be easily damaged by hard sharp objects. Damage resulting from sharp objects is not covered under warranty. - Page 26 Invenco Group Limited Proprietary & Confidential Close the Printer. Printer unlatched Press the lever until the arrows are aligned. Arrows aligned...
-
Page 27: Security Checks
Invenco Group Limited Proprietary & Confidential 6.4 Security Checks The purpose of this section is to outline how vendors and customers of the G6OPT device are to perform regular security checks for the insertion of PIN or ICC disclosing bugs on or in the G6OPT. - Page 28 Invenco Group Limited Proprietary & Confidential 6.4.1.2 Card-Reader Slot Visual inspection of the G6OPT for ICC bugs can be performed by comparing the following photo’s of the G6OPT card-reader slot to the G6OPT being inspected. The following aspects must be considered during this inspection: ...
-
Page 29: Escalation
Contact the vendor’s security person or support desk immediately. If neither of the two afore mentioned contacts are available, contact Invenco’s security officer at the Auckland address detailed at the end of this document. Notify local law-enforcement immediately. -
Page 30: Removal & Reinstallation
Invenco Group Limited Proprietary & Confidential 7 Removal & Reinstallation If the G6 OPT needs to be removed from its installation, please follow these steps: Step Description Ensure the terminal is not being used by a customer. Open the pump/pedestal door. - Page 31 Invenco Group Limited Proprietary & Confidential Follow the steps below to reinstall a G6 OPT: Step Description If you are swapping one G6 OPT for another, proceed to step 2. To prepare the terminal, you will need to remove the existing sealing gasket and replace it with a new one.
-
Page 32: Drawings
Invenco Group Limited Proprietary & Confidential 8 Drawings 8.1 Dimensions... - Page 33 Invenco Group Limited Proprietary & Confidential...
-
Page 34: Mounting - New Installation
Invenco Group Limited Proprietary & Confidential 8.2 Mounting – New Installation Note: This drawing is not to scale – Do NOT use as a template. - Page 35 Invenco Group Limited Proprietary & Confidential...
-
Page 36: Retrofit For G5 Opt With Motorised Card Reader
Invenco Group Limited Proprietary & Confidential 8.3 Retrofit for G5 OPT with Motorised Card Reader... -
Page 37: Retrofit For G5 Opt With Manual Card Reader
Invenco Group Limited Proprietary & Confidential 8.4 Retrofit for G5 OPT with Manual Card Reader... -
Page 38: Typical Wiring
Invenco Group Limited Proprietary & Confidential 9 Typical Wiring... -
Page 39: Notes
Invenco Group Limited Proprietary & Confidential 10 Notes... - Page 40 The information in this document is subject to change without notice and should not be construed as a commitment by Invenco Group Ltd. Invenco Group Ltd has taken great effort to verify the accuracy of this document but assumes no responsibility for any technical inaccuracies or typographical errors.
