Weld seam detection system for coils, wires, cables and lines
Hide thumbs Also See for R4000:
Table of Contents

Advertisement

Quick Links

Download this manual

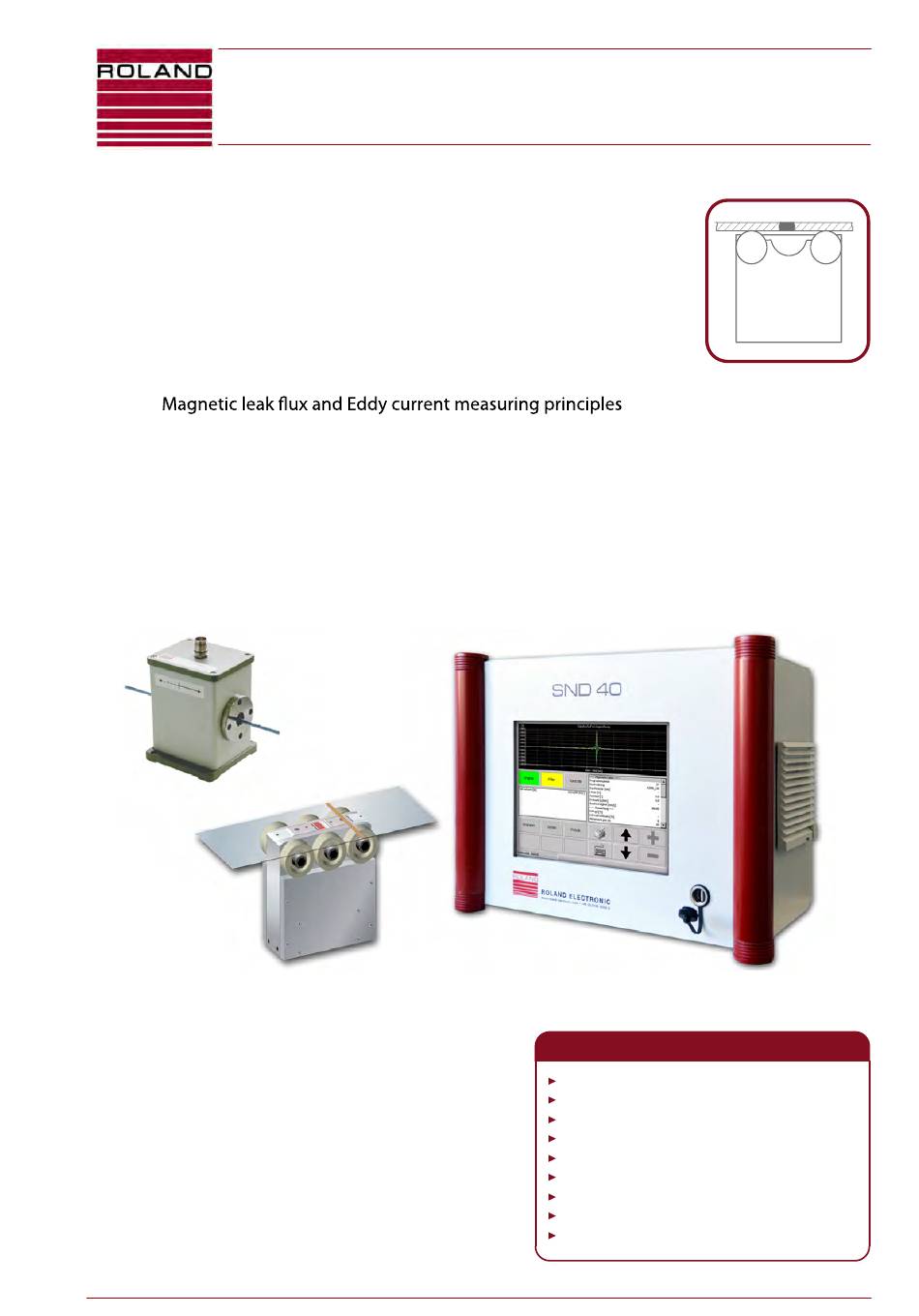

Weld Seam Detector SND40
for Coils, Wires, Cables and Lines
►
Detection of butt welds and lashes
►
Detection of changes in structure of material
►
►
Sensor signal in recorder-like visualization
►
Industrial standard interfaces for automation
►
Graphical user interface with 10 inch touchscreen
►
Data backup via USB or Ethernet
Weld Seam Detection System R4000 SND40
QUICK MENU:
Technical Data ............................... 11
Start-up ........................................... 71
Menu tree ........................................ 72
Operation ........................................ 77
Fault messages ............................ 91
Timing diagrams ........................... 105
Service ............................................ 112
Order data ....................................... 121
Checklist for Fault detection ........ 123
