Page 1: User Manual

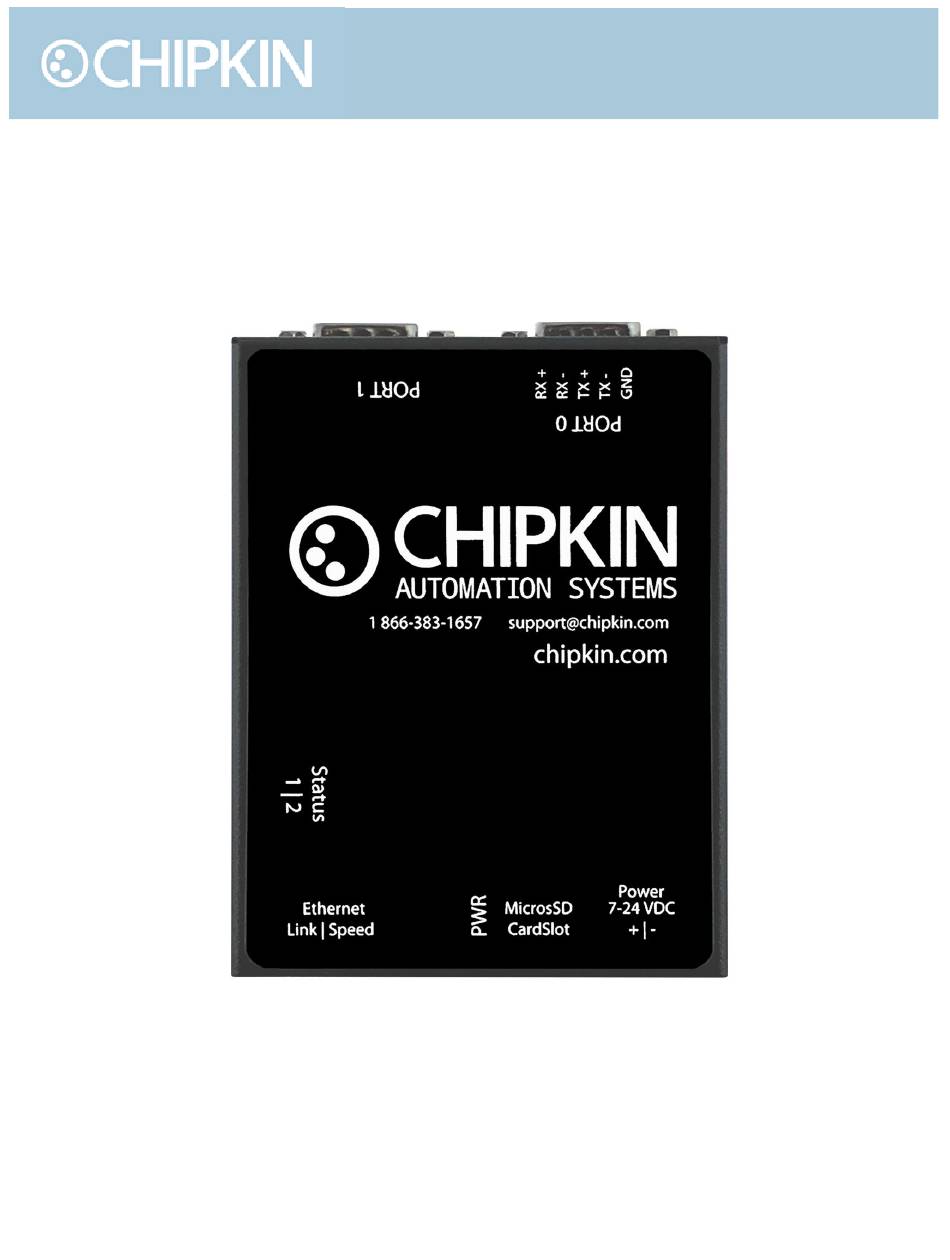

Toll Free: 1 866 383-1657 3381 Cambie St., #211 Vancouver, BC Canada V5Z 4R3 Chipkin™ CAS 2700 HTTP Push USER MANUAL VERSION: 0.08 PRODUCT NUMBER: CAS‐2700 DOCUMENT REVISION: 1... -
Page 2: Table Of Contents
™ CAS 2700 HTTP Push Chipkin™ User Manual TABLE OF CONTENTS TABLE OF CONTENTS ............................2 LIST OF FIGURES ..............................3 LIST OF TABLES ..............................3 COPYRIGHT & TRADEMARKS ........................... 4 DISCLAIMER ................................4 CONFIDENTIALITY ............................... 4 DOCUMENT REVISION HISTORY ........................4 1. -
Page 3: List Of Figures
™ CAS 2700 HTTP Push Chipkin™ User Manual LIST OF FIGURES Figure 3.1-1. Network Connections Block Diagram .................... 7 LIST OF TABLES Table 1 - Document Revision History ........................4 Table 2 - Communication ports ..........................8 3381 Cambie Street, #211 ©... -
Page 4: Copyright & Trademarks
Therefore, Chipkin Automation Systems shall not be liable for omissions or missing data. It is not the intension of this user manual to instruct service technicians in using common sense, basic skills and rules of service repair. -
Page 5: Preface
CUSTOMER SUPPORT Chipkin is a small responsive company, and we live or die by the quality of our service—and with offices in two time-zones—we can provide support when you need it. For information on sales, service, obtaining documentation or submitting a service request, please call us toll free at 1-866-383- 1657. - Page 6 ™ CAS 2700 HTTP Push Chipkin™ User Manual SALES AND CUSTOMER SUPPORT TOLL FREE: 1-866-383-1657 FAX: 1-416-915-4024 salesgroup1@chipkin.com EMAIL GENERAL TOLL FREE: 1-866-383-1657 FAX: 1-416-915-4024 support@chipkin.com EMAIL: SHIPPING ADDRESS 3381 Cambie St., #211 Vancouver, BC, Canada V5Z 4R3 3381 Cambie Street, #211 ©...
-
Page 7: Connections
™ CAS 2700 HTTP Push Chipkin™ User Manual 2. CONNECTIONS NETWORK CONNECTIONS This block diagram lists common network connections that can monitor and control data from HTTP devices using BACnet IP, Modbus RTU/TCP, etc. Figure 2.1-1. Network Connections Block Diagram 3381 Cambie Street, #211 ©... -
Page 8: Comuncation Ports
™ CAS 2700 HTTP Push Chipkin™ User Manual COMUNCATION PORTS The Gateway uses the following ports for communication: Protocol Port Notes HTTP TCP 80 Web server. BACnet IP UDP 47808 Default port, can be configured. Modbus TCP TCP 502 Default port, can be configured. -
Page 9: Http Push Configuration
JSON or Veeder JSON. These will be described in more detail below. If a specific format is required (JSON, XML, or other), please contact Chipkin to discuss. To access the configuration page, open a web browser and type in the following url: http://{ipaddress}/bin/httppush/config where {ipaddress} is the IP Address of the CAS Gateway. - Page 10 ™ CAS 2700 HTTP Push Chipkin™ User Manual You will see the following page: Figure 3-2.2-2 HTTP Push Config 3381 Cambie Street, #211 © 2018 Chipkin Automation Systems Vancouver, BC, Canada, V5Z 4R3 All rights reserved 1-866-383-1657 Chipkin.com Page 10 of 22...
-
Page 11: End Point Configuration
™ CAS 2700 HTTP Push Chipkin™ User Manual End Point Configuration First add an end point. Click on the End Points “insert” link to add a new end point. Figure 3.1-1 End Point Insert Link You will see the following form: Figure 3.1-2 End Point Form... - Page 12 ™ CAS 2700 HTTP Push Chipkin™ User Manual • Port – The port to use when pushing data. Default: 80 • Url – The url end point of where to send the data payload. Once the fields are filled, click the “Add End Point” button. If successful, you will see a new entry on the main configuration page as seen below: Figure 3.1-3 End Point added successfully...
-
Page 13: Method And Headers Configuration
™ CAS 2700 HTTP Push Chipkin™ User Manual Method and Headers Configuration Next, add a method and headers to the end point. Click on the Methods and Headers “insert” link to add a new one. Figure 3.2-1 Method and Headers Insert Link... -
Page 14: Select End Point
™ CAS 2700 HTTP Push Chipkin™ User Manual Figure 3.2-2 Method and Headers Form Select End Point First, select the End Point to use from the drop-down box. This will include a list of all the end points that have been configured. -
Page 15: Header Configuration
• Default JSON – uses Chipkin’s default JSON payload • VeederRoot JSON – a specific payload for Veeder Root data If you require a specific payload (JSON format, XML schema, CSV, etc), please contact Chipkin to discuss your requirements. HTTP Methods Select either PUT or POST as the HTTP Method for sending the data payload. - Page 16 ™ CAS 2700 HTTP Push Chipkin™ User Manual Figure 3.2-3 Method and Header added successfully 3381 Cambie Street, #211 © 2018 Chipkin Automation Systems Vancouver, BC, Canada, V5Z 4R3 All rights reserved 1-866-383-1657 Chipkin.com Page 16 of 22...
-
Page 17: Task Configuration
™ CAS 2700 HTTP Push Chipkin™ User Manual Task Configuration Finally, add tasks that will package the data and send the payload. To add a task, click on the Task Configuration “Insert” link as seen below: Figure 3.3-1 Tasks Insert Link Depending on what Data Method was selected in step 3.2, a different form is displayed. - Page 18 ™ CAS 2700 HTTP Push Chipkin™ User Manual Figure 3.3-2 Default JSON Form First, select the End Point and Method of where to send the data. Next, fill out the form with the following fields: • Task Name – The name of the task, this is used just for identification.
-
Page 19: Veederroot Json
™ CAS 2700 HTTP Push Chipkin™ User Manual Figure 3.3-3 Default JSON Task added successfully VeederRoot JSON If using the VeederRoot JSON method you will see the following form: 3381 Cambie Street, #211 © 2018 Chipkin Automation Systems Vancouver, BC, Canada, V5Z 4R3... - Page 20 ™ CAS 2700 HTTP Push Chipkin™ User Manual Figure 3.3-4 VeederRoot JSON Form First, select the End Point and Method of where the data will be pushed. Next, fill out the Frequency field to specify how often in seconds to push the data.
- Page 21 ™ CAS 2700 HTTP Push Chipkin™ User Manual Figure 3.3-5 VeederRoot JSON Task added successfully 3381 Cambie Street, #211 © 2018 Chipkin Automation Systems Vancouver, BC, Canada, V5Z 4R3 All rights reserved 1-866-383-1657 Chipkin.com Page 21 of 22...
-
Page 22: Thank You
With Chipkin you are buying a solution. Our configuration expertise in this field combined with free BACnet tools and other tools ensure your success; and our customer support via phone, email and remote desktop tools means that we’re there when you need us.
