Humanscale MedLink Pro User Manual page 55

2. Click on the "Move Drawer" button.
NOTE: If you are logged in as a user without the move Drawer permission enabled you will not see the move Drawer
button.

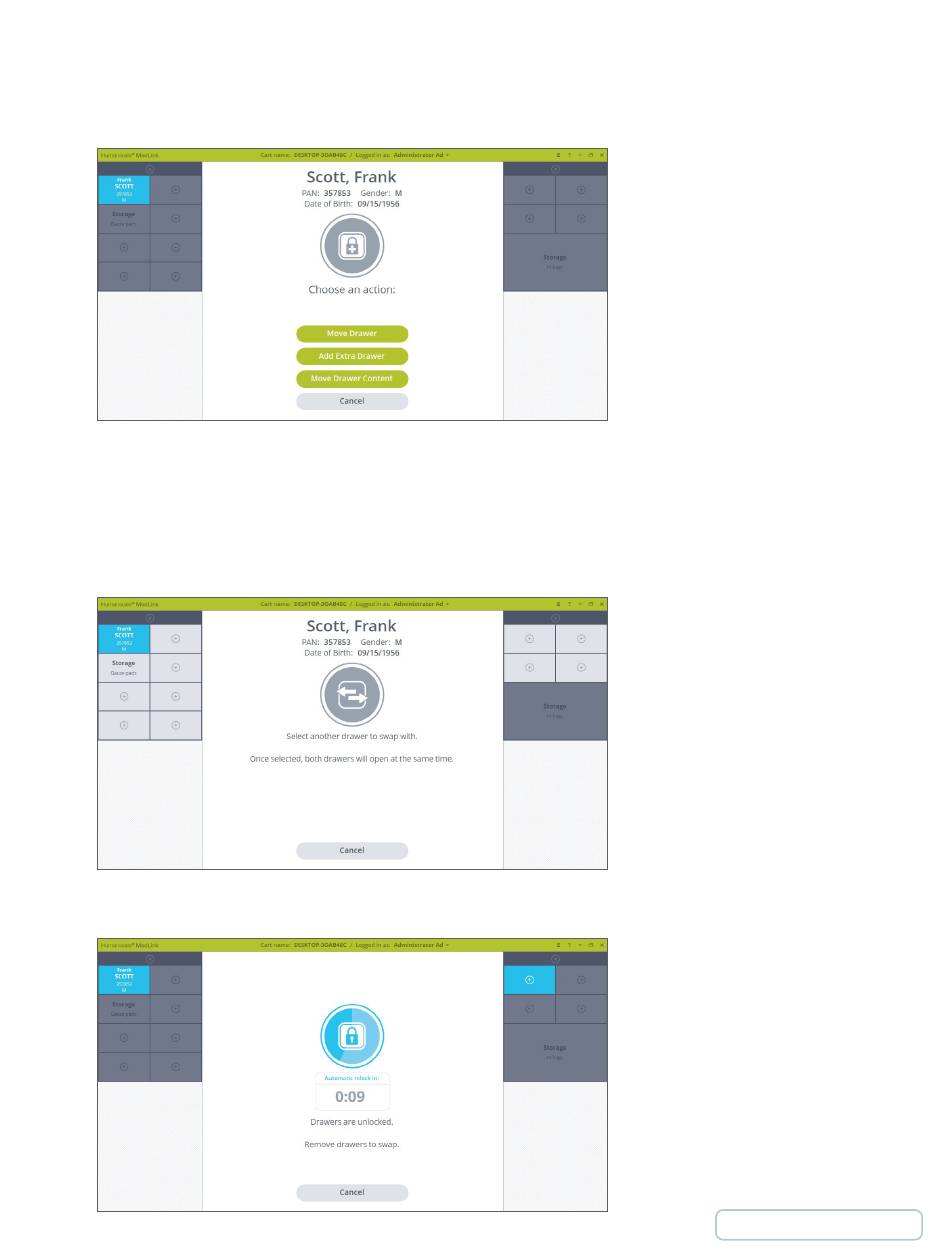

Figure 63 - Drawer Selected Secondary Screen
3. If you have not already done so, you will be prompted to scan a Location barcode. The Drawer swapping process
should only be carried out in a designated area such as a medication store room, therefore scanning the Location
barcode is needed.
4. The first Drawer selected stays highlighted, and you will be promoted to choose a second Drawer where you want to
move the first drawer to.
Figure 64 – Select Another Drawer
5. Click on another Drawer of matching size. The second Drawer also highlights, and both Drawers will be unlocked.
55 Figure 65 – Both Drawers are Unlocked
