DRAWER STATES
A Drawer may be in one of four states: locked, selected, unlocked, or open.
•
Locked means the Drawer is fully closed within the Cassette and cannot be opened until the locking mechanism is
release through a software input, or the Cassette is removed, and the mechanical override is used.
•
Selected means the Drawer has been selected on screen. The Drawer stays physically locked by is highlighted on
screen for further action.
•
Unlocked means the Drawer locking mechanism has been triggered, and the Drawer has been pushed out far
enough that it can be removed. From this position, the auto close feature can close the Drawer and relock it if there is
no further user input.
•
Removed means from the unlocked position, physically pulling the Drawer out further. At this point the auto close
feature will no longer work, and the Drawer can be fully removed from the Cassette if desired.
35

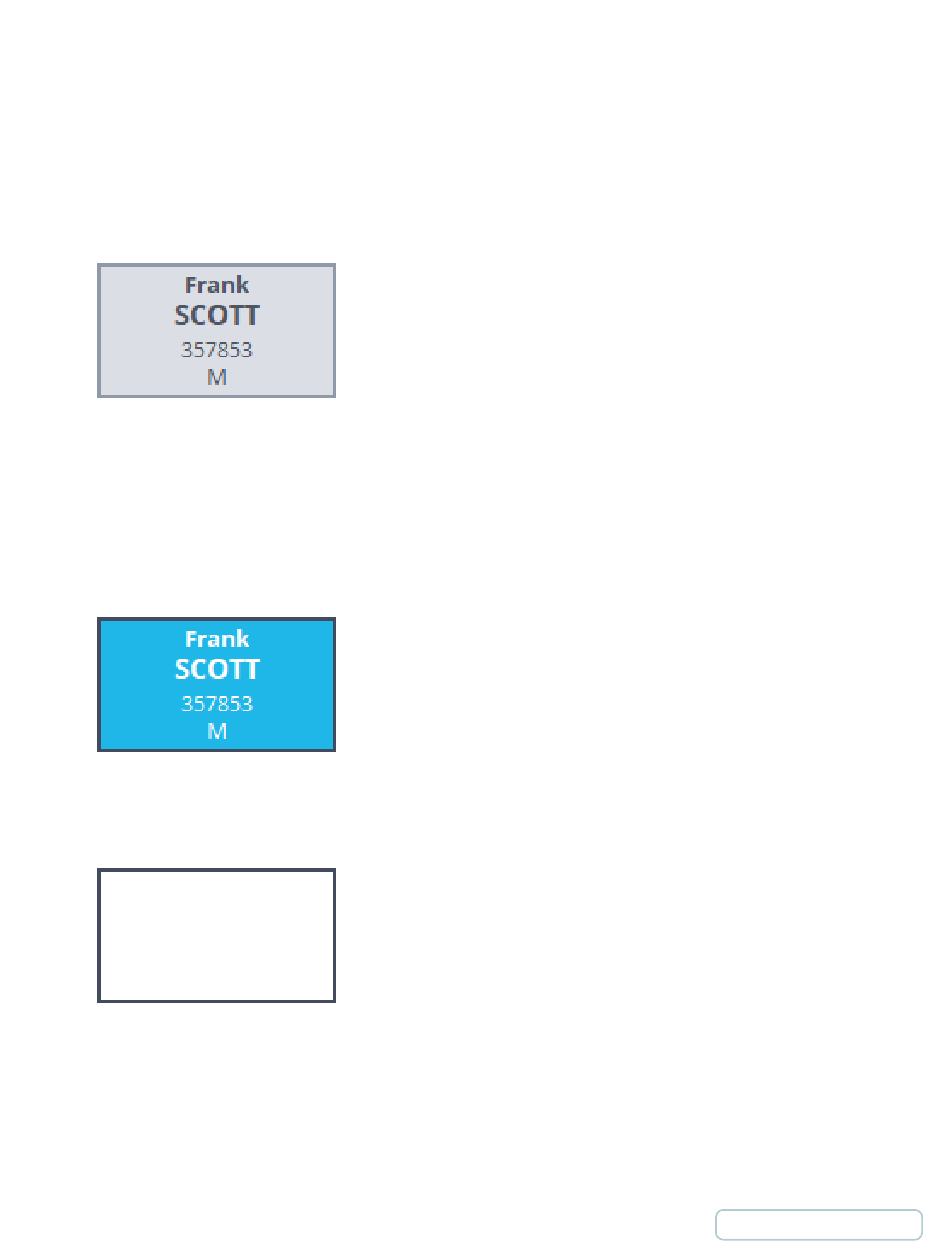

Figure 28 - Patient
Drawer Locked
Figure 29 – Patient
Drawer is Selected
or Unlocked
Figure 30 - Drawer
is removed (empty
drawer slot)
