Assembly Instructions

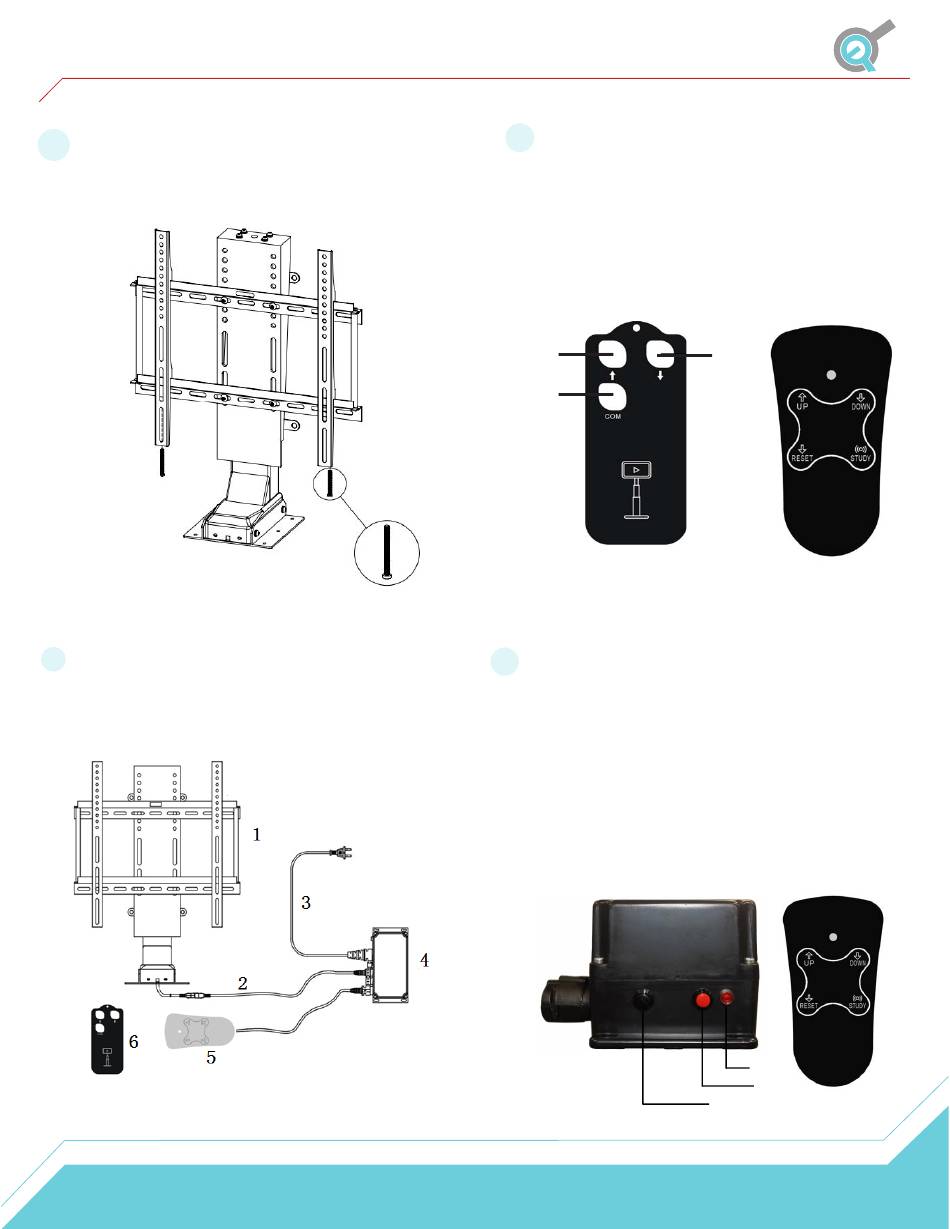

secure another 2 parts of the tV mounting bracket onto
5
the backside of the tV set with 4 screws included with
tV set. and then hang the tV set onto the tV mounting
bracket as following.
use 2 m5x50 screws to tighten on the bottom.
connect the Wires as per the diagram
6
below. now your tV lift is ready for use.
(press the buttons of the handset and
column will move up/down)
operating: You can use the remote or handset operate
7
the tV lift.
(1) Remote: Press S1+S3, TV lift move up, press S2+S3, TV
lift move down.
(2) Handset: Press UP button, TV lift move up, press DOWN
button, TV lift move down. (3) During the movement, you
can press any button on remote or handset (not the RESET
button on handset), TV lift stop at once.
s1
s3
Setting the UPPER and LOWER limits:
8
• Press and hold the UP button (red) on the control box
while simultaneously pressing the UP button on the
handset. Raise the TV lift to the desired height. Release
both UP buttons to set the UPPER limit.
• Press and hold the DOWN button (black) on the control
box while simultaneously pressing the DOWN button on
the handset. Lower the TV lift to the desired height.
Release both DOWN buttons to set the LOWER limit.
Both UPPER and LOWER limits have now been set.
Down
Button
s2
LED
Up
Button
