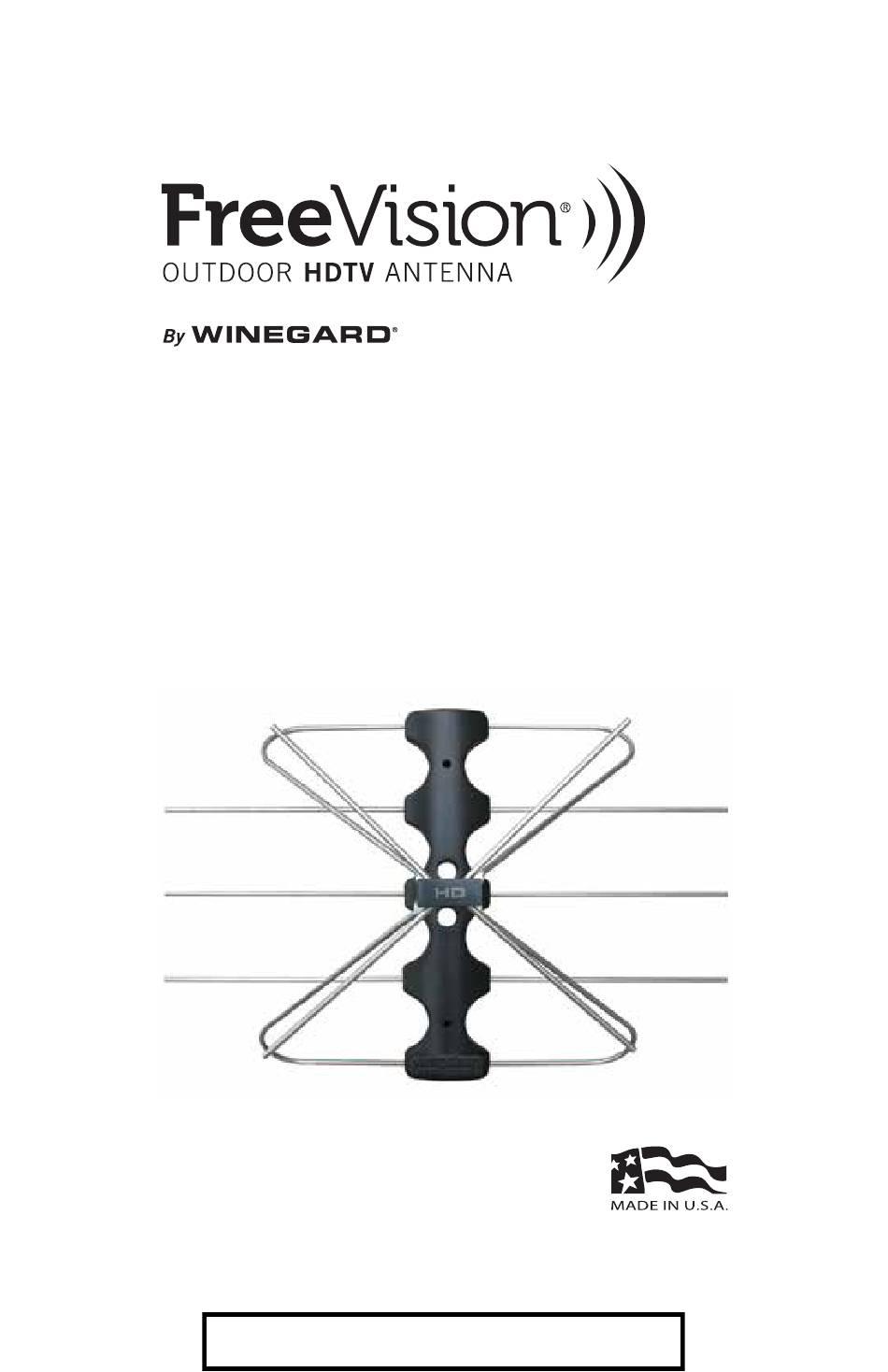

Instruction Manual
For help, email help@winegard.com or call 1-800-788-4417
Register your product at winegard.com/myantenna
U.S. Patent D612,370 & Patent Pending
2452285
Rev3 7-16
For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281
Advertisement
Related Manuals for Winegard FreeVision
Summary of Contents for Winegard FreeVision
- Page 1 Instruction Manual For help, email help@winegard.com or call 1-800-788-4417 Register your product at winegard.com/myantenna U.S. Patent D612,370 & Patent Pending 2452285 Rev3 7-16 For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd.; Wilmington, NC 28411 - (800) 507-0482 / (910) 686-4281...
-
Page 2: Antenna Assembly

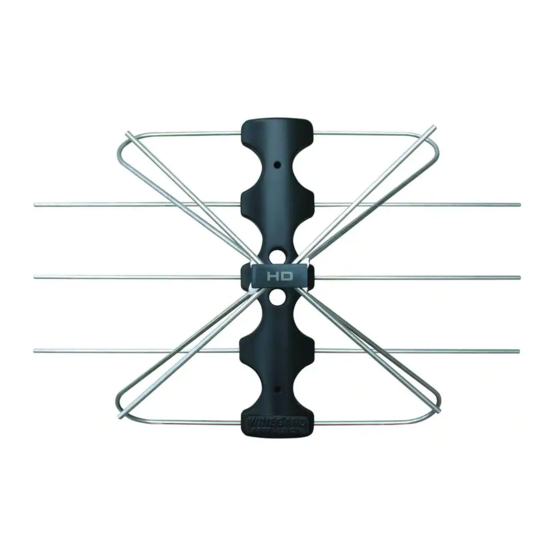

Antenna Assembly Orient the antenna so that the Winegard logo is facing forward. Flip the forward elements to the front until the holes in the elements align. Forward Elements Winegard logo With the holes lined up, install the UHF elements by inserting the threaded posts into the holes in the forward elements. - Page 3 Position the antenna toward the broadcast tower for optimal reception. For most locations, stations will only come from one or two directions. If the compass headings are similar (<30° apart), the FreeVision antenna can be aimed between the two areas and receive signals from each location.
- Page 4 Mounting the Antenna: Mounting Options The FreeVision antenna is designed to be mounted either of two ways: Wall Mounting—The FREEVISION has been designed with holes to allow it to hang on a wall from a nail. Hole for Nail Hole for Nail Mast Mounting—The FreeVision antenna comes with a bracket and U-bolt...
- Page 5 Refer to wiring diagrams at www.winegard.com/freevision for details on how to wire the FreeVision antenna so that it enhances your existing cable or satellite package. For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com)
-
Page 6: Troubleshooting
Painting the FreeVision Antenna The FreeVision antenna can be painted as long as the metal prongs of the forward elements and the matching transformer forks are not painted. If you choose to paint the antenna, cover the two circled areas with tape before painting. - Page 7 Friday and 8:00 AM to 3:30 PM Saturday, Central Standard Time, or visit www.winegard.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO WINEGARD. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.
