Cable Connections
A GPS/DGPS cable (item # 2950CV5) is required to con-
nect the CM 1000 meter to a GPS unit. This cable has a
9-pin male connection and a stereo pin that connects to the
meter's data port. You will also need a cable that allows
the GPS unit to connect to a 9-pin male serial port. If this
cable doesn't come standard with your GPS unit, it should
be available from the manufacturer. This cable is gener-
ally used to upload information from a computer to the
GPS unit. These components should be connected as

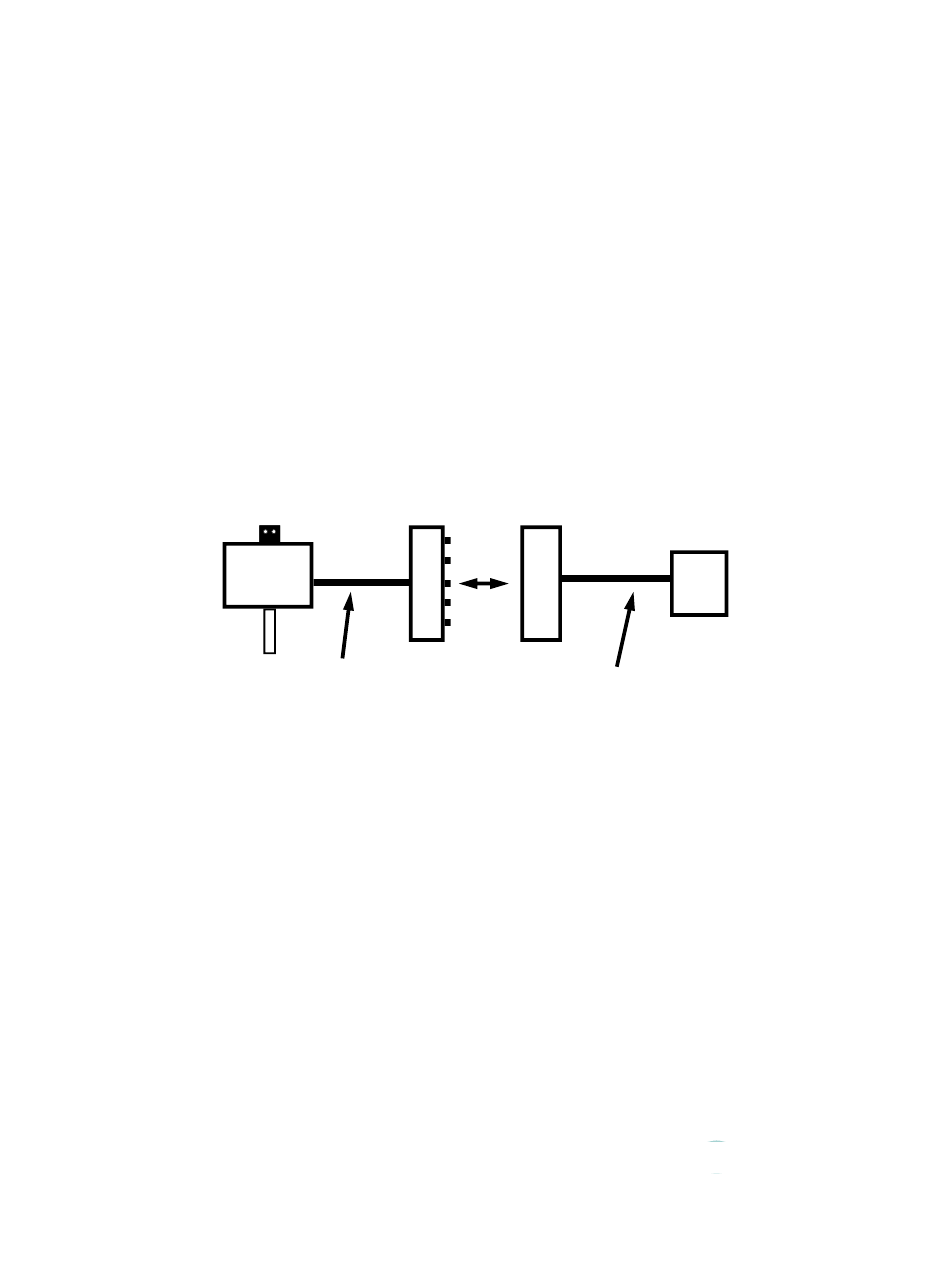

shown in the figure below.
CM1000
Meter
Spectrum
GPS/DGPS
Cable
Connecting the CM1000 meter to a GPS unit
GPS
Unit
GPS computer
interface cable
