Sealed Stainless Steel Ball Float Steam Trap
(for use with Pipeline Connectors)
Description

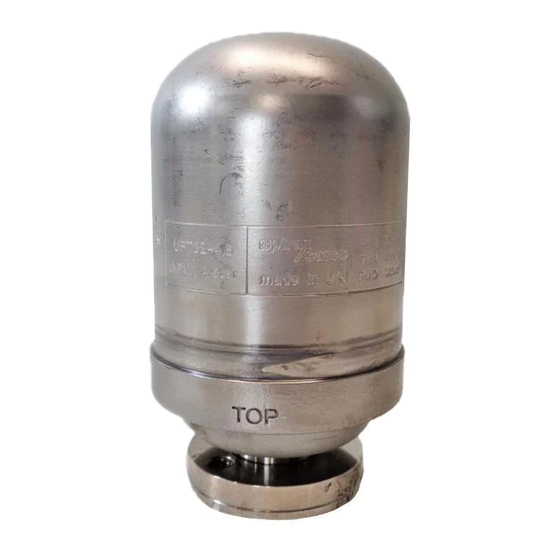

The UFT32 is an austenitic stainless steel maintenance free sealed ball float steam trap with an integral automatic air venting facility.
It is designed for differential steam pressures up to 32 bar.
When installed with a suitable pipeline connector the UFT32 can easily and simply be removed without breaking into the pipeline, thus
speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged
end connections.
Capsule
The BP99/32 capsule which is used in the UFT32 is suitable for use on 150 °C superheat @ 0 bar g and 50 °C superheat @ 32 bar g.
Standards
The body to cover welded joint complies with ASME Section IX and BS/EN 288.
This product fully complies with the requirements of the Pressure Equipment Directive (PED).
Certification
This product is available with certification to EN 10204 3.1.
Note: All certification/inspection requirements must be stated at the time of order placement.

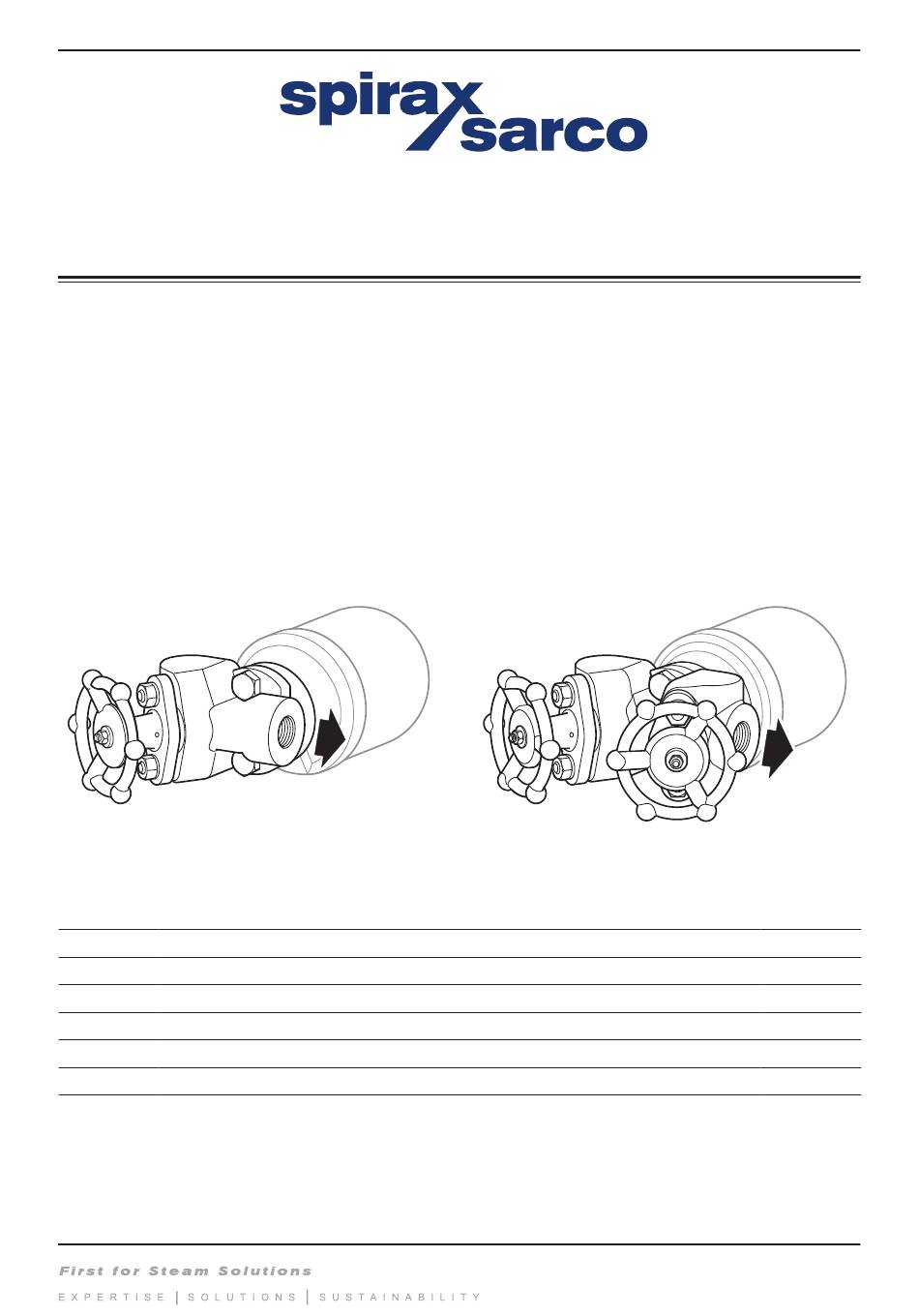

UFT32 fitted to a PC3_ connector
Pipeline connector options
The UFT32 can be fitted to a variety of pipeline connectors including:
PC10HP
Straight connector
PC20
Straight connector with 'Y' type strainer
IPC21
Straight connector with 'Y' type strainer and integral Spiratec sensor
PC3 _
Straight connector with one piston isolation valve
PC4 _
Straight connector with two piston isolation valves
STS17.2
Steam trap station
See the relevant Technical Information sheet as listed above for details of the connections available for each pipeline connector.
Local regulations may restrict the use of this product to below the conditions quoted.
UFT32
UFT32 fitted to a PC4_ connector
TI-P146-05
CMGT Issue 6
ASME 600
(TI-P128-10)
ASME 300
(TI-P128-15)
ASME 300
(TI-P128-15)
ASME 600
(TI-P128-02)
ASME 600
(TI-P128-03)
(TI-P128-22)
