3. Function Introduction

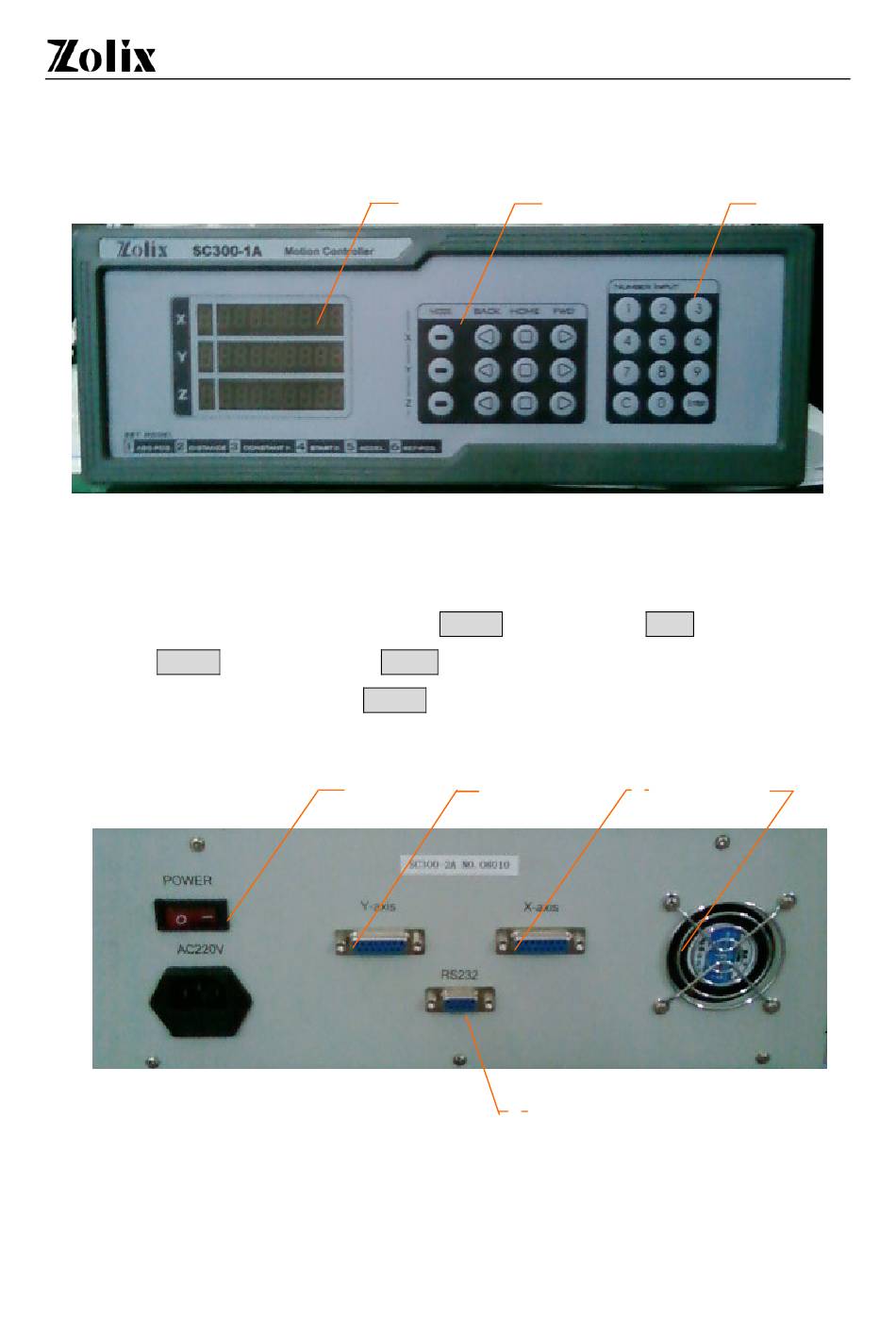

（1） Front panel
1) Display: 'X' denotes x axis, 'Y' denotes y axis and 'Z' denotes z axis. The first
green digit denotes the work style and the later seven red digits denote
parameters.
2) Control Buttons: include mode MODE, move forward FWD, go back to zero
HOME, move backward BACK.
3) Number input: change MODE and in order to set parameters in order.
（2） Rear Panel (SC300-XA)
1) Power switch
2) Y-axis: Controlling interface of the motor of y axis
3) X-axis: Controlling interface of the motor of x axis
