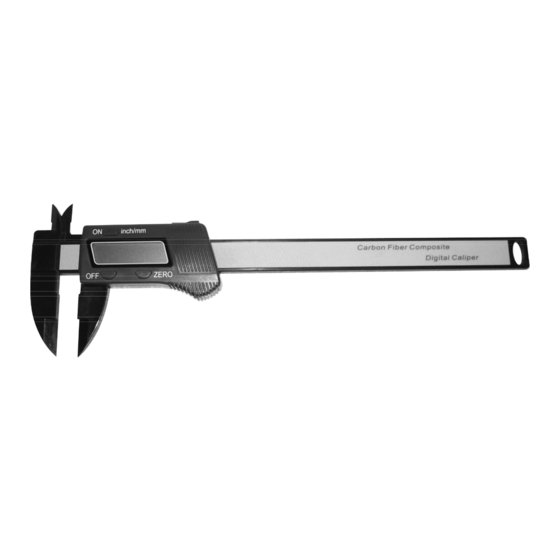

6” composite digital caliper

Download this manual

6" COMPOSITE DIGITAL CALIPER

ASSEMBLY & OPERATING INSTRUCTIONS

Due to continuing improvements, actual product may differ slightly from the product described herein.

2005 by Harbor Freight Tools

any artwork contained herein may be reproduced in any shape or form without the express

written consent of Harbor Freight Tools. For technical questions and replacement parts

please call 1-800-444-3353.

Material:

Measuring Capabilities: Inside/Outside

Battery:

Dimensions:

Scale Range:

Accuracy:

Max Throat:

Dial Readings:

Auto Shutoff

WARNING: When using product, basic safety precautions should always be

followed to reduce the risk of personal injury and damage to equipment.

Keep work area clean. Cluttered areas invite injuries.

SKU 93293

For technical questions please call 1-800-444-3353.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web Site at www.harborfreight.com

Technical Specifications

Molded Carbon Fiber Composite Material

SR44 1.5 Volt Silver Oxide (included)

9-1/2" W x 3"L x 5/8" H

0-6"

± .01" or ± 0.2mm

1-9/16"

Inches/mms

Safety Warnings and Precautions

93293

Page 1

Page 1 . All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts please call 1-800-444-3353.
Page 2 Observe work area conditions. Keep work area well lighted. Store idle equipment. When not in use, the Digital Caliper must be stored in a dry location. Always lock up products and keep out of reach of children. Use the right product for the job. There are certain applications for which the Caliper was designed.
Page 3 Measuring the Inside of an Object Set the prongs on the Caliper inside of the object being measured. Make certain the Caliper readout is calibrated to “zero” while the prongs are closed. Spread the prongs apart until they are touching the surface of the object being measured.
