Doors

To open a bay door, remove the padlock from the security hasp and pull the door handle.
Once the door is opened approximately 90 degrees or 135 degrees, engage the lock bar at the
bottom of the door to prevent the door from accidentally closing. See Figure 9.

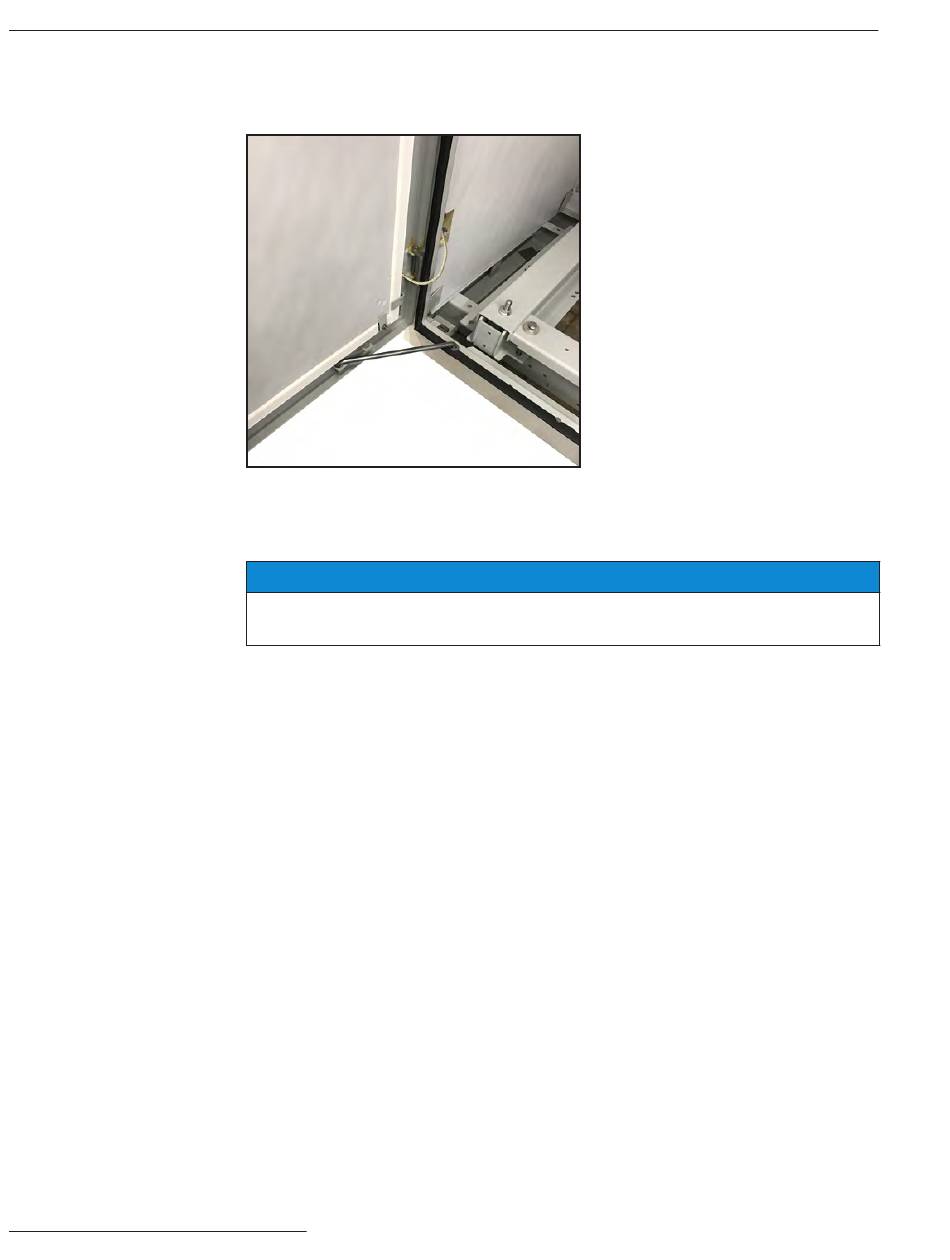

Figure 9. Lock bar at the bottom of a bay door.
To close a door, disengage the lock bar by lifting it and returning it to its storage location.
Swing the door closed and secure the door handle.
To open the control bay door, the ENABLE/DISABLE keylock needs to be unlocked,
which would result in disabling the system .

Air Control and Ventilation

Components such as air conditioners and air-inlet and -outlet vent/vent hoods are used to
regulate the air inside the enclosure. Periodic maintenance is required to ensure the air
conditioners, air-inlet filter, vents, and hoods are clear of debris or obstructions that can
restrict air flowing in and out of the PureWave UPS System enclosure. Refer to the maintenance
instruction sheet for detailed instructions for proper air ventilation maintenance.
