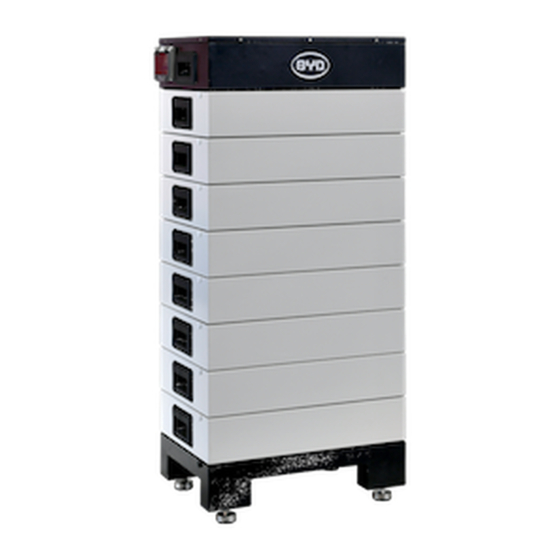

BYD Battery-Box HV User Manual
Hide thumbs
Also See for Battery-Box HV:
- User quick reference manual (9 pages) ,
- Quick reference manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for BYD Battery-Box HV
Summary of Contents for BYD Battery-Box HV
- Page 1 User Manual of Chargers (EU) (BCC-H-48V96V-A) BYD Battery-Box HV BYD Battery-Box PRO BYD Battery-Box LV Version 1.0 2019-9-25 Copyright © BYD Company Limited...
-
Page 2: Product Warranty
This is a simple manual for the charger, which is used to charge battery modules of BYD Battery-Box HV; PRO, LV products in Europe. It will utilize power from grid and store it in the battery module. So this is specialized for specific battery modules, if you force it to charge similar battery, it will cause potential risks. - Page 3 Pro13.8 The charger cable needs to be properly connected to the positive and negative terminals of the system, and the BMS needs to be connected to the battery B-Plus L 2.5 Pro13.8 B-Plus L 3.5 Connect the wire between the Charging system and the battery module as below: Copyright © BYD Company Limited...
- Page 4 Turn to LCD menu to check which part is wrong. And you can turn to part 5 for more details. 5. LCD MENU Introductions 5.1. The whole LCD panel is displayed as below: Charge ChargeStatus Reserved ALERT KEYUP KEYDOWN KEYENTER Copyright © BYD Company Limited...
- Page 5 Red light: It stands for alerts or warning, when it is continuously on, there may be something wrong with the charging system. (3) Screen on LCD panels Screen shows the detailed information and operating windows, which can be used to set configuration parameters and check the abnormal status. Copyright © BYD Company Limited...
- Page 6 5.2 The Menu Topology: Copyright © BYD Company Limited...
- Page 7 Select Type B-Plus H 1.28 HV-I B-Plus L 2.5 LV-3U Battery-Box Pro 13.8 B-Plus L 3.5 LV-II 1) Turn on the switch; Please Select 2) Press enter key , enter the following page; Main Menu Copyright © BYD Company Limited...
- Page 8 In this page , you can set the charge soc. 5) Press the down key , enter the following page, then press the enter key ,and press the down key to “Yes”, start to charge the battery. Copyright © BYD Company Limited...
- Page 9 Power: It means internal communication status between the charge system and AC/DC Module; NORMAL means OK, NC” means wrong. BatCom: NORMAL (4) You can turn to this page to check: Temp: If the maximum temperature of cells is over 75℃, it will display NC. Otherwise, it Copyright © BYD Company Limited...
- Page 10 Circuit : NORMAL 7.2 Main Menu You can press the enter key to turn to the following pages and press the enter key for more than 3 seconds back to the former pages: Battery type selection Copyright © BYD Company Limited...
- Page 11 You can press the enter key for more than 3 seconds back to the “Main Menu”. Parameters Headquarter China BYD LITHIUM BATTERY Co., LTD E-Mail: eubatterygrp@byd.com Tel: +86 0755 89888888 Fax: 0755-8961 9653 Address: No.1 Baoping Road, Baolong Industrial Town, Longgang Shenzhen, 518116, China...
