Turning The Torch Neck; Changing The Torch Neck - EWM PM 301 W Operating Instructions Manual

Item Symbol
8
9
Equipment damage and impurities of the welding result due to worn O-rings.
Worn O-rings have a negative impact on the torch cooling. Insufficient cooling causes damage to
the welding torch. Gas losses and the penetration of atmospheric oxygen can also occur and can
adversely affect the welding result.
•
Check the O-rings every time the welding torch is converted and grease or replace if
necessary.
5.3.1

Turning the torch neck

This function is only available with the "CG" and "CW" version!
•
Unfasten the crown nut by several turns from the handle until the torch neck can move freely.
•
Rotate the torch neck into the required position.
•
Tighten the crown nut hand-tight until the torch neck can no longer be moved.
5.3.2

Changing the torch neck

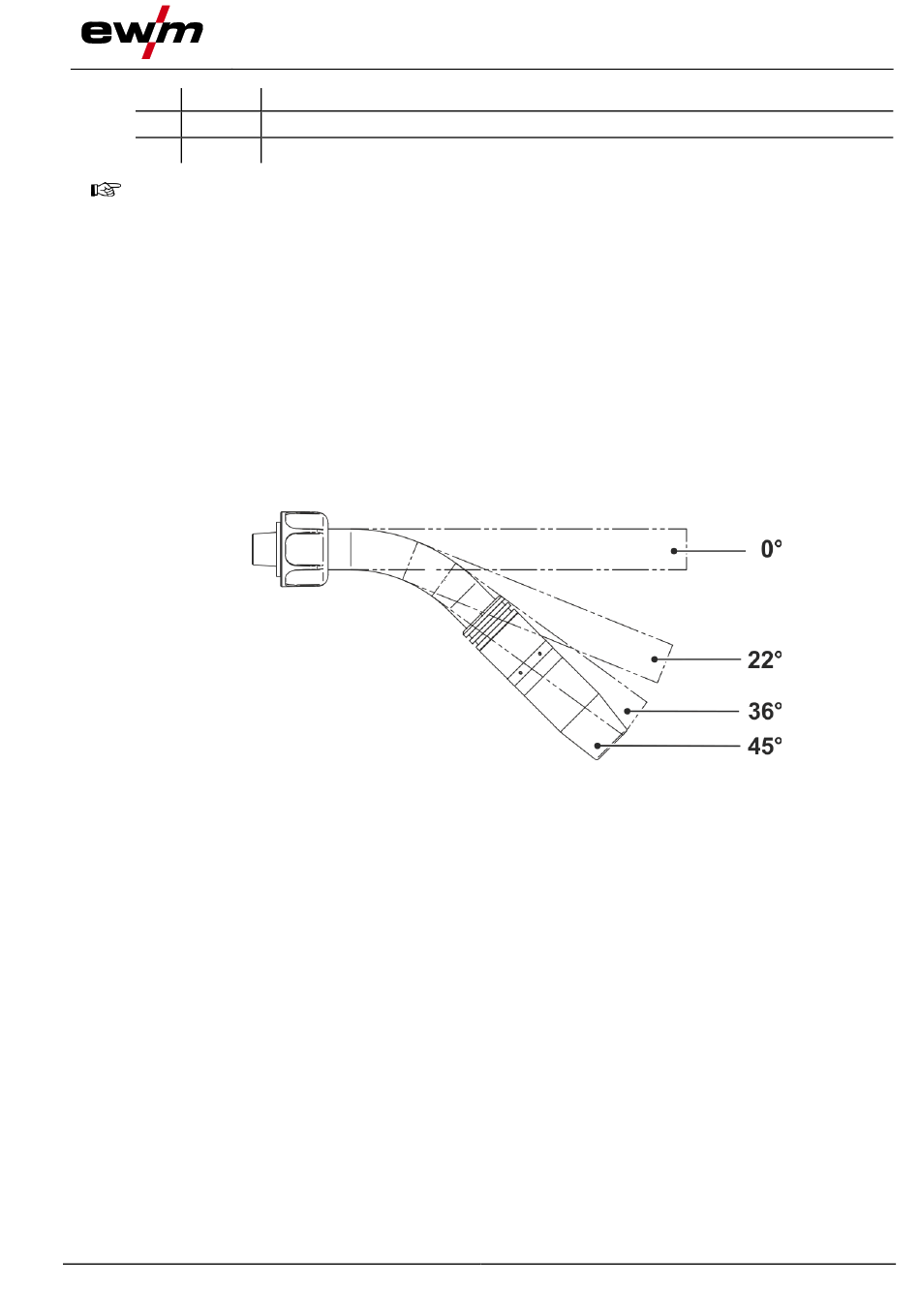

Welding torches can be fitted with a 45°, 36°, 22° and 0° angled torch neck as an option. To replace the
torch neck follow these instructions.
099-700003-EW501
11.01.2019
Description 0
Torch connection block
Grip plate
Design and function
Figure 5-10
Configure welding torch
23
