RFID SYSTEMS
Mobile Reader
Function Manual · 02/2009
Valid for the following products:

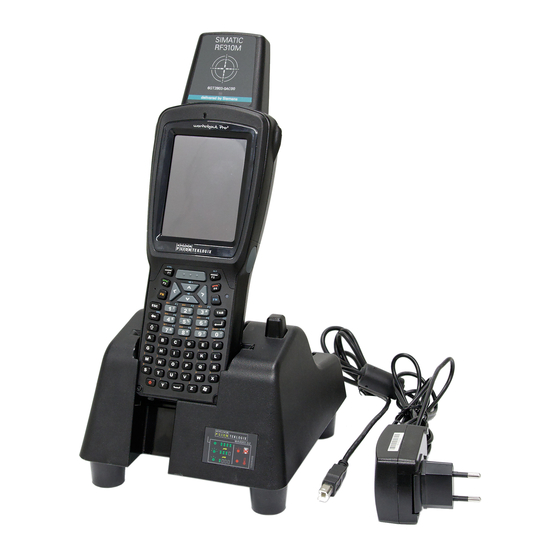

SIMATIC RF310M
SIMATIC RF610M
SIMATIC Sensors
