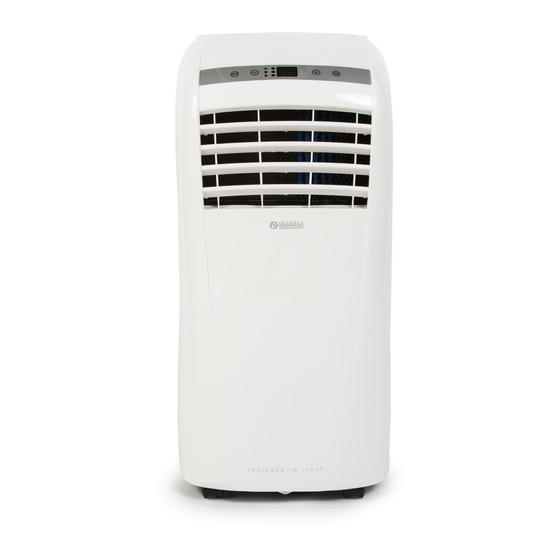

DOLCECLIMA
INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
COMPACT
LOCAL AIR CONDITIONER
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOLCECLIMA COMPACT and is the answer not in the manual?

Questions and answers

Related Manuals for Olimpia splendid DOLCECLIMA COMPACT

Summary of Contents for Olimpia splendid DOLCECLIMA COMPACT

  • Page 1 DOLCECLIMA COMPACT LOCAL AIR CONDITIONER INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE Attenzione: rischio di incendio Caution: risk of fire Attention : risque d'incendie Achtung: Brandrisiko Atención: riesgo de incendio Atenção: risco de incêndio Let op: brandgevaar Προσοχή: κίνδυνος πυρκαγιάς...
  • Page 2 1. The appliance contains R290 gas (A3 flammability classification) 2. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. The appliance must be installed, used and stored in a room with a floor surface in compliance with the minimum sizes indicated in the chart at page 10. This appliance contains a quantity of refrigerant gas R290 equal to the one indicated in the data label located on the appliance. 3. This a ppliance c an b e u sed b y c hildren a ged f rom 8 y ears a nd a bove a nd p erson w ith r educed p hysical, s ensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be...
  • Page 3 m i n 3 0 c m i n . 7 0 c m...
  • Page 4 min. 2m min. 2m...
  • Page 5 ø127mm ø127mm...

  • Page 7: Table Of Contents

    (automatic) ......................25 3.9 - niGHt funCtion ........................25 3.10 - timer mode ..........................25 3.10.a Programmed switching on ......................25 3.10.b Programmed switching off ......................25 3.11 - SettinG tHe unit of meaSurement of temPerature ...........26 3.12 - autoreStart ..........................26 EN - 1 DOLCECLIMA COMPACT...
  • Page 8 4 - MAINTENANCE AND CLEANING ..................26 4.1 - CleaninG ............................26 4.1.a - Cleaning the appliance and the remote control ................26 4.1.b - Cleaning the suction filter ......................27 4.1.c - recommendations for energy saving ....................27 4.2 - maintenanCe ...........................27 4.2.a - discharging condensation ......................28 4.2.b - error codes ............................28 5 - TECHNICAL DATA .........................

  • Page 9: Warnings

    - danger of injury to the operators - loss of the warranty - refusal of liability by the manufacturer. Raised hand refers to actions that absolutely must not be performed. HAZARD Indicates that the appliance uses inflammable refrigerant. If the refrigerant escapes and is exposed to a source of external ignition, there is a fire risk. EN - 3 DOLCECLIMA COMPACT...
  • Page 10 DANGER OF HIGH VOLTAGE Signals to the personnel that the operation described could cause electrocution if not performed according to the safety rules. GENERIC DANGER it informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

  • Page 11: General Warnings

    1. This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID. Our machines are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.
  • Page 12 Safety Regulations in force in the country of installation. 11. In case of replacement of parts, use only original OLIMPIA SPLENDID parts. 12. If the unit is unused for a long period, or no-one uses the climate-controlled room, it is recommended to disconnect the electric power supply in order to prevent accidents.
  • Page 13 39. Do not use the appliance outdoors or on wet surfaces. Avoid dropping liquids on the appliance. Do not use the appliance near sinks and taps. 40. Do not immerse the appliance in water or in other liquids. EN - 7 DOLCECLIMA COMPACT...
  • Page 14 41. Clean the appliance with a damp cloth; do not use abrasive products or materials. See the appropriate paragraph for the filters cleaning. 42. The most common cause of overheating is dust or lint deposit in the appliance. Regularly remove these accumulations by disconnecting the appliance from the power socket and vacuuming the grids.

  • Page 15: Proper Use

    • This appliance is only intended for a domestic use or similar. • An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility. 0.5 - HAZARDOUS ZONES • The climate controllers must not be installed in environments with the presence of inflammable gases, explosive gases, in very humid environments (laundries, greenhouses, etc.), or in places with other machines that generate...

  • Page 16: Warnings For R290 Refrigerant Gas

    0.6 - WarNiNgs for r290 rEfrigEraNt gas 1. thE appliaNcE coNtaiNs r290 gas (flammability classifica- tioN a3). 2. thE appliaNcE shall bE storEd iN a WEll-vENtilatEd arEa WhErE thE room sizE corrEspoNds to thE room arEa as spEcifiEd for opEratioN. 3.
  • Page 17 Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed. c) General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. ensure that the conditions within the area have been made safe by control of flammable material. EN - 11 DOLCECLIMA COMPACT...
  • Page 18 d) Checking for presence of refrigerant the area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
  • Page 19 25. CaBlinG Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. EN - 13 DOLCECLIMA COMPACT...
  • Page 20 26. deteCtion of flammaBle refriGerantS under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. 27. leaK deteCtion metHodS the following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
  • Page 21 When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked. EN - 15 DOLCECLIMA COMPACT...
  • Page 22 31. laBellinG equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. the label shall be dated and signed. ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. 32. reCoVerY When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

  • Page 23: Description Of The Appliance

    26. air outlet 23. Air filter with grille 27. Handle for moving 24. Plug for draining condensation water (in case 28. Cap for condensate drain (dehumidification of transport, maintenance or excessive build- mode only) 29. ir remote control receiver up of water) EN - 17 DOLCECLIMA COMPACT...

  • Page 24: Installation

    2 - INSTALLATION 2.1 - HOW TO TRANSPORT THE CONDITIONER • Transport and handling of the appliance must be carried out in vertical position. If it is transported in a horizontal position, wait at least one hour before starting • Before moving or transporting the appliance, completely drain condensation by working as described in paragraph 4.2.a CAUTION Moving the air conditioner on delicate flooring (e.g. wooden flooring):...

  • Page 25: Mobile Installation

    (10) in the holes. f. Position the terminal (6) in the hole of the wall and fix it with the supplied screws (10). g. Insert the machine side terminal (2) on the air outlet grid of the appliance (26) as shown in figure 9. h. Connect the other extremity of the flexible hose (1) on the terminal (6) (fig.14). i. Insert the flange (7) in the terminal (6) and close the cap (7a) when the appliance is not running (fig.14). 2.5 - ELECTRICAL CONNECTION The appliance is fitted with a power cable with plug. Before connecting the air conditioner ensure that: • The voltage and power frequency values match those specified on the appliance plate data. • The power line is equipped with an effective earth connection and is correctly sized for maximum power consumption of the air conditioner. EN - 19 DOLCECLIMA COMPACT...

  • Page 26: Drainage

    • The appliance’s power network must be equipped with a suitable omnipolar disconnection device compliant with national installation regulations. • The appliance is powered solely through a socket compatible with the plug provided. CAUTION Any replacement of the power cable must be carried out solely by Olimpia Splen- did technical support or by similarly qualified personnel. 2.6 - DRAINAGE depending on the modality of use of the appliance, it is necessary to connect the condensation discharge pipe. 2.6.a - Use as dehumidifier For the correct use of the appliance, work as follows (figures 15 and 16): a.

  • Page 27: Remote Control Keys (Fig. C)

    • b8: unit switch off delay setting • b3: activate/deactivate display on machine control • b9: Short cut panel • b4: temperature set increase • B10: Sleep mode activation (7 symbol turned on) • b5: temperature set decrease EN - 21 DOLCECLIMA COMPACT...

  • Page 28: Use Of The Remote Control

    3.3 - USE OF THE REMOTE CONTROL the remote control supplied with the air conditioner is the tool which allows You to use the appliance in the most comfortable manner. it should be handled with care and in particular: • Keep it dry (do not clean it with water or leave it outdoors in bad weather).

  • Page 29: C - Location Of The Remote Control

    Work as follows in order to use the appliance. To prevent possible damages to the compressor, each start is delayed by 3 minutes with respect to the last switching off. 3.4.a - Preliminary operations • Place the appliance on a stable and not inclined base, at at least 30 cm. from the wall or from any other object, in order to ensure the correct air circulation. Place it on a water-resistant surface since the possible water leakage could damage furniture or the floor. • Do not place the appliance directly on carpets, towels, blankets or other absor- bent surfaces. • Insert the plug in the power socket; the appliance emits a “beep”, on the display appears the icon and the environment temperature in °C. Before electrically connecting the appliance, make sure the plate data correspond to those of the electricity distribution network. EN - 23 DOLCECLIMA COMPACT...

  • Page 30: B - Appliance Switching On/Off

    3.4.b - Appliance switching on/off a. the appliance can be switched on or off for short periods by pressing B1 on the remote control or SW1 on the control panel (if the appliance is switched off for a long period then it should be deactivated by removing the plug from the mains supply. b. The corresponding LED L2 lights up to indicate that the appliance is switched off. c. in this condition, press B1 again on the remote control (or SW1 on the control panel) to restore all the formerly selected functions.

  • Page 31: Auto Mode (Automatic)

    With the unit in any working mode, press B8 to set the desired time delay (from 0.5 to 24 hours) after which the unit will switch OFF (starting from timer confirmation). each following B8 key operation increases the delay time value by 1 hour. b. if no button is pressed within 5 seconds the timer setting function will terminate automatically. >>>>> EN - 25 DOLCECLIMA COMPACT...

  • Page 32: Setting The Unit Of Measurement Of Temperature

    When the delay time set has elapsed, the overall unit switches off. c. to cancel the delayed shutdown, press button B8 again until a value of 0 is set. d. When the timer is active, symbol S2 is activated on the machine and symbol 8 on the remote control. 3.11 - SETTING THE UNIT OF MEASUREMENT OF TEMPERATURE on pressing buttons SW3 SW4 simultaneously for 3 seconds you can change the temperature unit of measure indicated on the machine display from CelSiuS (°C) to faHrenHeit (f) and vice versa.

  • Page 33: B - Cleaning The Suction Filter

    Checks before resuming use of the air conditioner: a. Clean the filters after a long period of inactivity of the air conditioner. b. Check that the air outlet or inlet are not obstructed (especially after a long period of inactivity of the air conditioner). EN - 27 DOLCECLIMA COMPACT...

  • Page 34: A - Discharging Condensation

    4.2.a - Discharging condensation When condensation in the lower tray reaches the predetermined level, the appliance emits beeps. in this case: a. disconnect the plug from the power socket. b. Carefully move the appliance in position suitable to unload water. c.

  • Page 35: Inconveniences And Possible Remedies

    “P1” flashes on the control panel display. displayed too frequently, call the Service Centre. • Ambient temperature too low • In cooling, night-time or automatic mode, • Air conditioner behaviour is normal. minimum speed cannot be selected. Do not try to repair the appliance by yourself. If the problem has not been solved, please contact your local retailer or the closest assistance service. Supply detailed information about the malfunction and the equipment version. EN - 29 DOLCECLIMA COMPACT...

  • Page 36: Wiring Diagram

    7 - WIRING DIAGRAM electronic card (power) rY1) relays for compressor electronic card (control) Compressore thermostat probe Condenser fan Water level probe Condensation discharge motor evaporator temperature sensor. Compressor capacitor Compressor thermal cut-out Condenser for capacitor B1 B3 P01P02 CN10 BLUE COMPRESSOR BLUE...
