Hookups

Hooking Up the Player

Follow Steps 1 to 4 to hook up and adjust the settings of the player.
Before you start, turn off the power, check that you have all of the supplied accessories, and insert
the batteries into the remote (page 14).
Notes
Plug cords securely to prevent unwanted noise.
Refer to the instructions supplied with the components to be connected.

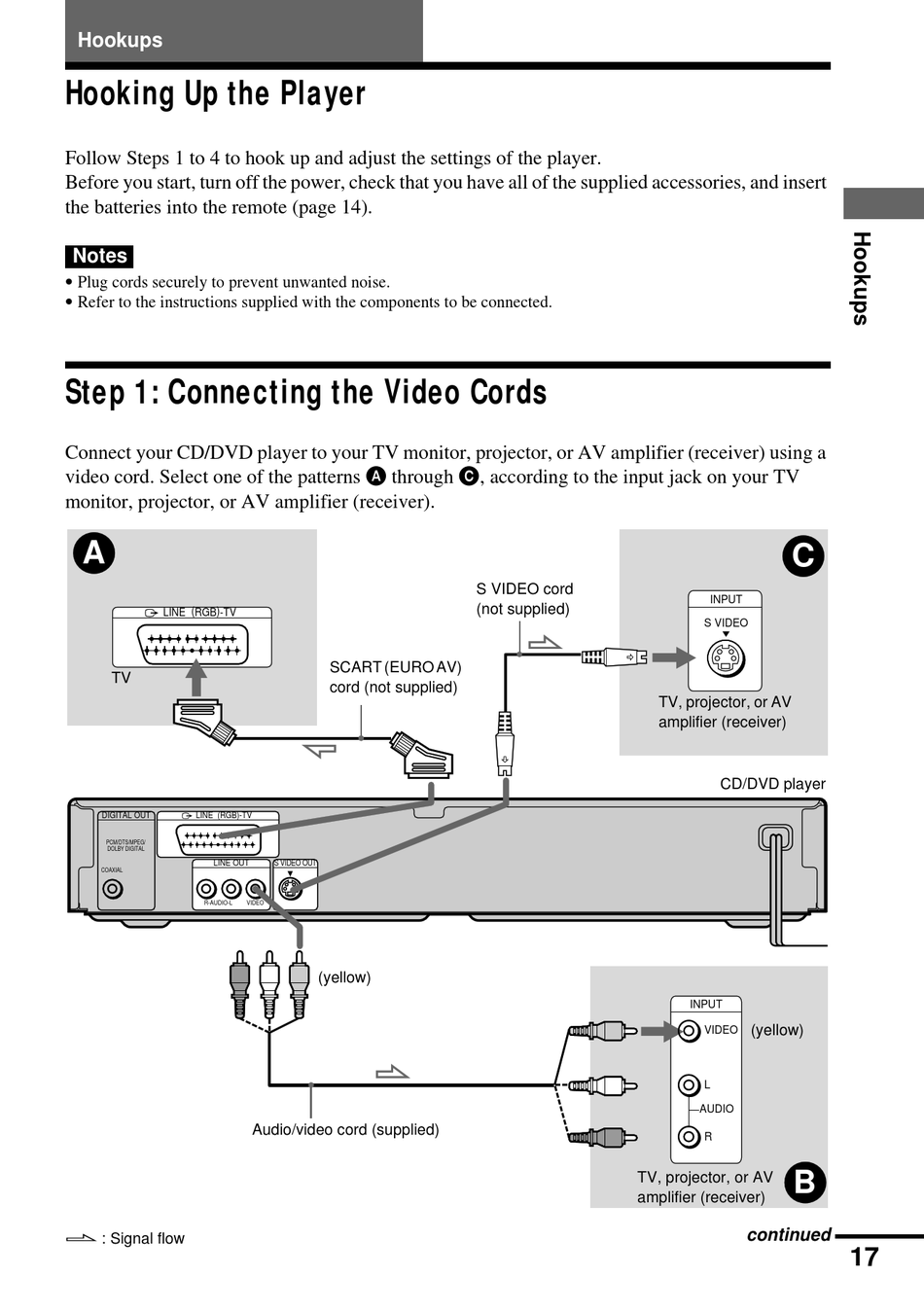

Step 1: Connecting the Video Cords

Connect your CD/DVD player to your TV monitor, projector, or AV amplifier (receiver) using a
video cord. Select one of the patterns A through C, according to the input jack on your TV
monitor, projector, or AV amplifier (receiver).
A
LINE ( RGB ) -TV
TV
DIGITAL OUT
LINE (RGB)-TV
PCM/DTS/MPEG/
DOLBY DIGITAL
LINE OUT
COAXIAL
R-AUDIO-L
l : Signal flow
SCART (EURO AV)
cord (not supplied)
S VIDEO OUT
VIDEO
(yellow)
Audio/video cord (supplied)
S VIDEO cord
(not supplied)
TV, projector, or AV
amplifier (receiver)
C
INPUT
S VIDEO
TV, projector, or AV
amplifier (receiver)
CD/DVD player
INPUT
(yellow)
VIDEO
L
AUDIO
R
B
continued
17
