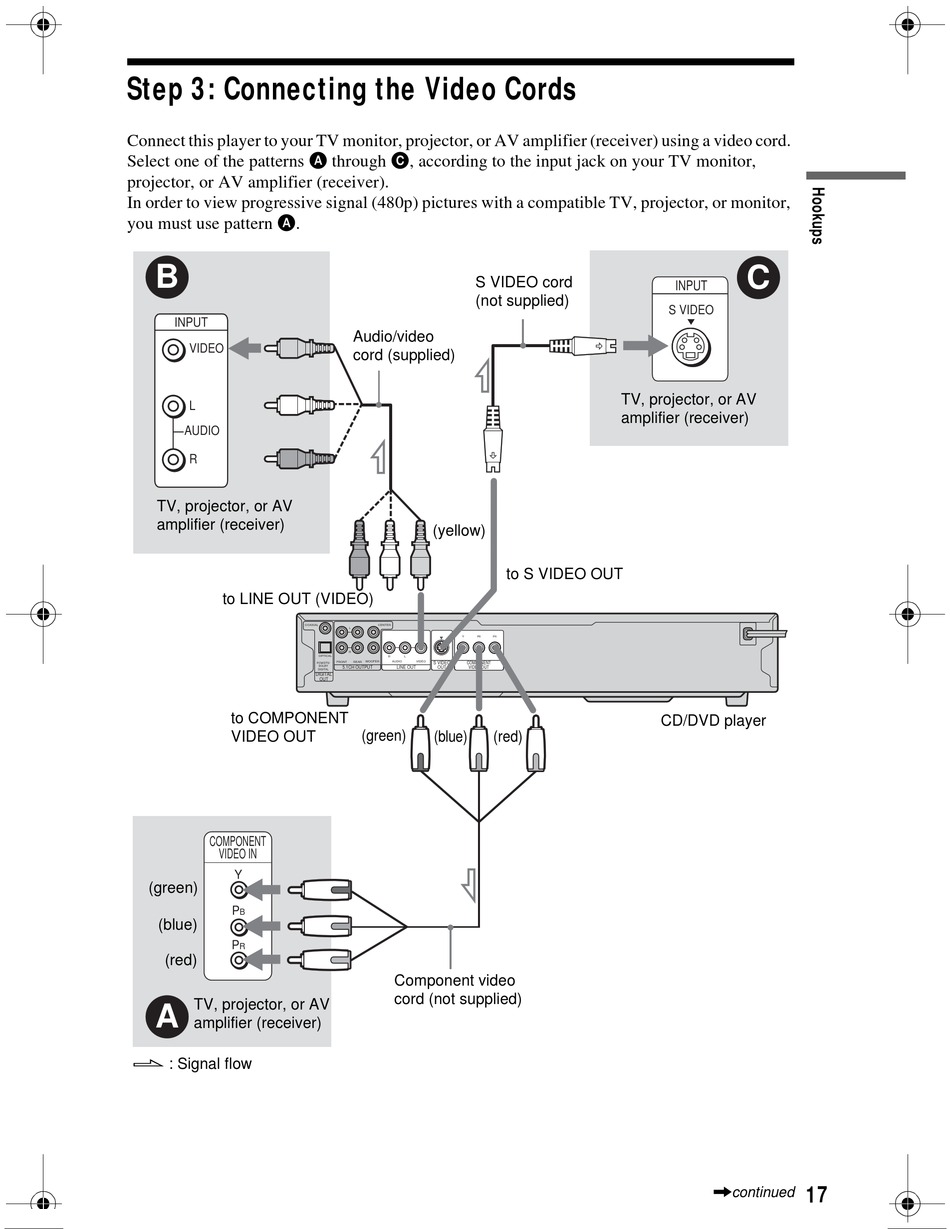

Step 3: Connecting the Video Cords

Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord.
Select one of the patterns A through C, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver).
In order to view progressive signal (480p) pictures with a compatible TV, projector, or monitor,
you must use pattern A.
B
INPUT
VIDEO
L
AUDIO
R
TV, projector, or AV
amplifier (receiver)
to LINE OUT (VIDEO)
to COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
Y
(green)
P
B
(blue)
P
R
(red)
TV, projector, or AV
A
amplifier (receiver)
l : Signal flow
Audio/video
cord (supplied)
(yellow)
COAXIAL CENTER
L
R
OPTICAL
R L
FRONT REAR WOOFER AUDIO VIDEO
S VIDEO
PCM/DTS/
DOLBY 5.1CH OUTPUT LINE OUT OUT
DIGITAL
DIGITAL
OUT
(green)
(blue)
Component video
cord (not supplied)
S VIDEO cord
(not supplied)
to S VIDEO OUT
Y P B P R
COMPONENT
VIDEO OUT
(red)
C
INPUT
S VIDEO
TV, projector, or AV
amplifier (receiver)
CD/DVD player
