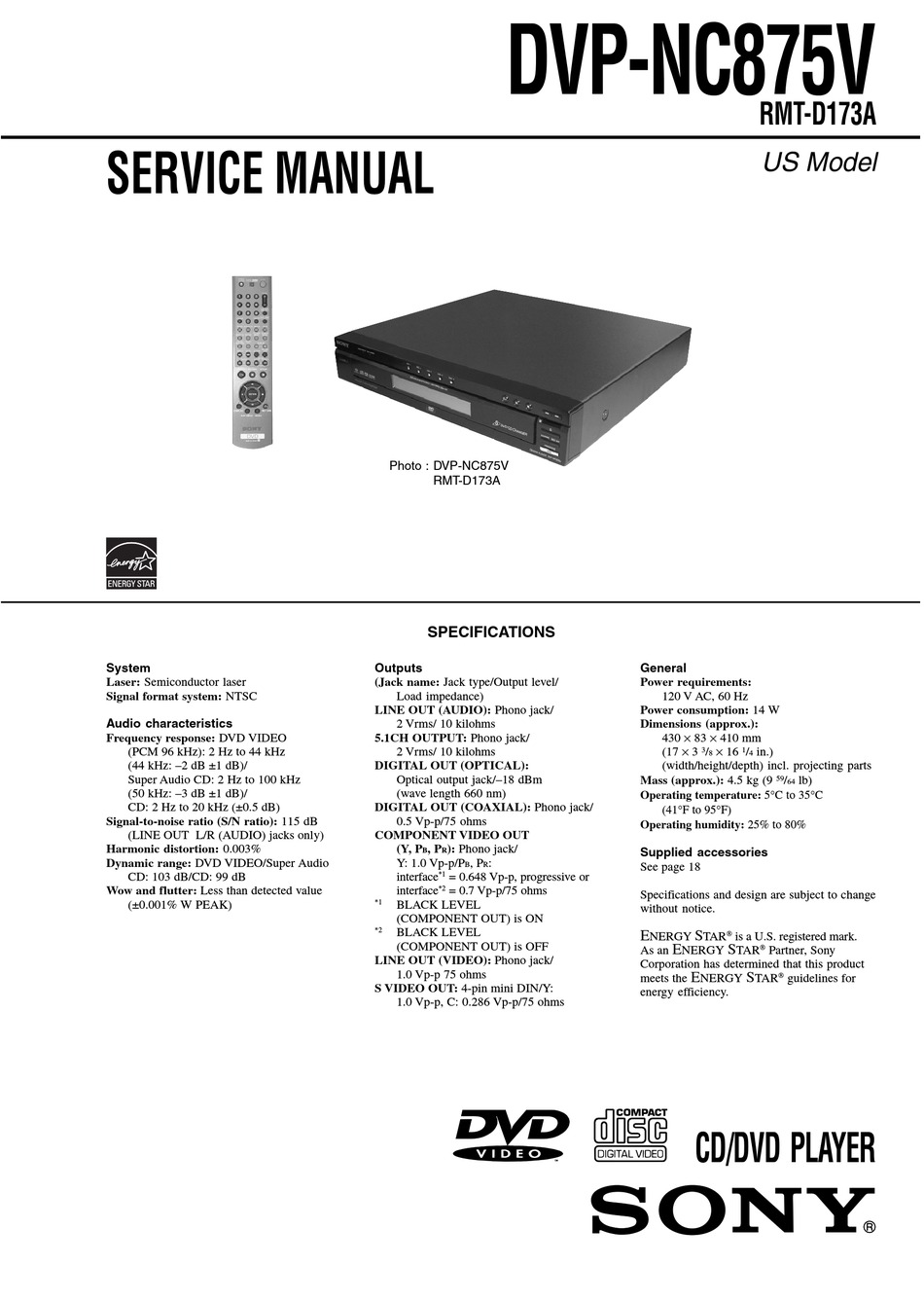

SERVICE MANUAL
System
Laser: Semiconductor laser
Signal format system: NTSC
Audio characteristics
Frequency response: DVD VIDEO
(PCM 96 kHz): 2 Hz to 44 kHz
(44 kHz: –2 dB ±1 dB)/
Super Audio CD: 2 Hz to 100 kHz
(50 kHz: –3 dB ±1 dB)/
CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio (S/N ratio): 115 dB
(LINE OUT L/R (AUDIO) jacks only)
Harmonic distortion: 0.003%
Dynamic range: DVD VIDEO/Super Audio
CD: 103 dB/CD: 99 dB
Wow and flutter: Less than detected value
(±0.001% W PEAK)
DVP-NC875V
Photo : DVP-NC875V
RMT-D173A
SPECIFICATIONS
Outputs
(Jack name: Jack type/Output level/
Load impedance)
LINE OUT (AUDIO): Phono jack/
2 Vrms/ 10 kilohms
5.1CH OUTPUT: Phono jack/
2 Vrms/ 10 kilohms
DIGITAL OUT (OPTICAL):
Optical output jack/–18 dBm
(wave length 660 nm)
DIGITAL OUT (COAXIAL): Phono jack/
0.5 Vp-p/75 ohms
COMPONENT VIDEO OUT
(Y, P
, P
): Phono jack/
B
R
Y: 1.0 Vp-p/P
, P
:
B
R
*1
interface
= 0.648 Vp-p, progressive or
interface
*2
= 0.7 Vp-p/75 ohms
*1
BLACK LEVEL
(COMPONENT OUT) is ON
*2
BLACK LEVEL
(COMPONENT OUT) is OFF
LINE OUT (VIDEO): Phono jack/
1.0 Vp-p 75 ohms
S VIDEO OUT: 4-pin mini DIN/Y:
1.0 Vp-p, C: 0.286 Vp-p/75 ohms
RMT-D173A
US Model
General
Power requirements:
120 V AC, 60 Hz
Power consumption: 14 W
Dimensions (approx.):
430 × 83 × 410 mm
(17 × 3
× 16
3
/
1
/
in.)
8
4
(width/height/depth) incl. projecting parts
Mass (approx.): 4.5 kg (9
59
/
lb)
64
Operating temperature: 5°C to 35°C
(41°F to 95°F)
Operating humidity: 25% to 80%
Supplied accessories
See page 18
Specifications and design are subject to change
without notice.
E
S
NERGY
TAR
is a U.S. registered mark.
E
S
As an
NERGY
TAR
Partner, Sony
Corporation has determined that this product
E
S
meets the
NERGY
TAR
guidelines for
energy efficiency.
CD/DVD PLAYER
